MAŠĪNAS KRĀNS ZILS M4X0,7 DIN371C HSSE

Description

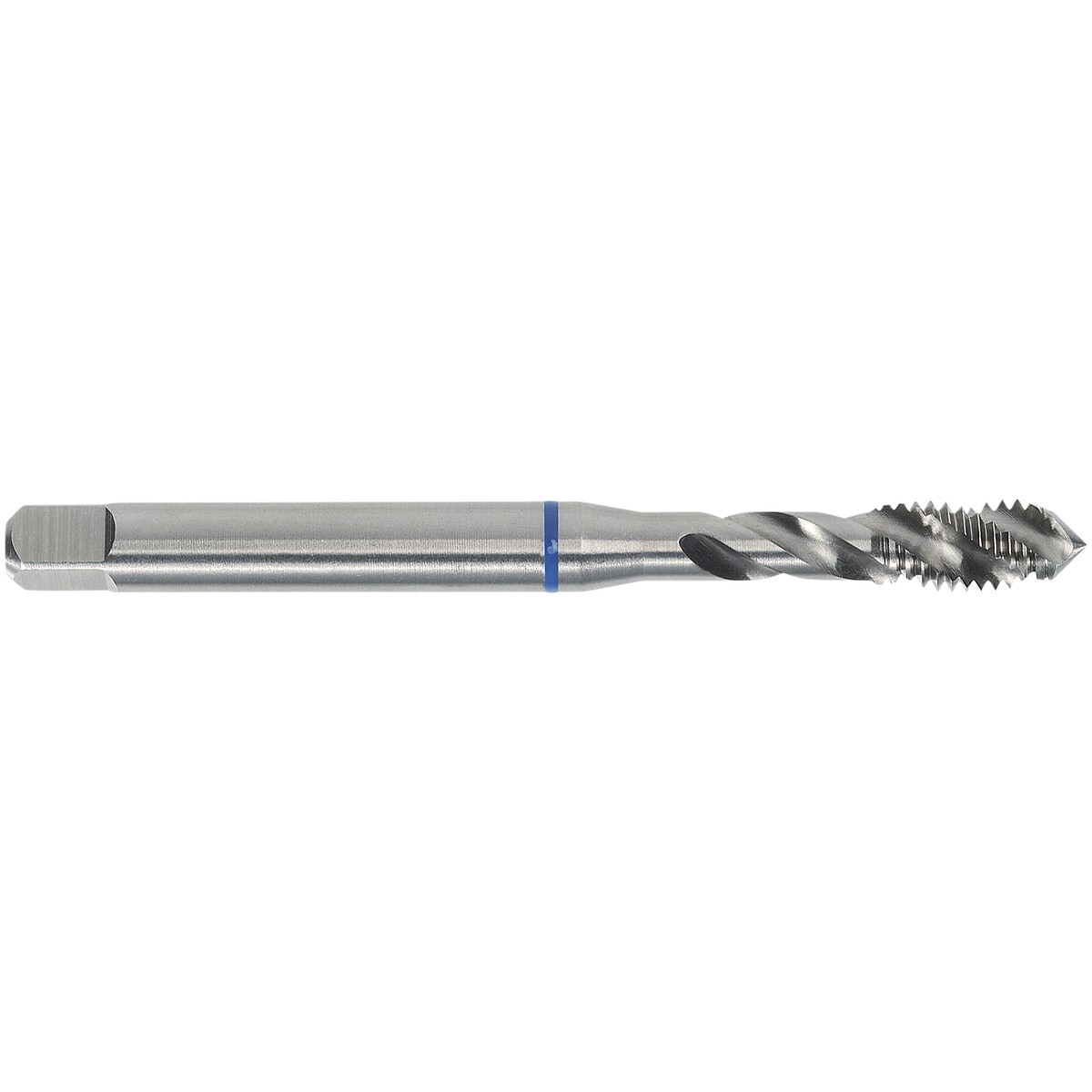

HSS-E machine tap, spiral fluted (DIN 371, form C) for blind hole threads | suitable for high-alloy steels and stainless steels (short chipping) approx. 1200 N/mm² | metric ISO-thread DIN 13 | size (d1) M4 x 0.7 | overall length (l1) 63 mm | thread length (l2) 7 mm | diameter (d2) 4.5 mm | shank (a) 3.4 mm | recommended drill bit Ø 3.3 mm

Attributes

Thread: M4 x 0,7 | Package length (cm): 7.5 | Package width (cm): 9.8 | Package height (cm): 0.9 | Gross weight (kg): 0.011000 | EAN: 4022835364306
