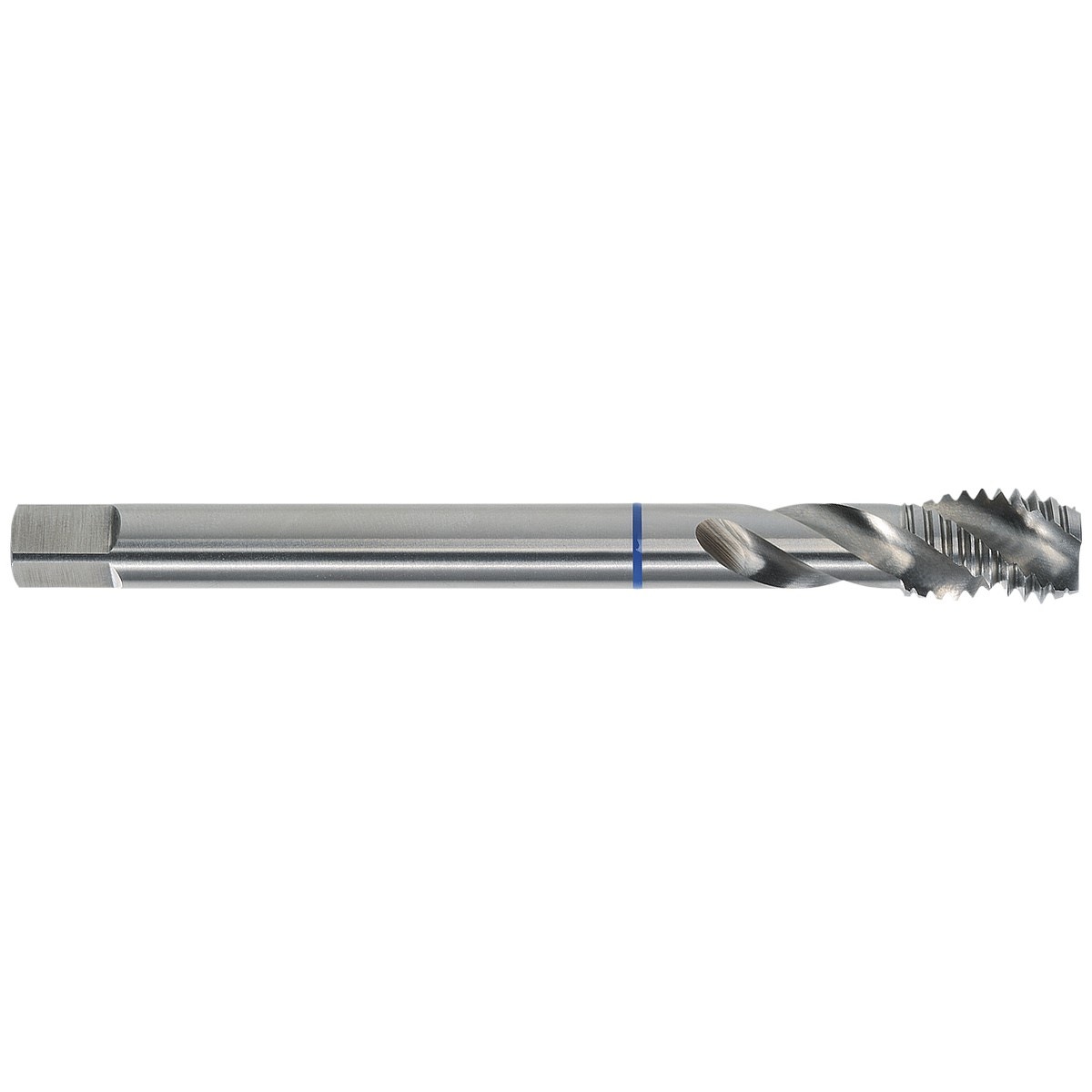

MAŠĪNAS KRĀNS ZILS M20X2,5 DIN376C HSSE

Description

HSS-E machine tap, spiral fluted (DIN 376, form C) for blind hole threads | suitable for high-alloy steels and stainless steels (short chipping) approx. 1200 N/mm² | metric ISO-thread DIN 13 | size (d1) M20 x 2.5 | overall length (l1) 140 mm | thread length (l2) 25 mm | diameter (d2) 16 mm | shank (a) 12 mm | recommended drill bit Ø 17.5 mm

Attributes

Thread: M20 x 2,5 | Package length (cm): 7 | Package width (cm): 16.5 | Package height (cm): 2.9 | Gross weight (kg): 0.208000 | EAN: 4022835364665
