MAŠĪNAS KRĀNS ZILS M18X2,5 DIN376C HSSE

Description

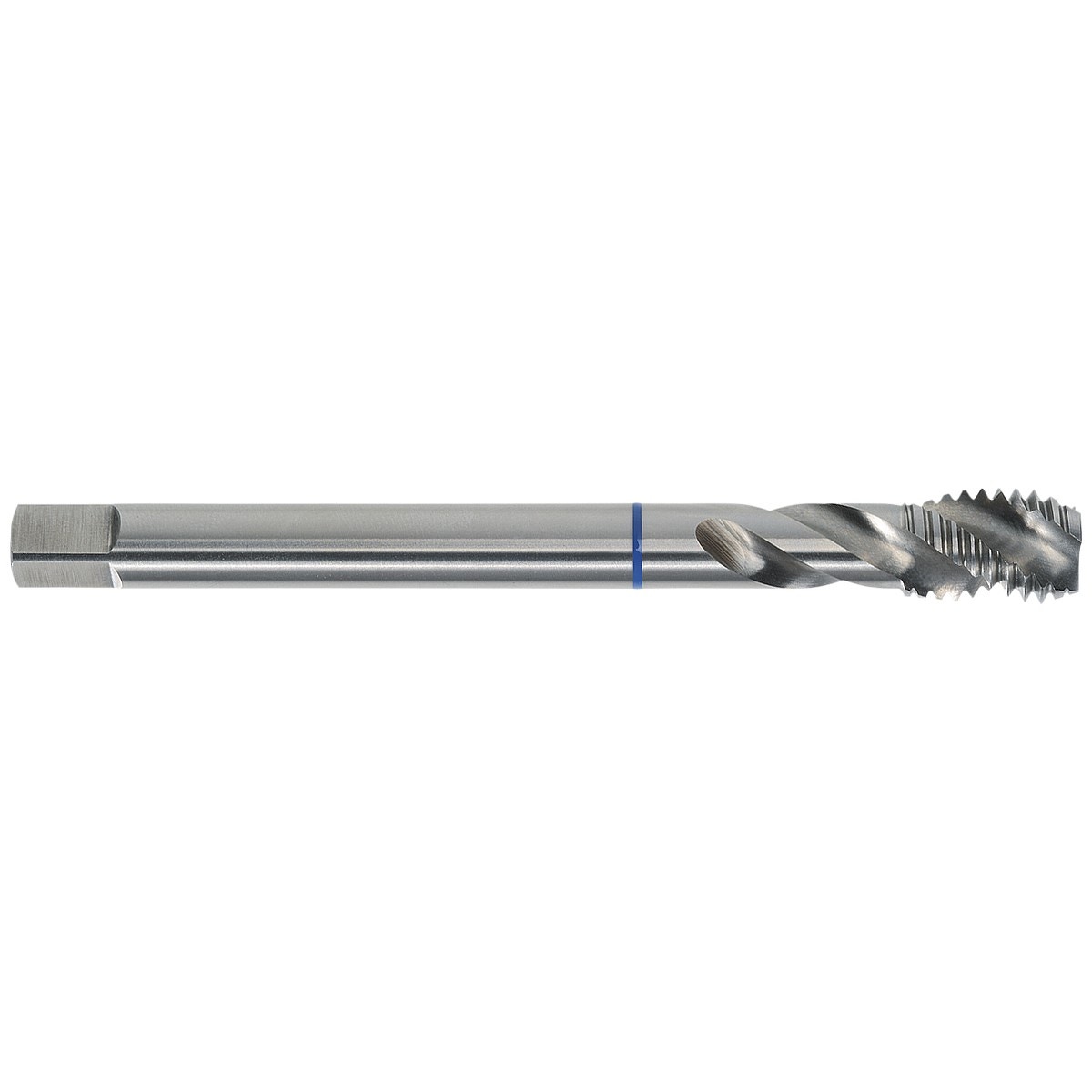

HSS-E machine tap, spiral fluted (DIN 376, form C) for blind hole threads | suitable for high-alloy steels and stainless steels (short chipping) approx. 1200 N/mm² | metric ISO-thread DIN 13 | size (d1) M18 x 2.5 | overall length (l1) 125 mm | thread length (l2) 25 mm | diameter (d2) 14 mm | shank (a) 11 mm | recommended drill bit Ø 15.5 mm

Attributes

Thread: M18 x 2,5 | Package length (cm): 7.5 | Package width (cm): 17 | Package height (cm): 3 | Gross weight (kg): 0.153000 | EAN: 4022835364627
