MAŠĪNAS KRĀNS ZILS M14X2,0 DIN376C HSSE

Description

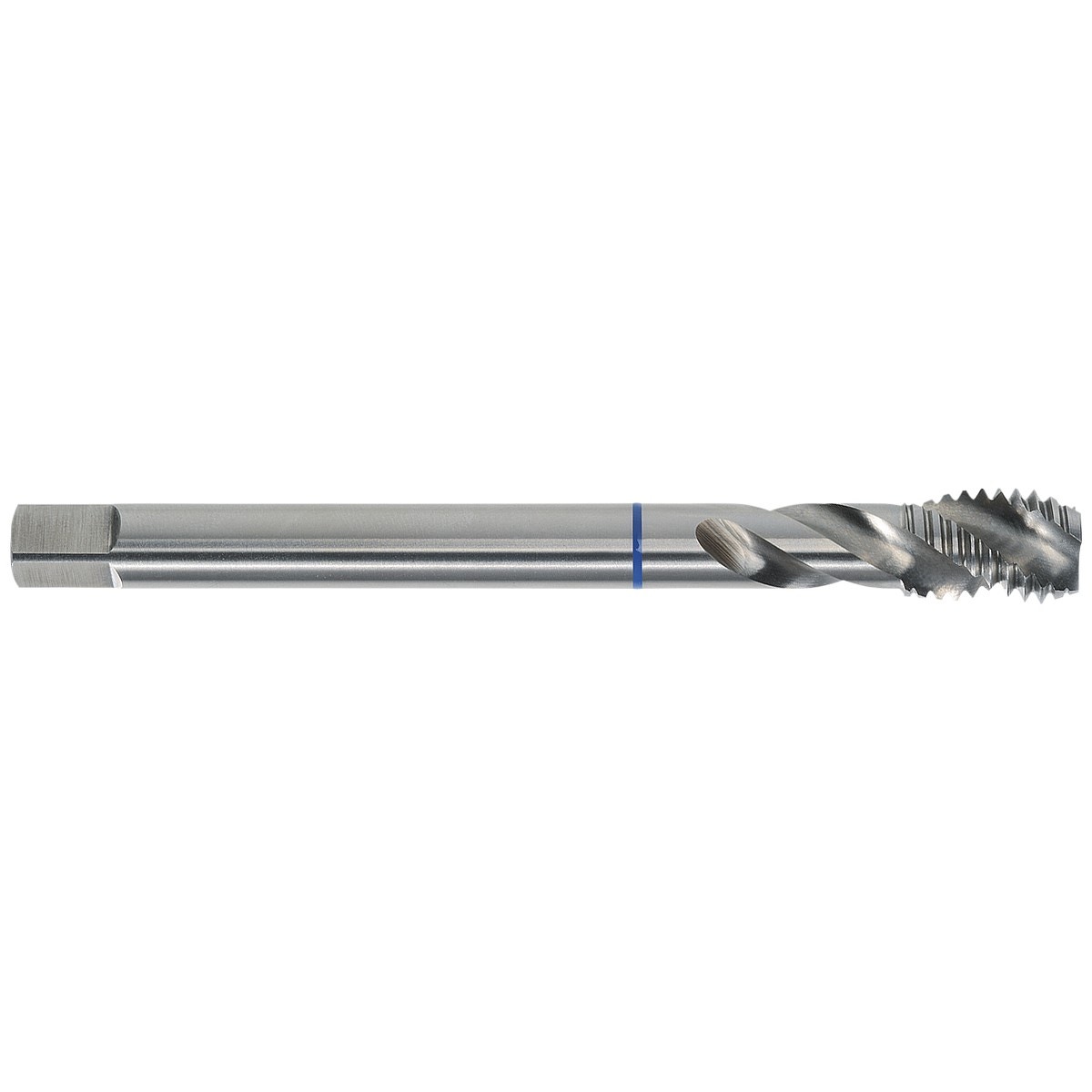

HSS-E machine tap, spiral fluted (DIN 376, form C) for blind hole threads | suitable for high-alloy steels and stainless steels (short chipping) approx. 1200 N/mm² | metric ISO-thread DIN 13 | size (d1) M14 x 2.0 | overall length (l1) 110 mm | thread length (l2) 20 mm | diameter (d2) 11 mm | shank (a) 9 mm | recommended drill bit Ø 12.0 mm

Attributes

Thread: M14 x 2,0 | Package length (cm): 7.8 | Package width (cm): 14.5 | Package height (cm): 2.1 | Gross weight (kg): 0.091000 | EAN: 4022835364542
