MAŠĪNAS KRĀNS ZILS M12X1,75 DIN376B HSSE

Description

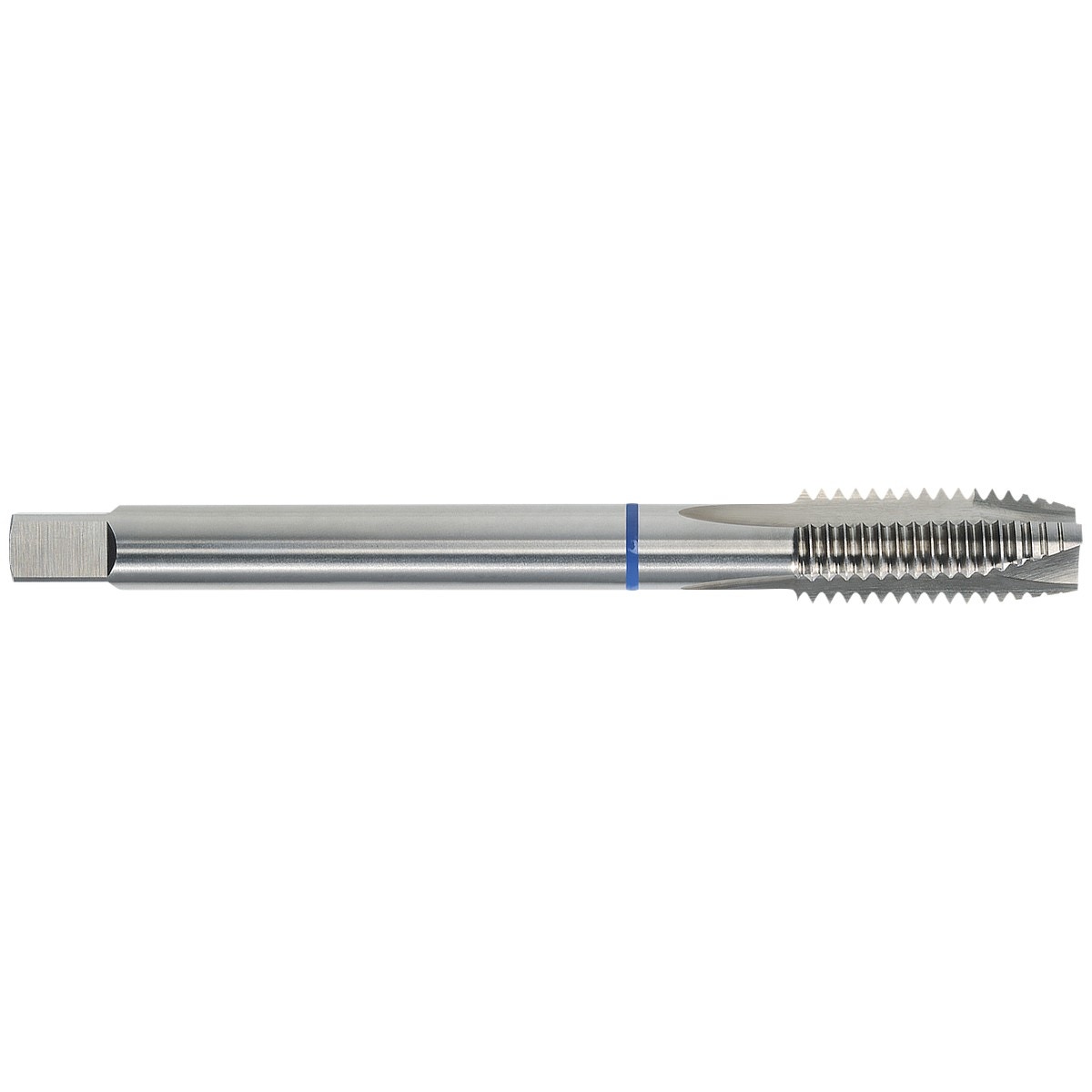

HSS-E machine tap (DIN 376, form B) for through hole threads | suitable for high-alloy steels and stainless steels (short chipping) approx. 1200 N/mm² | metric ISO-thread DIN 13 | size (d1) M12 x 1.75 | overall length (l1) 110 mm | thread length (l2) 29 mm | diameter (d2) 9 mm | shank (a) 7 mm | recommended drill bit Ø 10.2 mm

Attributes

Thread: M12 x 1,75 | Package length (cm): 8 | Package width (cm): 13.5 | Package height (cm): 1.6 | Gross weight (kg): 0.066000 | EAN: 4022835354505
