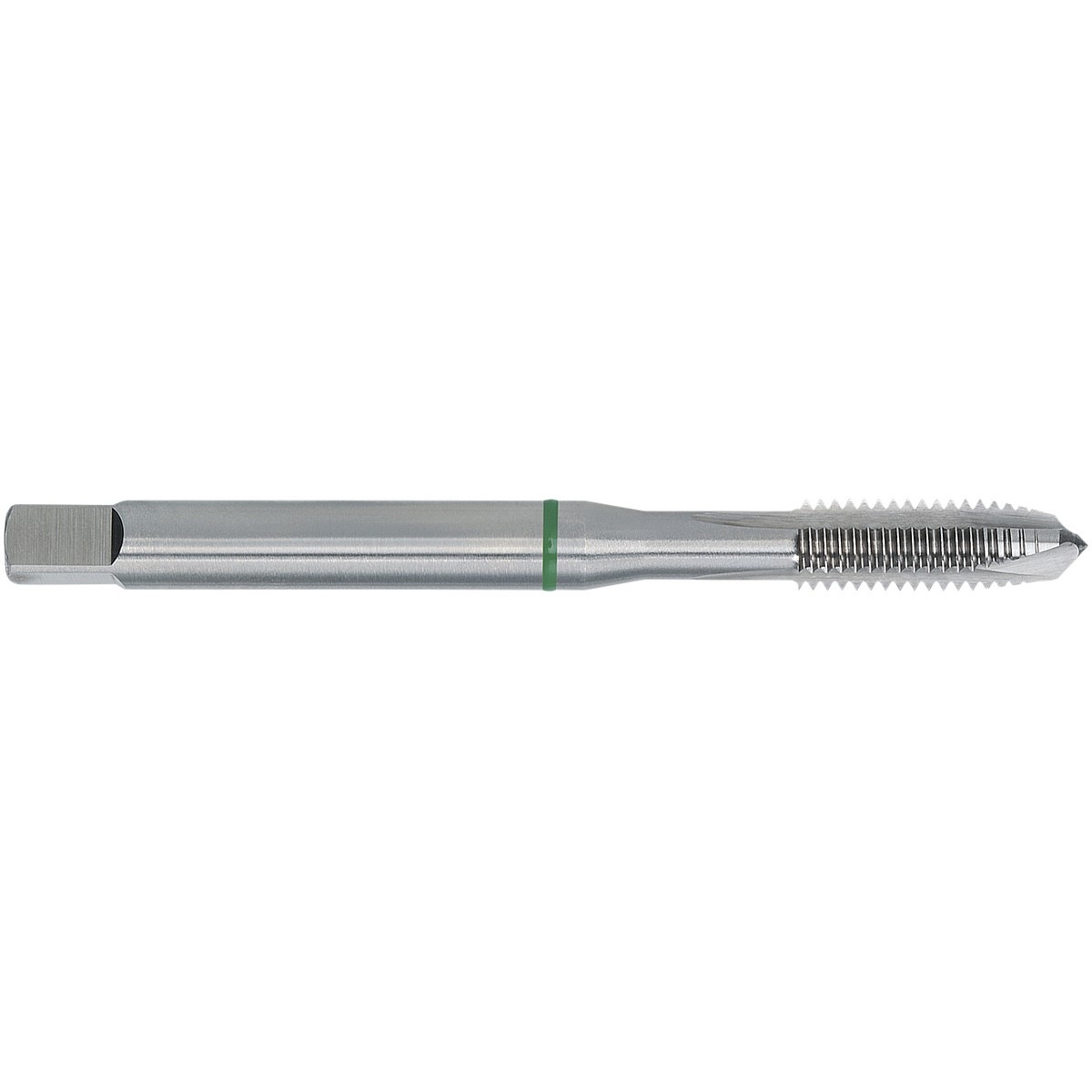

MAŠĪNAS KRĀNS ZAĻŠ M5X0,8 DIN371B HSSE

Description

HSS-E machine tap (DIN 371, form B) for through hole threads | suitable for low alloyed and unalloyed steels up to approx. 1000 N/mm², aluminium alloys (long chipping), copper and copper alloys (long chipping) | metric ISO-thread DIN 13 | size (d1) M5 x 0.8 | overall length (l1) 70 mm | thread length (l2) 16 mm | diameter (d2) 6 mm | shank (a) 4.9 mm | recommended drill bit Ø 4.2 mm

Attributes

Thread: M5 x 0,8 | Package length (cm): 8 | Package width (cm): 11.5 | Package height (cm): 1 | Gross weight (kg): 0.019000 | EAN: 4022835353348
