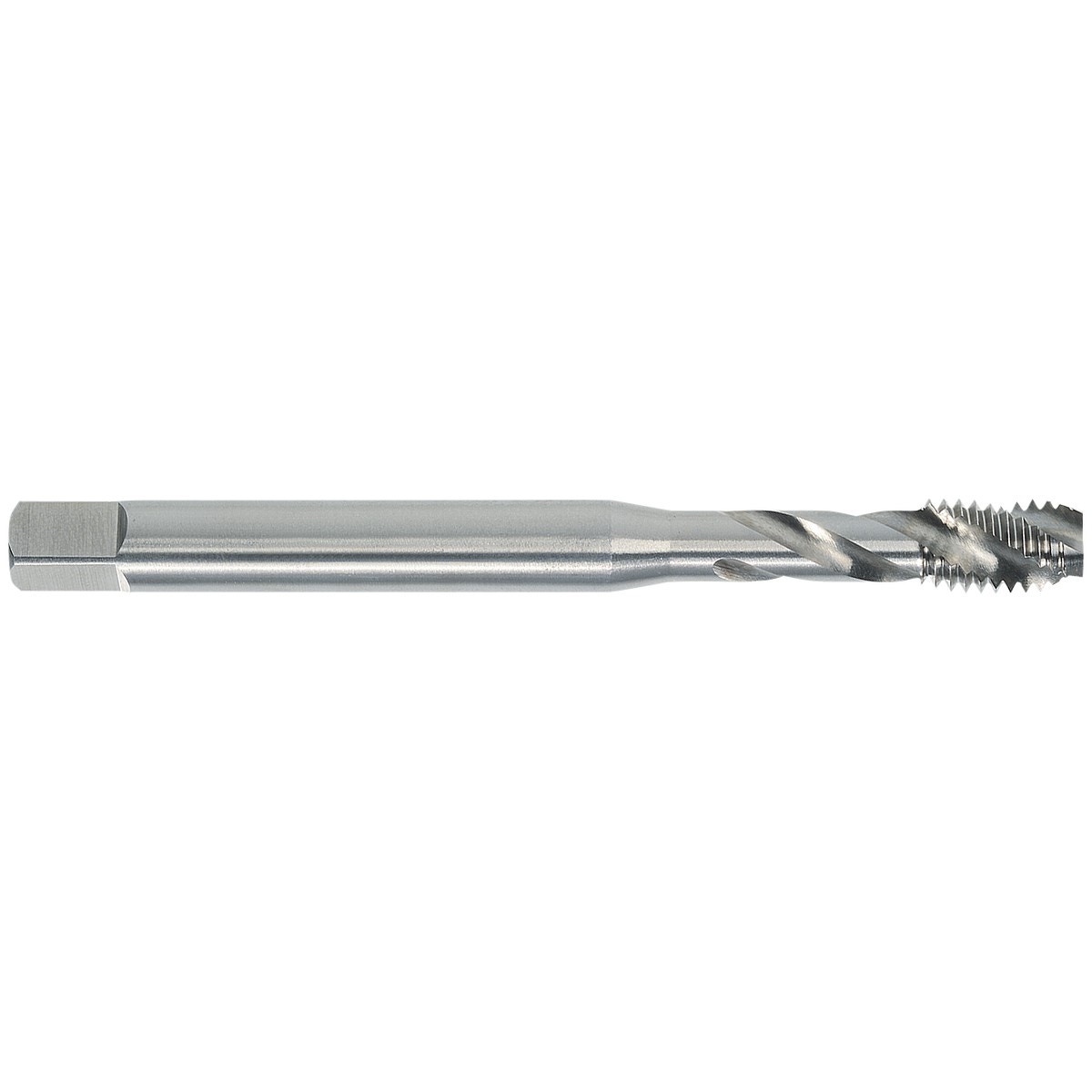

MAŠĪNAS KRĀNS M5X0,8 HSSE DIN371C
16,90 €
Noliktavā 18 prece/-es
✓ Pieejams
Description
HSS-E machine tap, spiral fluted (DIN 371, form C) for blind hole threads | suitable for alloyed and unalloyed steels up to appr. 900 N/mm² | metric ISO-thread DIN 13 | size (d1) M5 x 0.8 | overall length (l1) 70 mm | thread length (l2) 8 mm | diameter (d2) 6 mm | shank (a) 4.9 mm | recommended drill bit Ø 4.2 mm
Attributes
Thread: M5 x 0,8 | Package length (cm): 21 | Package width (cm): 8 | Package height (cm): 0.9 | Gross weight (kg): 0.018000 | EAN: 4022835377344
