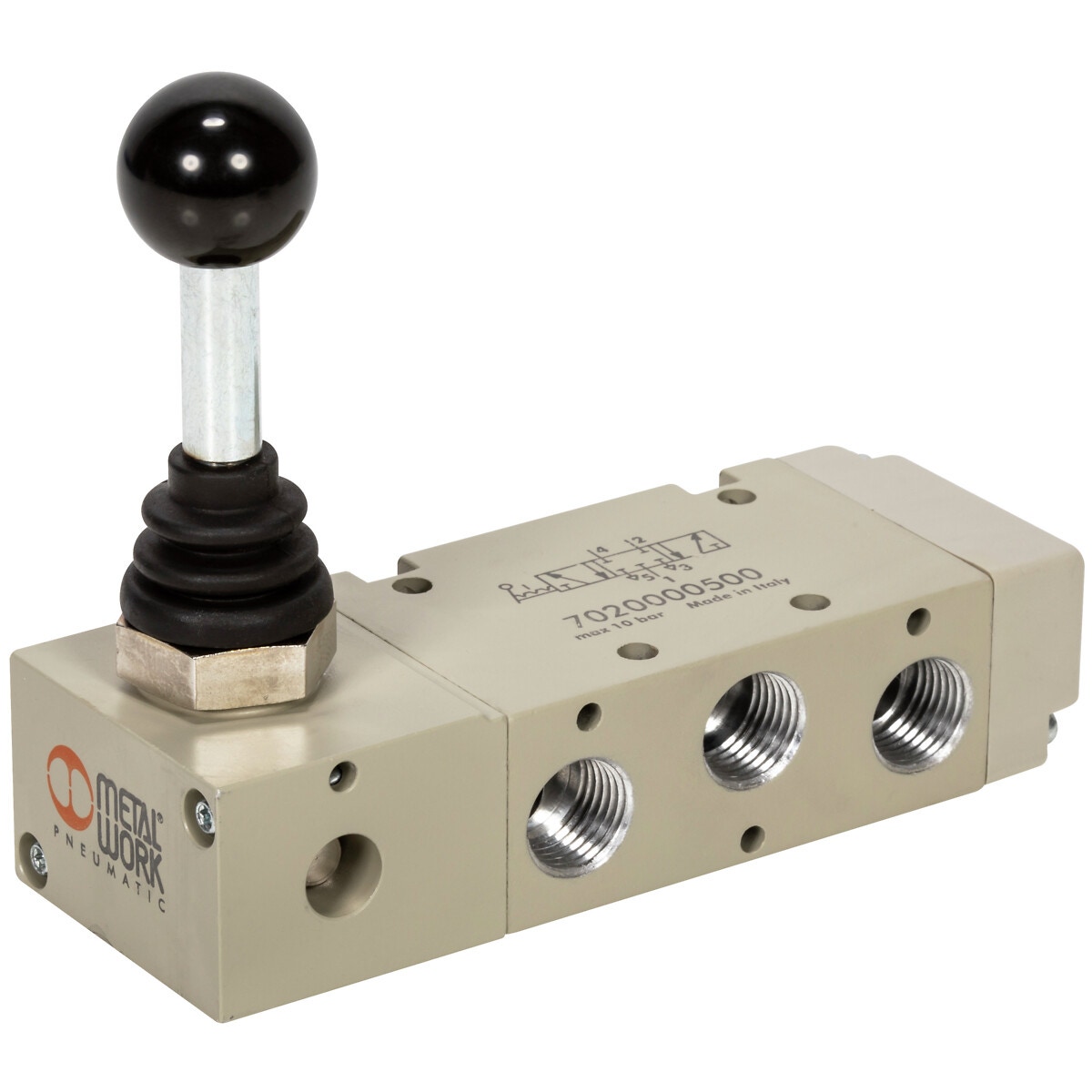

MANUĀLAIS VĀRSTS 5/3 1/4 90 MAV36LEOCC

Description

70 MAV series | material body aluminium, spool chemically nickel-plated aluminium, seals NBR | thread G 1/4" | operating pressure 0.99 – 10 bar (direct control) / 2.5 – 10 bar (pilot-assisted) | flow rate at 6 bar (pressure drop 0,5 bar) 750 Nl/min | flow rate at 6 bar (pressure drop 1,0 bar) 1100 Nl/min | operating temperature -10…+60 °C | fluid: lubricated or unlubricated filtered air | family MAV: manual valves | size 3: 1/4" | function 6: 5/3 | operators 14 LE: 90° lever | resetting 12 O: stable for 5/3 | further details CC: closed centres

Attributes

Thread: G 1/4" -19 | Package length (cm): 31 | Package width (cm): 9 | Package height (cm): 9 | Gross weight (kg): 0.376000 | EAN: 8024986170696
