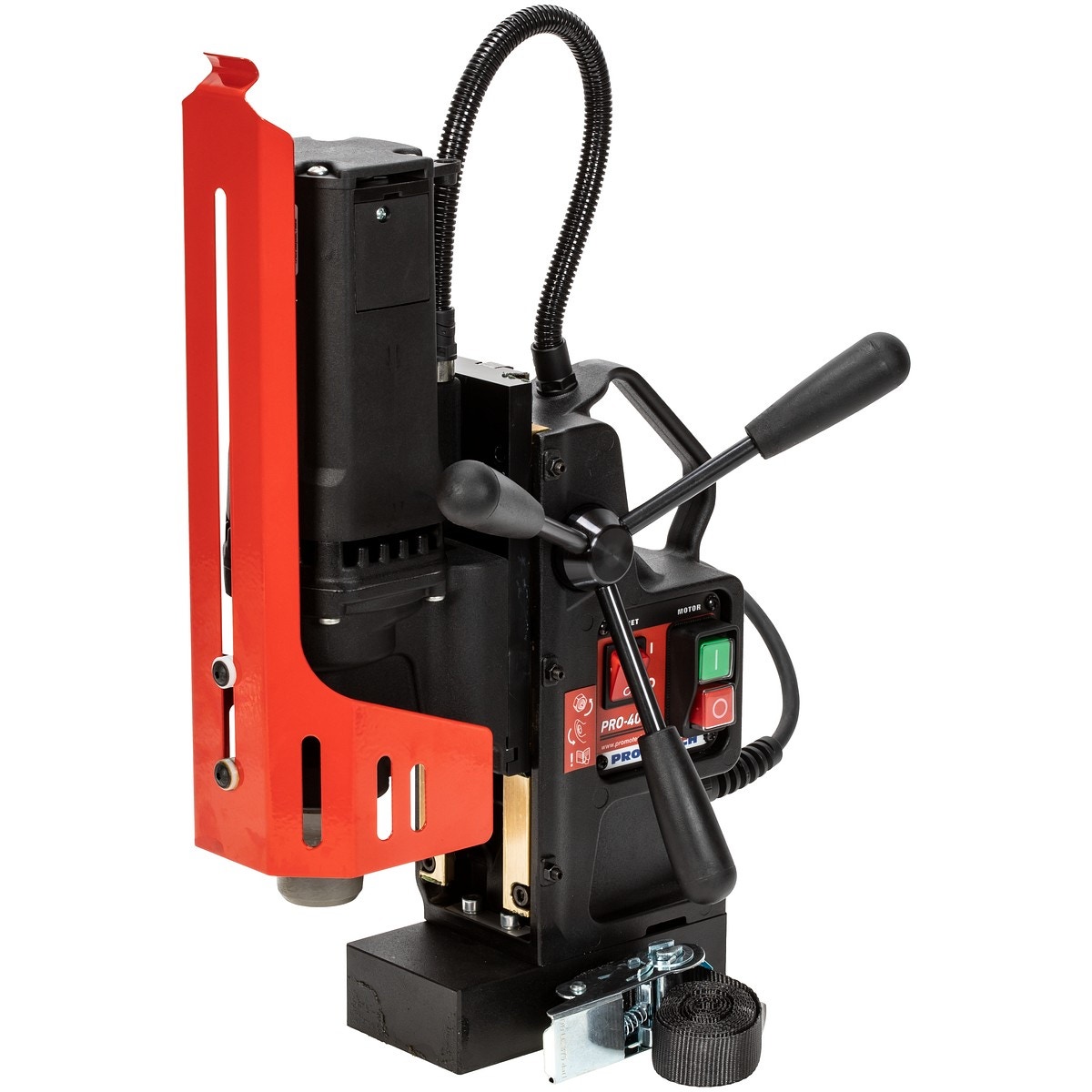

MAGNĒTISKAIS URBIS PRO-40 1100W MAX 40MM 230V

Description

compact and durable construction | long stroke allows the use of long tools | gear box and slide system made of one piece | maintenance friendly design | maintenance free rail guide system | magnetic field shape control system (MFSC) | magnetic power adhesion control module (MPAC) | energy saving base (ESB) | power 1100 W / 230 V | speed under load 440 rpm | max. milling capacity 40 mm | max. twist drill Ø 16 mm | max. countersinking Ø 40 mm | stroke 160 mm | max. drilling depth 50 mm | min. workpiece thickness 6 mm | magnetic clamping force 9900 N | dimensions 84 x 168 x 41.5 mm | tool holder 19 mm (3/4") Weldon | weight 13 kg

Attributes

Package length (cm): 18.5 | Package width (cm): 59.5 | Package height (cm): 48.5 | Gross weight (kg): 17.540000 | EAN: 6418914058965
