Lodveida vārsts 40 mm pps1

Description

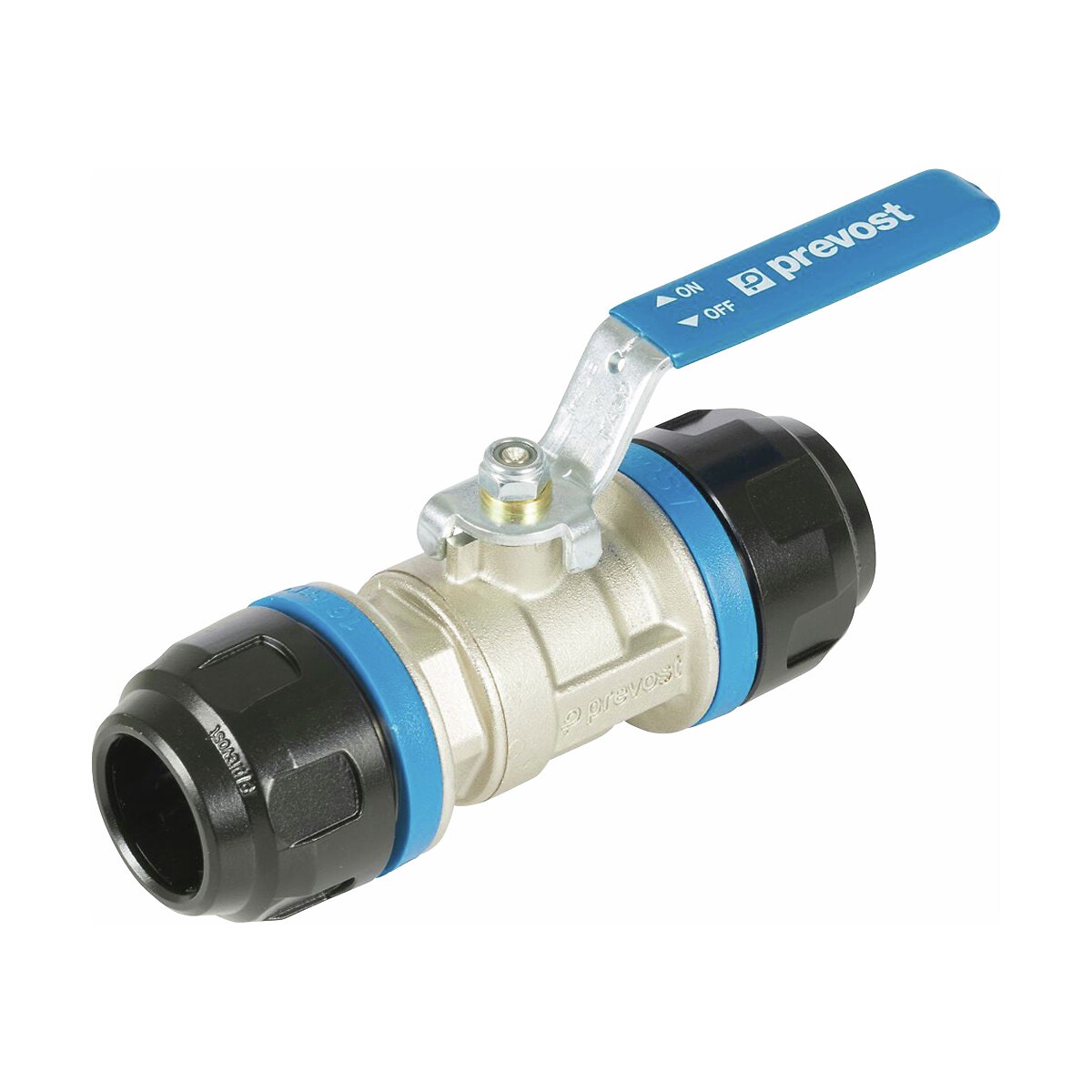

Prevost piping ball valve PPS1 RSI | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leaktightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leaktight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | pipe outer diameter Ø 40 mm | A 68 mm | B 202 mm | C 99,1 mm

Attributes

Package length (cm): 15.5 | Package width (cm): 19 | Package height (cm): 10.4 | Gross weight (kg): 1.524000 | EAN: 3660058317023
