LODVEIDA VĀRSTS 16MM-G1/2 ĀRĒJAIS PPS1

Description

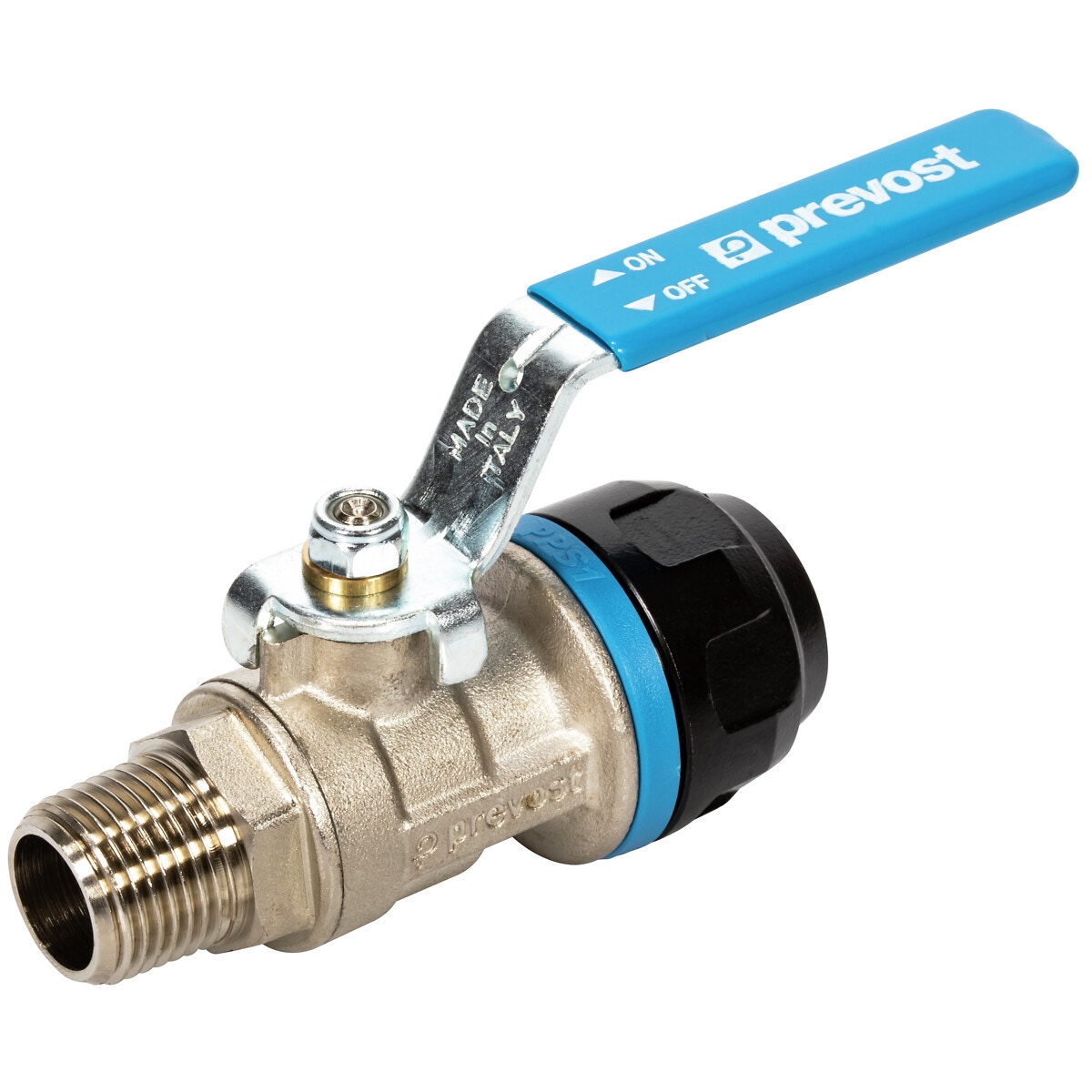

Prevost parallel male thread valve with fitting for pipe PPS1 RSIM | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leak tightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leak tight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | pipe outer diameter Ø 16 mm | thread BSPT 1/2" | A 32 mm | B 130 mm | C 64 mm | D 24 mm

Attributes

Thread: R 1/2" -14 | Package length (cm): 4 | Package width (cm): 15.1 | Package height (cm): 8.1 | Gross weight (kg): 0.266000 | EAN: 3660058304481
