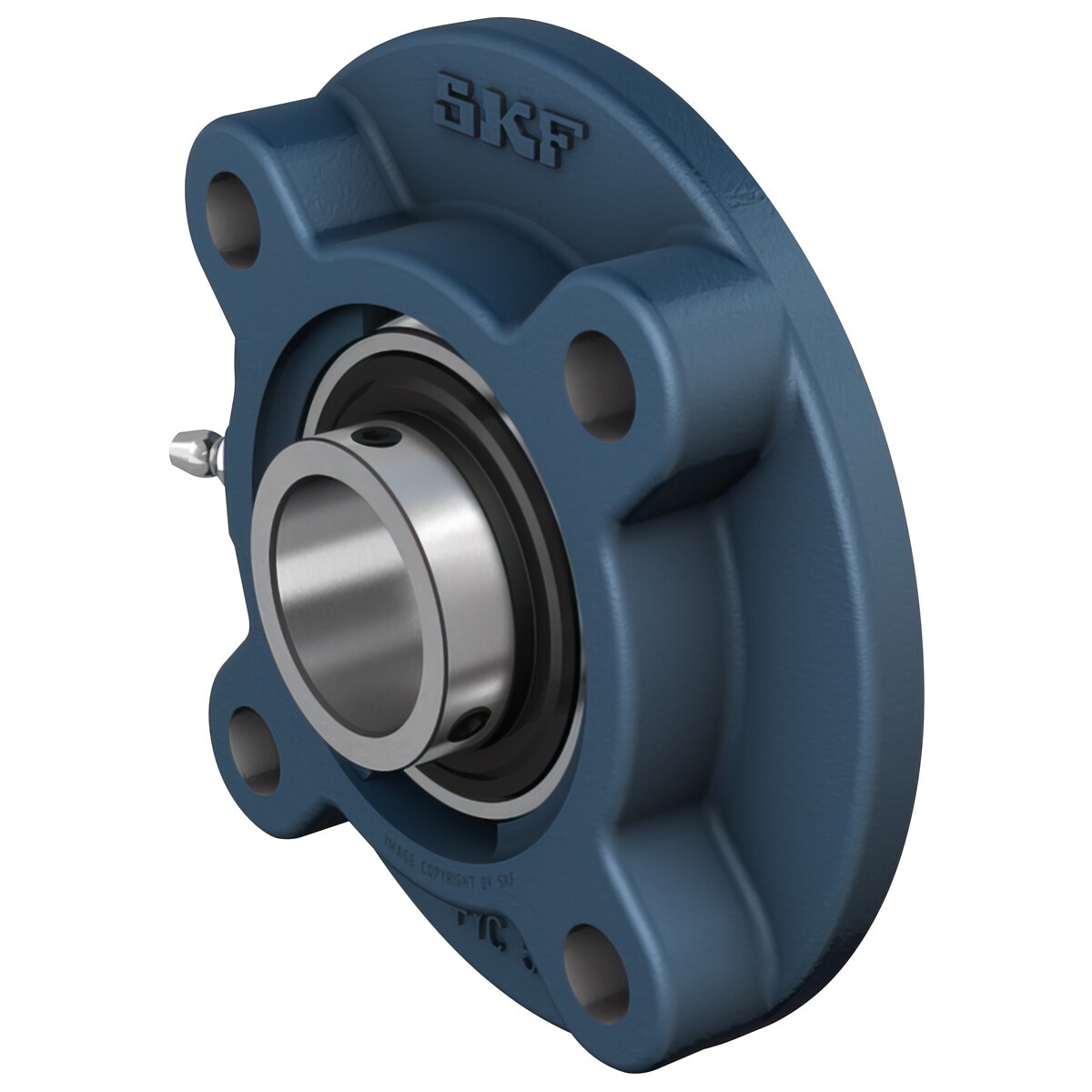

Lodīšu gultņu bloks ar apaļu atloku 50 mm skf

Description

bore diameter (d) 50 mm | outer diameter, inner ring (d1) 62.51 mm | housing width (A) 39 mm | top width (A1) 14 mm | height of spherical seat centre (A3) 12 mm | standout of end cover (A5) 33 mm | width of inner ring (B) 51.6 mm | distance from locking device side face to thread centre (B4) 9 mm | centering diameter (Dc) 110 mm | distance between attachment bolts (J) 138 mm | width of attachment bolt hole (J1) 97.6 mm | overall width (L) 165 mm | length of attachment bolt hole (N) 16 mm | distance from locking device side face to raceway centre (s1) 32.6 mm | overall unit width (T) 42.6 mm | housing thread for the grease fitting (RG) 1/8-27 NPT | axial position of the housing thread (R1) 13 mm | diameter of head sphere of grease fitting (DN) 6.589 mm | hexagonal key size for the grease fitting (SWN) 11.11 mm | thread of the grease fitting (GN) 1/8- 27 NPT | basic dynamic load rating (C) 35.1 kN | basic static load rating (C0) 23.2 kN | fatigue load limit (Pu) 0.98 kN | limiting speed 3300 r/min

Attributes

Inner diameter Ø (mm): 50 | Inner diameter Ø (mm): 50.00 | Package length (cm): 17.5 | Package width (cm): 18 | Package height (cm): 7.1 | Gross weight (kg): 3.012000 | EAN: 7316579751742
