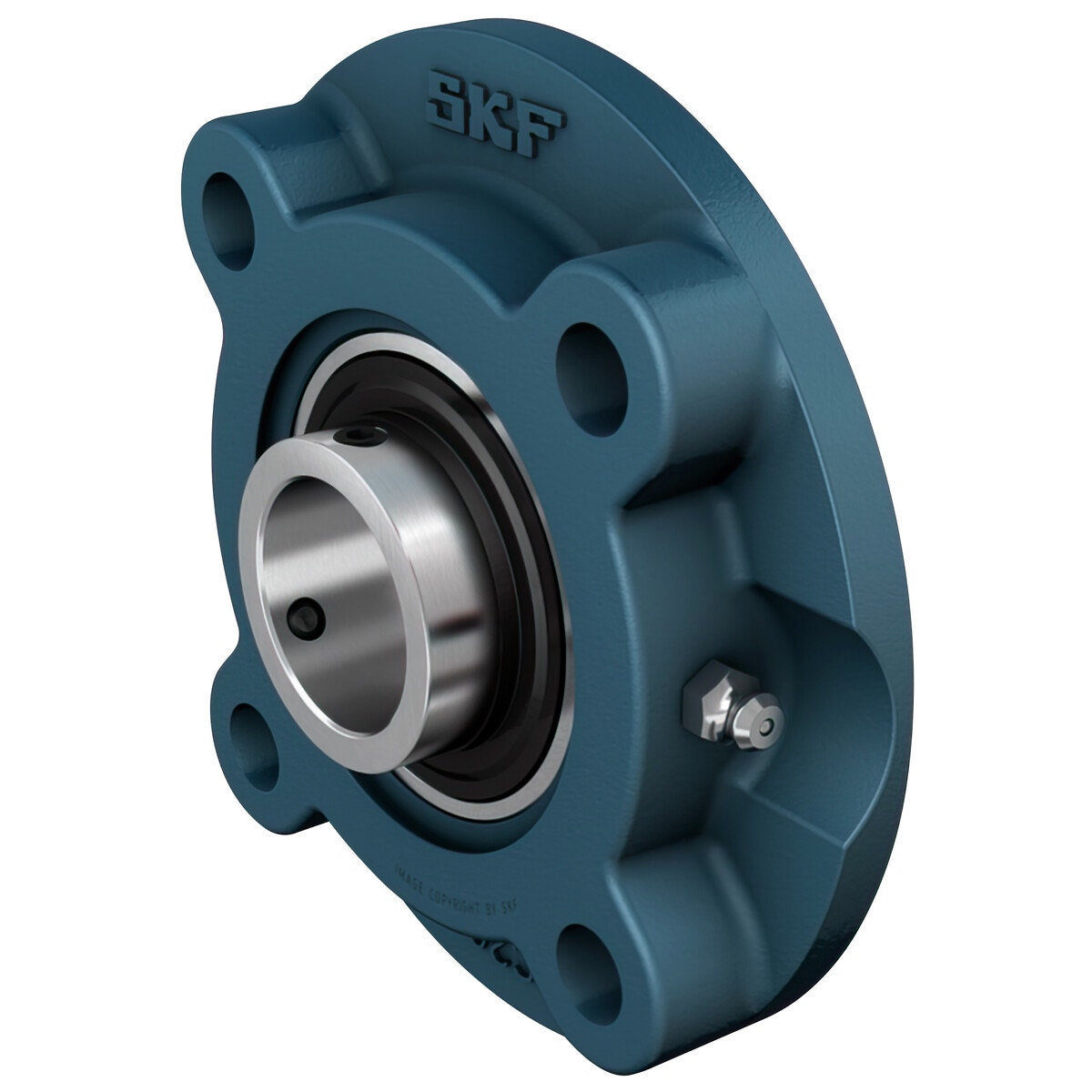

Lodīšu gultņu bloks ar apaļu atloku 30 mm skf

Description

bore diameter (d) 30 mm | outer diameter, inner ring (d1) 39.7 mm | housing width (A) 30 mm | flange width (A1) 8 mm | height of spherical seat centre (A3) 8 mm | standout of end cover (A5) 22.5 mm | width of inner ring (B) 38.1 mm | distance from locking device side face to thread centre (B4) 5 mm | centering diameter (Dc) 80 mm | distance between attachment bolts (J) 100 mm | width of attachment bolt hole (J1) 70.7 mm | overall width (L) 125 mm | length of attachment bolt hole (N) 12 mm | distance from locking device side face to raceway centre (s1) 22.2 mm | overall unit width (T) 32.2 mm | housing thread for the grease fitting (RG) 1/4-28 UNF | axial position of the housing thread (R1) 12.5 mm | diameter of head sphere of grease fitting (DN) 6.6 mm | hexagonal key size for the grease fitting (SWN) 7.94 mm | thread of the grease fitting (GN) 1/4- 28 UNF | basic dynamic load rating (C) 19.5 kN | basic static load rating (C0) 11.2 kN | fatigue load limit (Pu) 0,475 kN | limiting speed 5000 r/min

Attributes

Inner diameter Ø (mm): 30 | Inner diameter Ø (mm): 30.00 | Package length (cm): 14.3 | Package width (cm): 14.6 | Package height (cm): 6.2 | Gross weight (kg): 1.310000 | EAN: 7316579751711
