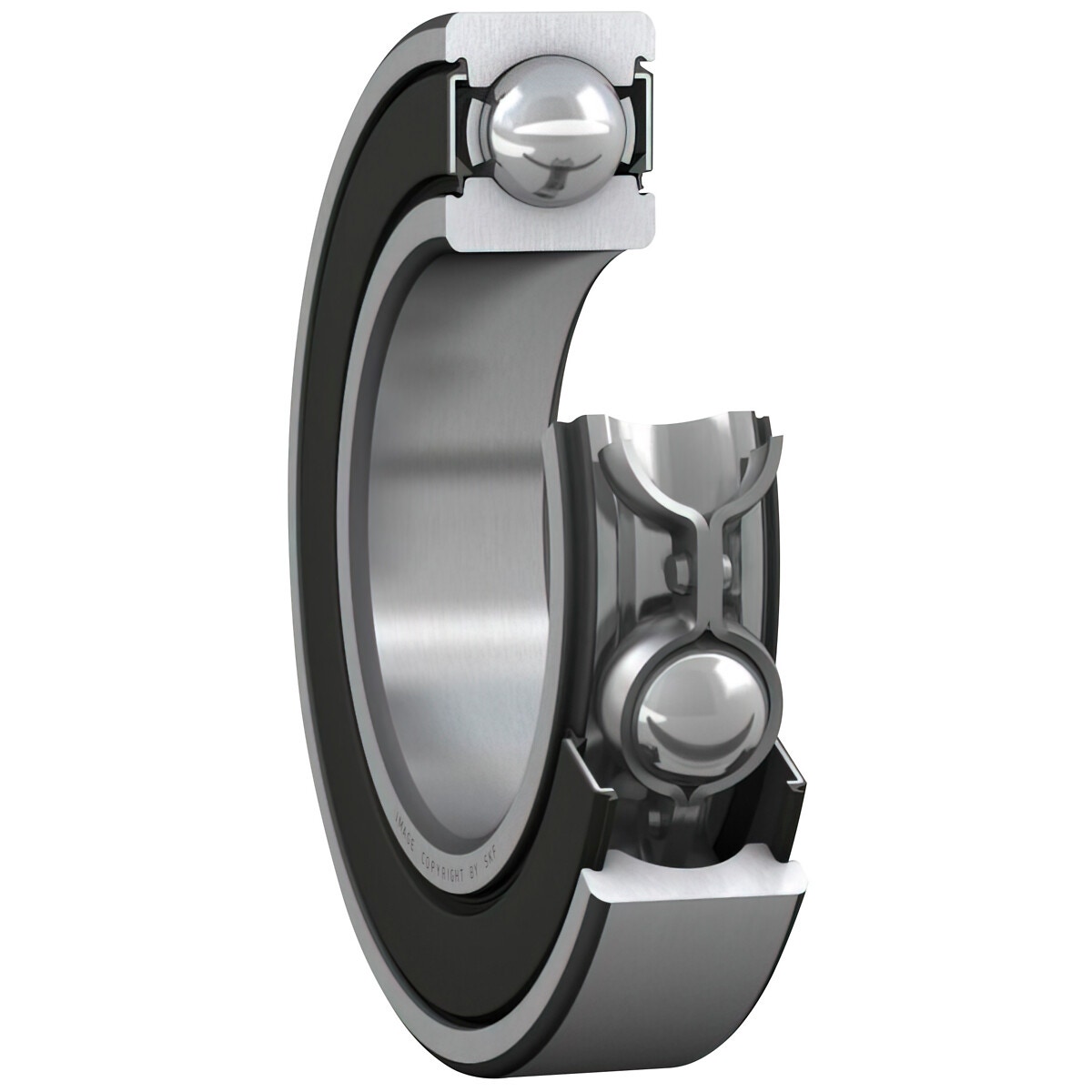

Lodīšu gultnis 8x22x7 skf

Description

bore diameter (d) 8 mm | outer diameter (D) 22 mm | width (B) 7 mm | inner ring abutment recess diameter (d2) 10.55 mm | outer ring abutment recess diameter (D2) 19.2 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 10 mm | abutment shaft diameter (da) max. 10.5 mm | abutment housing diameter (Da) max. 20 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 3.45 kN | basic static load rating (C0) 1.37 kN | fatigue load limit (Pu) 0,057 kN | limiting speed 22000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 12

Attributes

Inner diameter Ø (mm): 8 | Inner diameter Ø (mm): 8.00 | Outer diameter Ø (mm): 22 | Outer diameter Ø (mm): 22.00 | Package length (cm): 2.5 | Package width (cm): 2.5 | Package height (cm): 1 | Gross weight (kg): 0.012000 | EAN: 7316571844145
