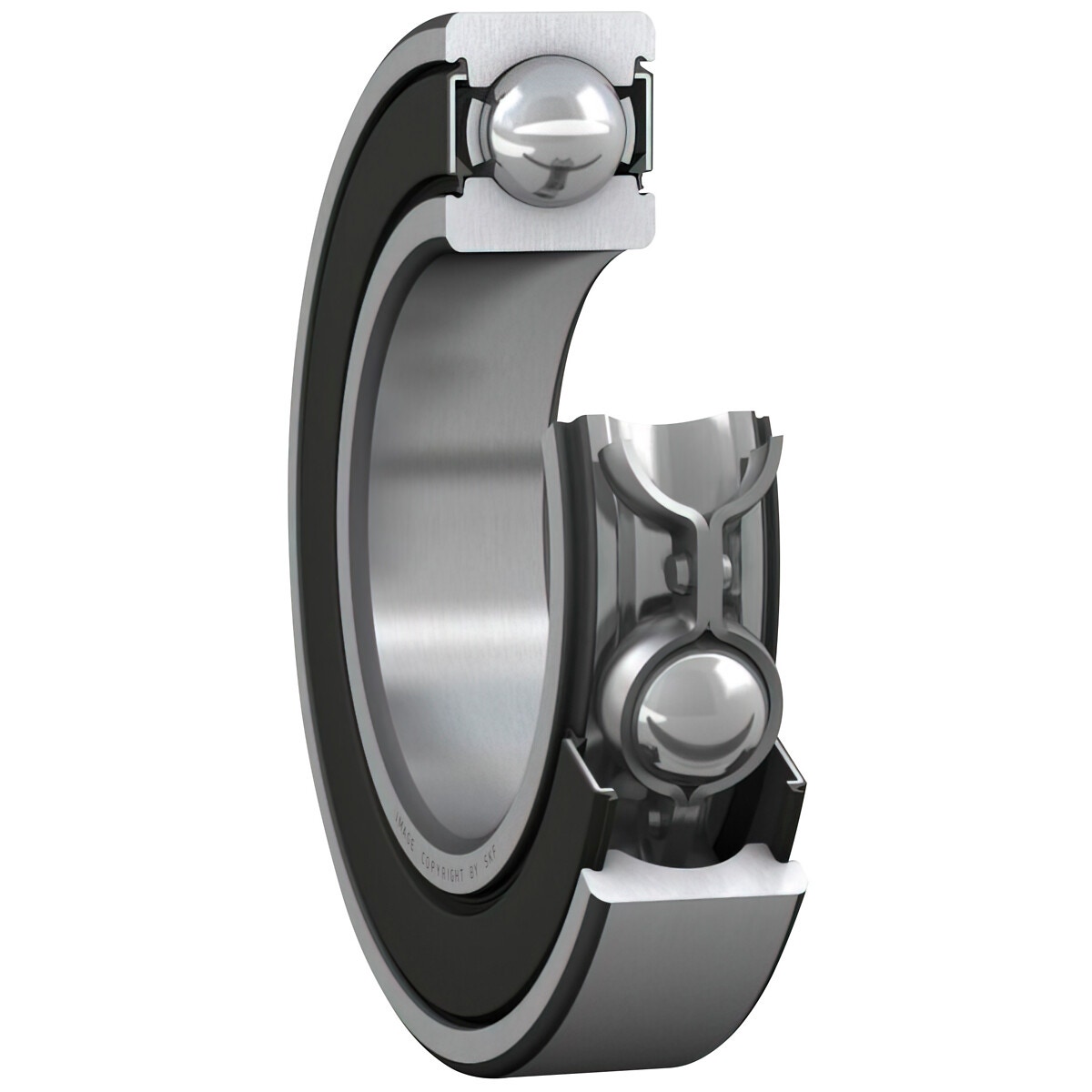

Lodīšu gultnis 17x47x14 skf

Description

bore diameter (d) 17 mm | outer diameter (D) 47 mm | width (B) 14 mm | inner ring recess diameter (d2) 23.4 mm | outer ring abutment recess diameter (D2) 39.58 mm | chamfer dimension (r1,2) min. 1 mm | abutment shaft diameter (da) min. 22.6 mm | abutment shaft diameter (da) max. 23.5 mm | abutment housing diameter (Da) max. 41.4 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 14.3 kN | basic static load rating (C0) 6.55 kN | fatigue load limit (Pu) 0,275 kN | limiting speed 11000 r/min | calculation factor (kr) 0.03 | calculation factor (f0) 12

Attributes

Inner diameter Ø (mm): 17 | Inner diameter Ø (mm): 17.00 | Outer diameter Ø (mm): 47 | Outer diameter Ø (mm): 47.00 | Package length (cm): 5.4 | Package width (cm): 5.6 | Package height (cm): 1.8 | Gross weight (kg): 0.120000 | EAN: 7316572075647
