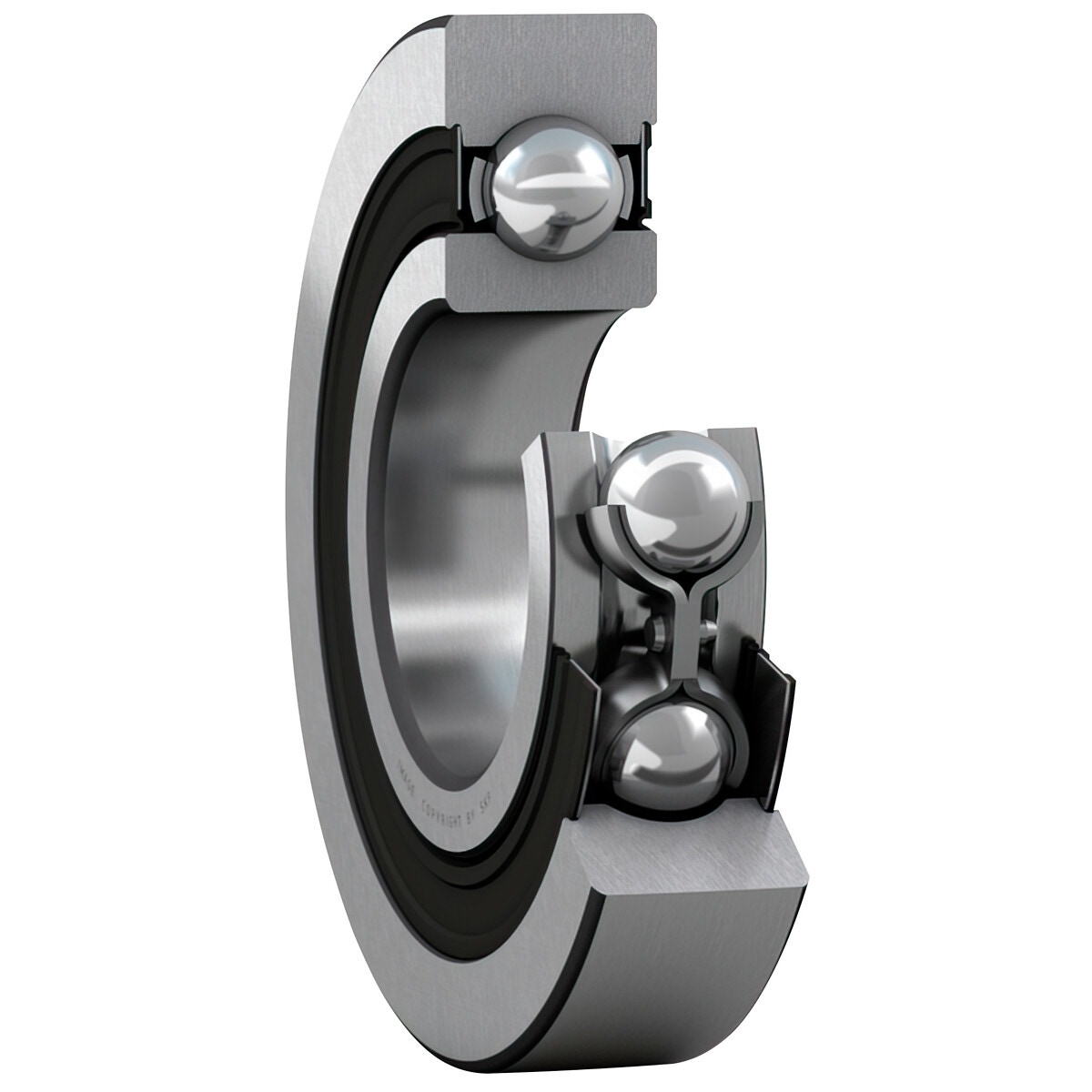

Lodīšu gultnis 12x35x10 skf
36 €
✓ Pieejams
Description
outer diameter (D) 35 mm | bore diameter (d) 12 mm | width (B) 10 mm | shoulder/recess diameter inner ring (d1) 18.4 mm | recess diameter outer ring (D1) 27.4 mm | profile running surface (crown) outer ring (R) 400 mm | chamfer dimension (r1,2) min. 0.6 mm | basic dynamic load rating (C) 6.24 kN | basic static load rating (C0) 2.6 kN | fatigue load limit (Pu) 0,11 kN | maximum dynamic radial load (Fr) max. 3.35 kN | maximum static radial load (F0r) max. 4.75 kN | limiting speed 11000 r/min | calculation factor (f0) 12.2
Attributes
Inner diameter Ø (mm): 12 | Inner diameter Ø (mm): 12.00 | Outer diameter Ø (mm): 35 | Outer diameter Ø (mm): 35.00 | Package length (cm): 4.4 | Package width (cm): 4.7 | Package height (cm): 1.7 | Gross weight (kg): 0.053000 | EAN: 7316570600902
