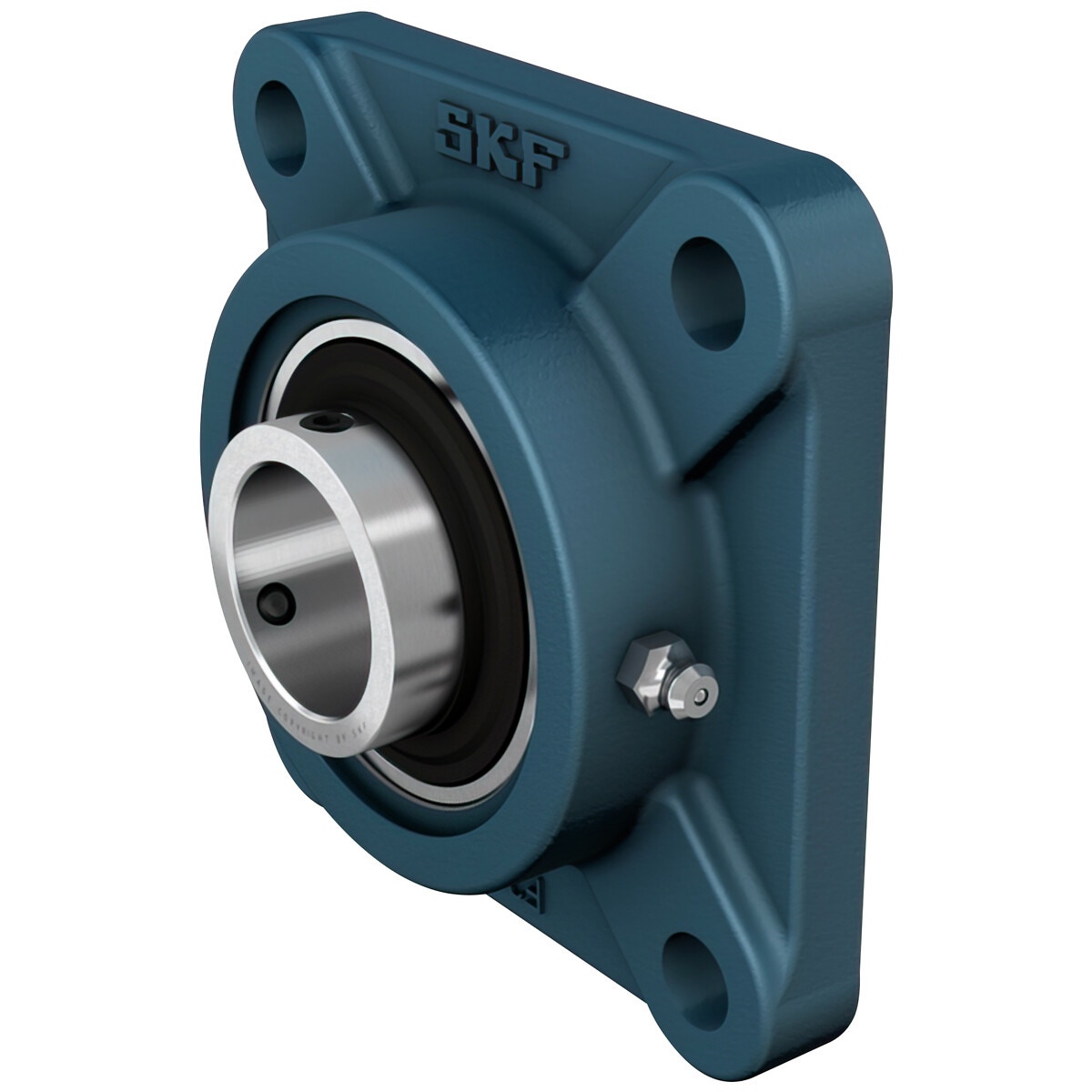

Kvadrātveida atloku lodīšu gultņu bloks 65 mm skf

Description

bore diameter (d) 65 mm | outer diameter, inner ring (d1) 82.5 mm | overall width (A) 50 mm | flange width (A1) 22 mm | standout of end cover (A5) 39 mm | width of inner ring (B) 68.3 mm | distance from locking device side face to thread centre (B4) 10 mm | top external diameter (Db1) 155 mm | distance between attachment bolts (J) 149 mm | overall length (L) 187 mm | diameter of attachment bolt hole (N) 19 mm | distance from locking device side face to raceway centre (s1) 42.9 mm | overall unit width (T) 72.9 mm | diameter of head sphere of grease fitting (DN) 6.589 mm | hexagonal key size for the grease fitting (SWN) 11.11 mm | thread of the grease fitting (GN) 1/8- 27 NPT | housing thread for the grease fitting (RG) 1/8-27 NPT | axial position of the housing thread (R1) 34.5 mm | basic dynamic load rating (C) 57.2 kN | basic static load rating (C0) 40 kN | fatigue load limit (Pu) 1,7 kN | limiting speed 2350 r/min

Attributes

Inner diameter Ø (mm): 65 | Inner diameter Ø (mm): 65.00 | Package length (cm): 19.3 | Package width (cm): 20 | Package height (cm): 8.4 | Gross weight (kg): 5.395000 | EAN: 7316579751636
