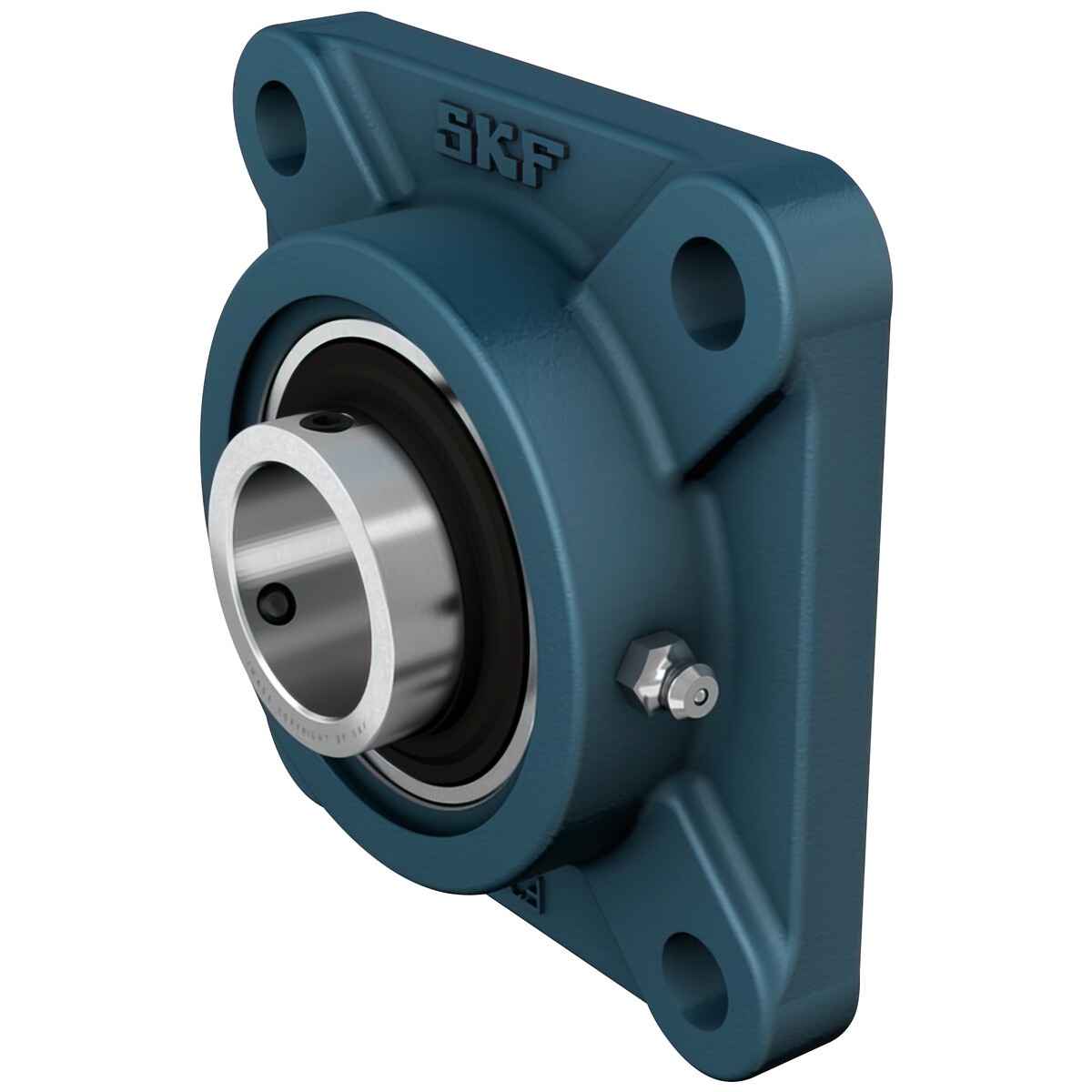

Kvadrātveida atloku lodīšu gultņu bloks 45 mm skf

Description

bore diameter (d) 45 mm | outer diameter, inner ring (d1) 56.8 mm | overall width (A) 38 mm | flange width (A1) 16 mm | standout of end cover (A5) 26.5 mm | width of inner ring (B) 49.2 mm | distance from locking device side face to thread centre (B4) 8 mm | top external diameter (Db1) 108 mm | distance between attachment bolts (J) 105 mm | overall length (L) 137 mm | diameter of attachment bolt hole (N) 16 mm | distance from locking device side face to raceway centre (s1) 30.2 mm | overall unit width (T) 52.2 mm | diameter of head sphere of grease fitting (DN) 6.6 mm | hexagonal key size for the grease fitting (SWN) 7.94 mm | thread of the grease fitting (GN) 1/4- 28 UNF | housing thread for the grease fitting (RG) 1/4-28 UNF | axial position of the housing thread (R1) 26 mm | basic dynamic load rating (C) 33.2 kN | basic static load rating (C0) 21.6 kN | fatigue load limit (Pu) 0.915 kN | limiting speed 3400 r/min

Attributes

Inner diameter Ø (mm): 45 | Inner diameter Ø (mm): 45.00 | Package length (cm): 14.3 | Package width (cm): 14.8 | Package height (cm): 6.7 | Gross weight (kg): 2.134000 | EAN: 7316579751605
