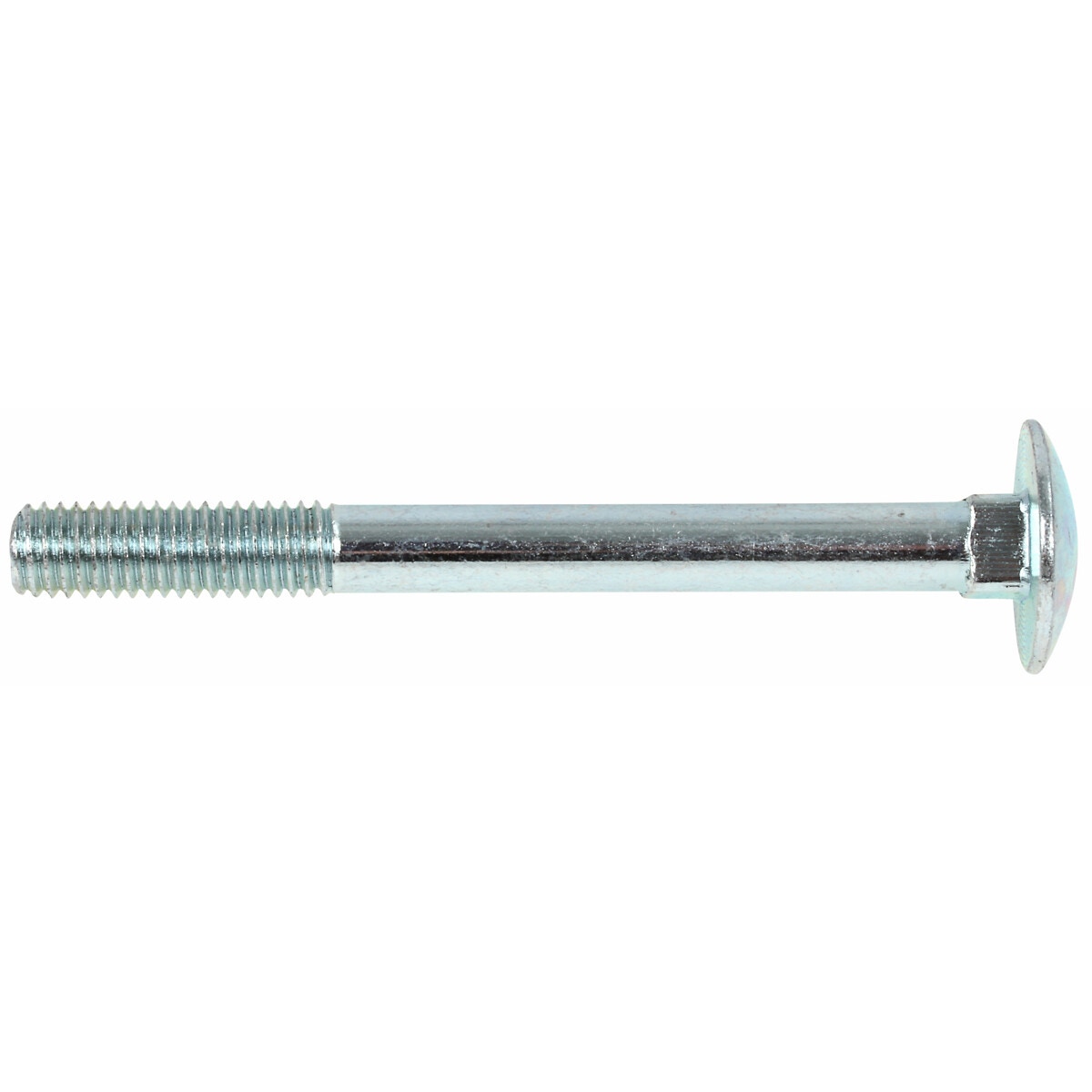

Kravas skrūve m8x60 2gab din603 a2

Description

stainless steel A2 / AISI 304 | DIN 603 carriage bolt | class A2-70 | thread (d) M8 x 1,25 | length (L) 60 mm | thread length (b) min. 22 mm | head diameter (dk) max. 20,65 mm | head height (k) max. 4,88 mm | square neck (V x V x F) max. 8,58 x 8,58 x 5,6 mm | 2 pcs / package

Attributes

Class: Class A2-70 | Thread: M8 x 1,25 | Length (mm): 60 | Length (mm): 60.00 | Material: Stainless steel | Surface: A2 / Aisi 304 | DIN: DIN 603 | Package length (cm): 7.4 | Package width (cm): 2 | Package height (cm): 13.5 | Gross weight (kg): 0.065000 | EAN: 8019725072805
