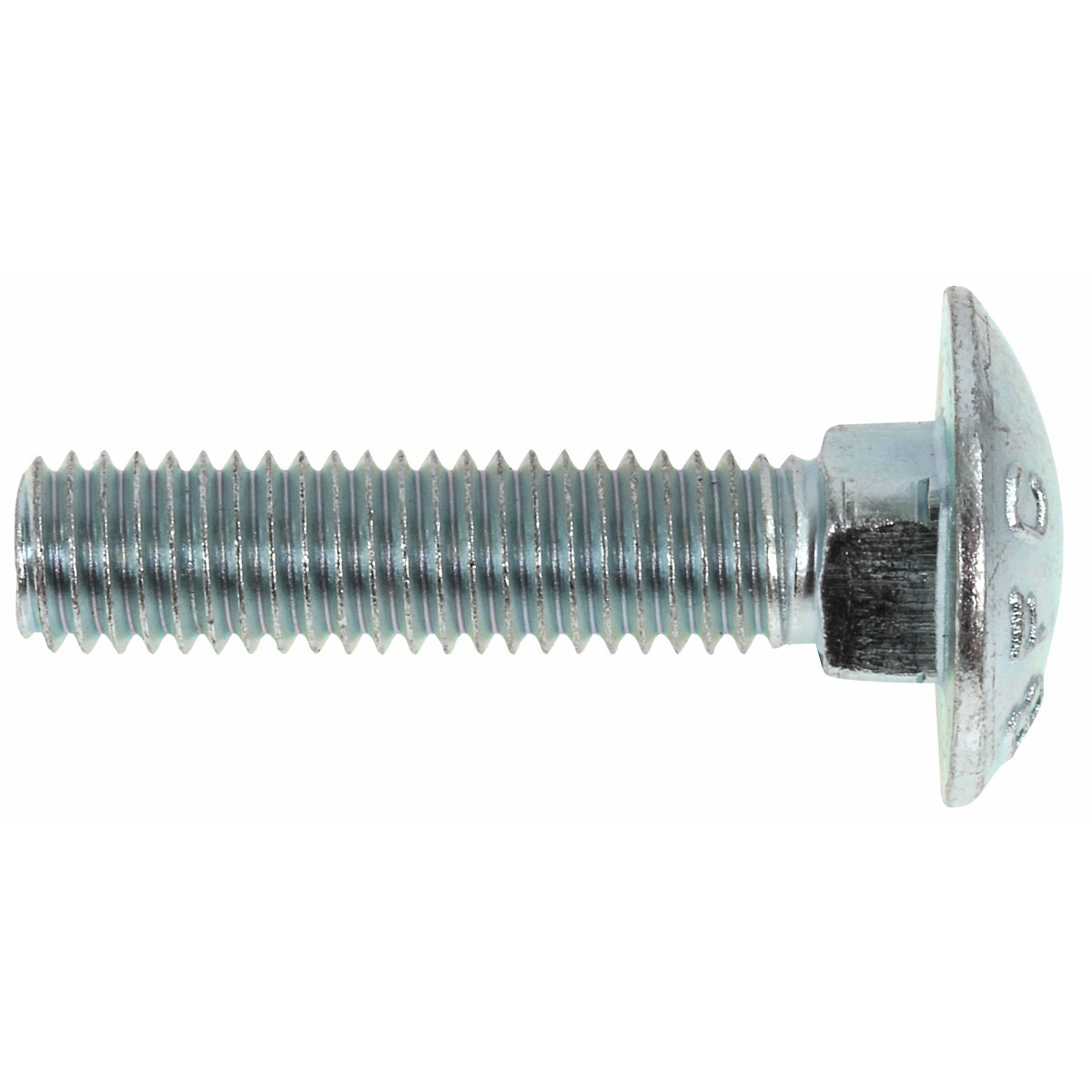

Kravas skrūve m8x20 4.8 200gab din603

Description

zinc plated (Cr3+) | DIN 603 carriage bolt | nuts DIN 555 included (packed in separate bag) | class 4.8 | thread (d) M8 x 1,25 | length (L) 20 mm | thread length (b) min. 22 mm | head diameter (dk) max. 20,65 mm | head height (k) max. 4,88 mm | square neck (V x V x F) max. 8,58 x 8,58 x 5,6 mm | 200 pcs / package

Attributes

Class: Class 4.8 | Thread: M8 x 1,25 | Length (mm): 20 | Length (mm): 20.00 | Material: Steel | Surface: Electro zinc plated | DIN: DIN 603 | Package length (cm): 18 | Package width (cm): 9 | Package height (cm): 9 | Gross weight (kg): 3.636000 | EAN: 5410439036672
