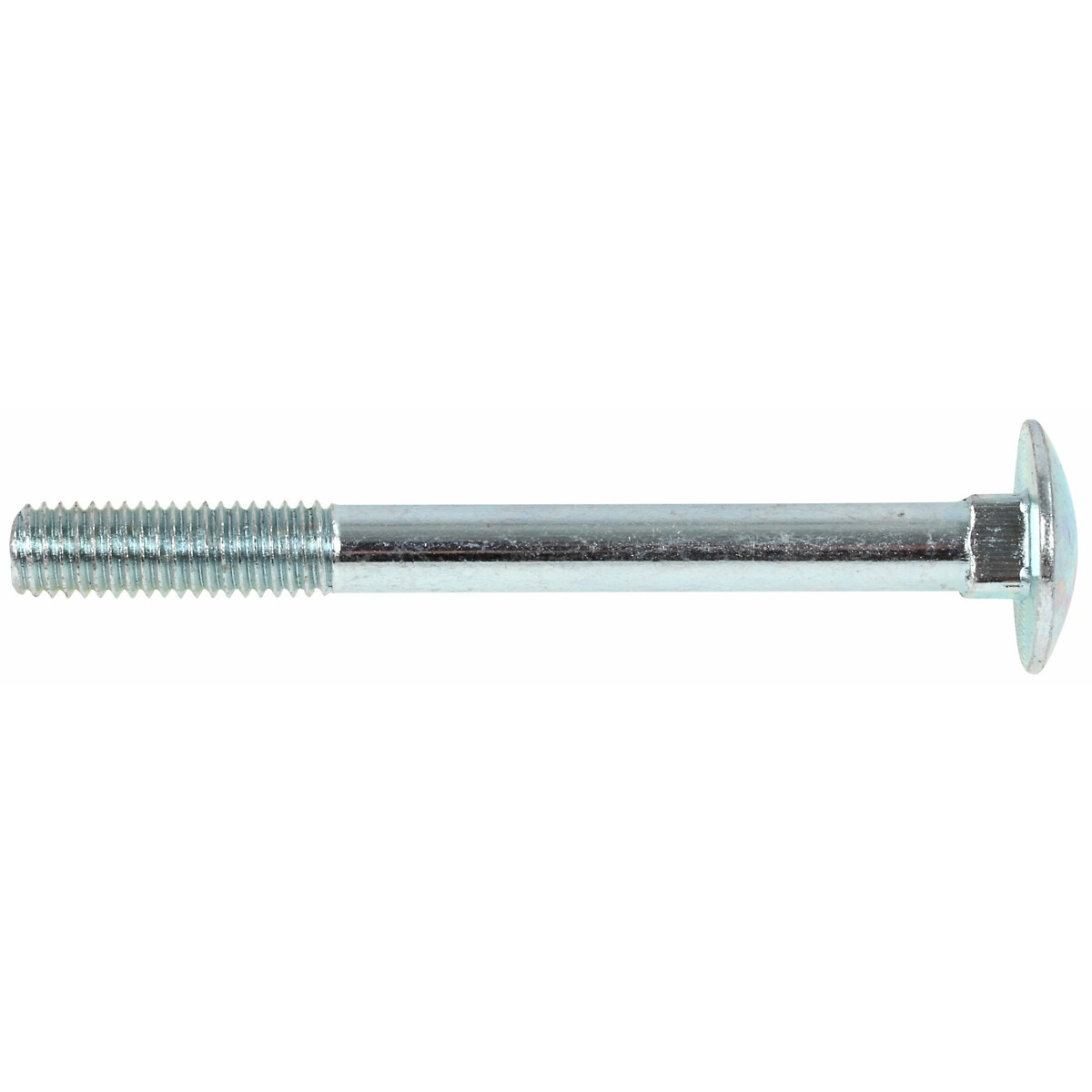

KRAVAS SKRŪVE M16X100 2GAB 8.8 DIN603

Description

zinc plated | DIN 603 carriage bolt | class 8.8 | thread (d) M16 x 2.0 | length (L) 100 mm | thread length (b) min. 38 mm | head diameter (dk) max. 38.8 mm | head height (k) max. 8.95 mm | square neck (V x V x F) max. 16.7 x 16.7 x 12.9 mm | 2 pcs / package

Attributes

Class: Class 8.8 | Thread: M16 x 2,0 | Length (mm): 100 | Length (mm): 100.00 | Material: Steel | Surface: Electro zinc plated | DIN: DIN 603 | Package length (cm): 11 | Package width (cm): 6.5 | Package height (cm): 3.7 | Gross weight (kg): 0.380000 | EAN: 6418914224261
