Kravas skrūve m12x220 4.8 25gab din603

Description

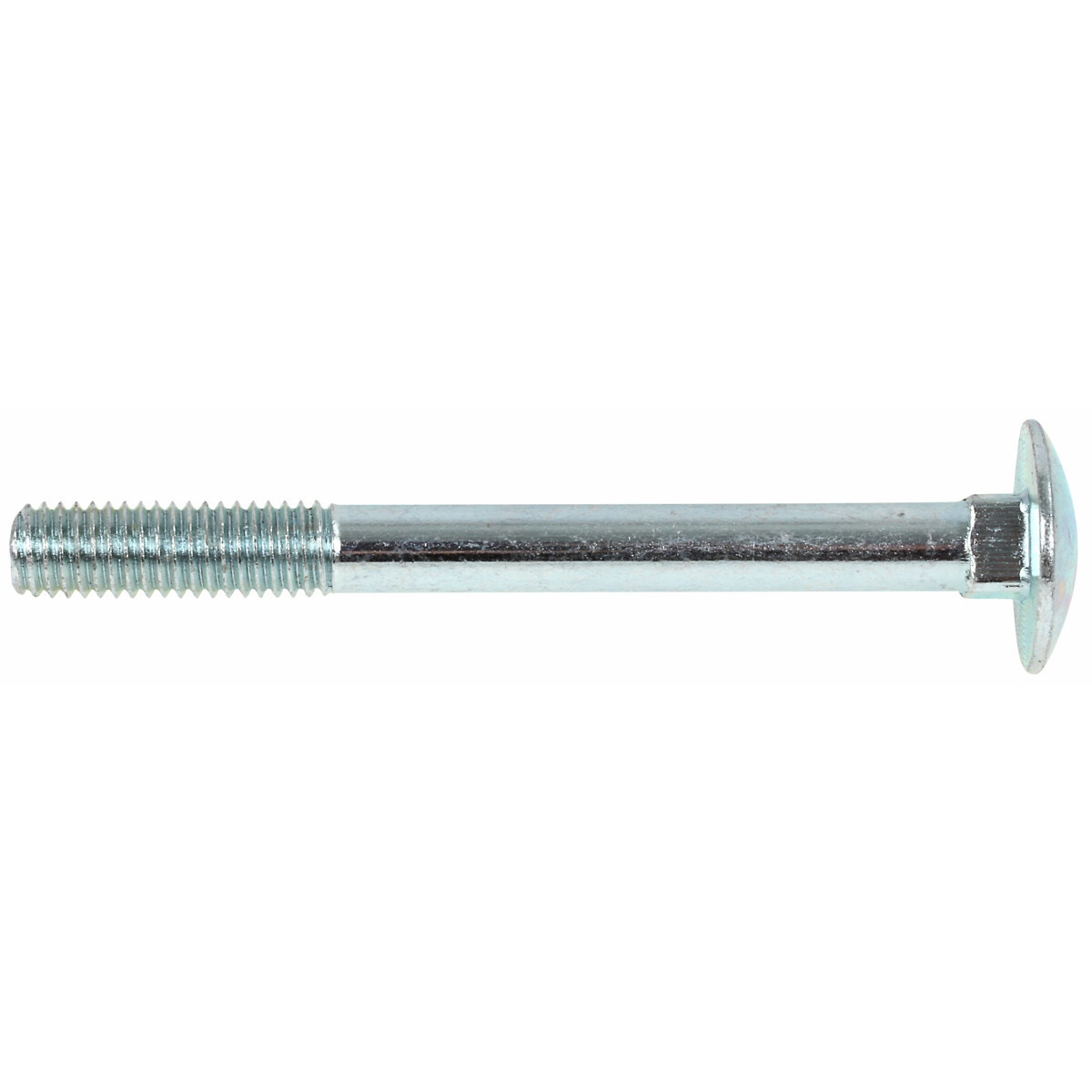

zinc plated (Cr3+) | DIN 603 carriage bolt | nuts DIN 555 included (packed in separate bag) | class 4.8 | thread (d) M12 x 1,75 | length (L) 220 mm | thread length (b) min. 49 mm | head diameter (dk) max. 30,65 mm | head height (k) max. 6,95 mm | square neck (V x V x F) max. 12,7 x 12,7 x 8,75 mm | 25 pcs / package

Attributes

Class: Class 4.8 | Thread: M12 x 1,75 | Length (mm): 220 | Length (mm): 220.00 | Material: Steel | Surface: Electro zinc plated | DIN: DIN 603 | Package length (cm): 23 | Package width (cm): 13 | Package height (cm): 9 | Gross weight (kg): 5.260000 | EAN: 5410439099141
