Kravas skrūve m10x40 100gab 8.8 din603

Description

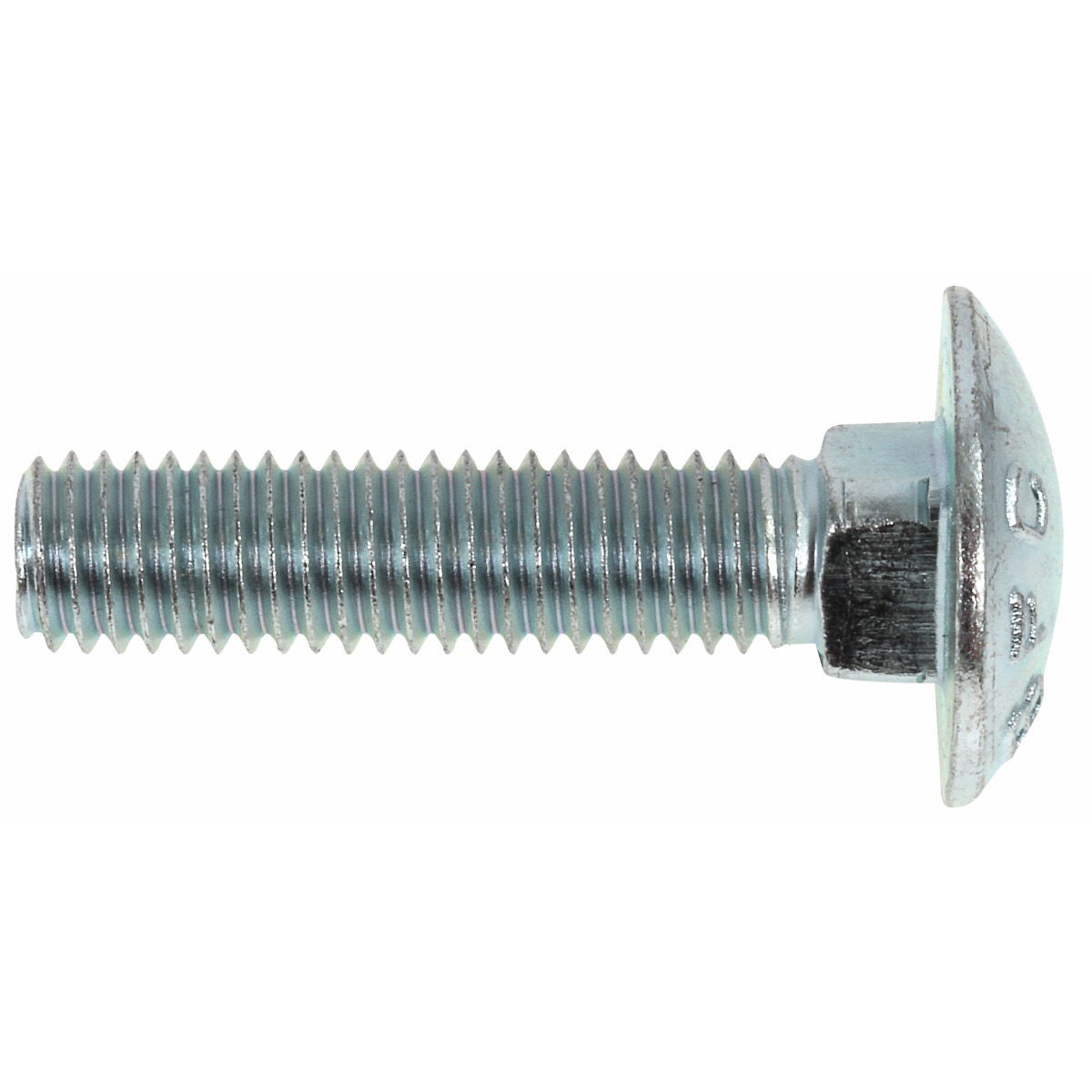

zinc plated | DIN 603 carriage bolt | class 8.8 | thread (d) M10 x 1.5 | length (L) 40 mm | thread length (b) min. 26 mm | head diameter (dk) max. 24.65 mm | head height (k) max. 5.38 mm | square neck (V x V x F) max. 10.58 x 10.58 x 6.6 mm

Attributes

Class: Class 8.8 | Thread: M10 x 1,5 | Length (mm): 40 | Length (mm): 40.00 | Material: Steel | Surface: Electro zinc plated | DIN: DIN 603 | Package length (cm): 14.5 | Package width (cm): 11 | Package height (cm): 12 | Gross weight (kg): 3.340000 | EAN: 4043952123621
