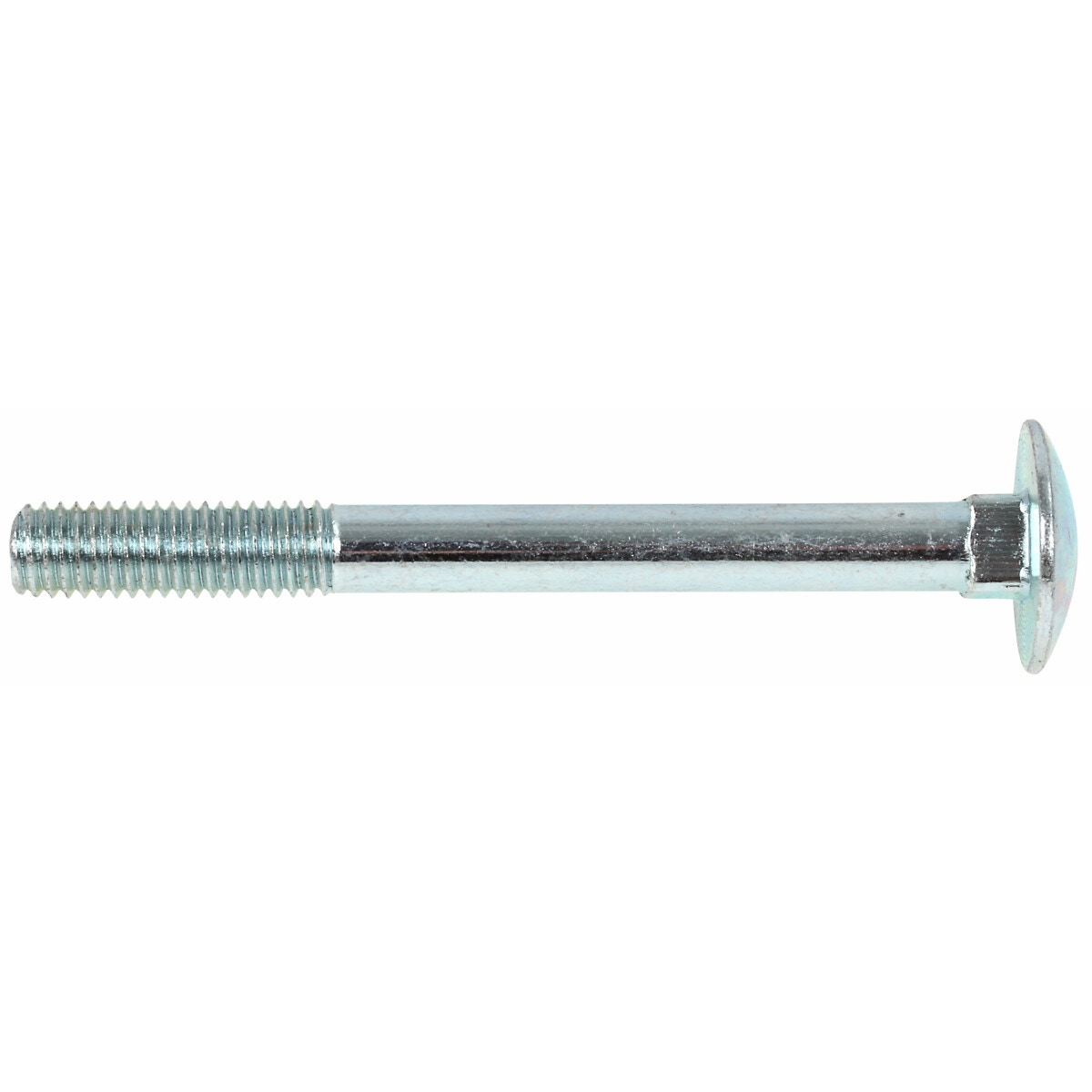

Kravas skrūve m10x120 4.8 50gab din603

Description

zinc plated (Cr3+) | DIN 603 carriage bolt | nuts DIN 555 included (packed in separate bag) | class 4.8 | thread (d) M10 x 1,5 | length (L) 120 mm | thread length (b) min. 26 mm | head diameter (dk) max. 24,65 mm | head height (k) max. 5,38 mm | square neck (V x V x F) max. 10,58 x 10,58 x 6,6 mm | 50 pcs / package

Attributes

Class: Class 4.8 | Thread: M10 x 1,5 | Length (mm): 120 | Length (mm): 120.00 | Material: Steel | Surface: Electro zinc plated | DIN: DIN 603 | Package length (cm): 23 | Package width (cm): 13 | Package height (cm): 9 | Gross weight (kg): 4.205000 | EAN: 5410439037181
