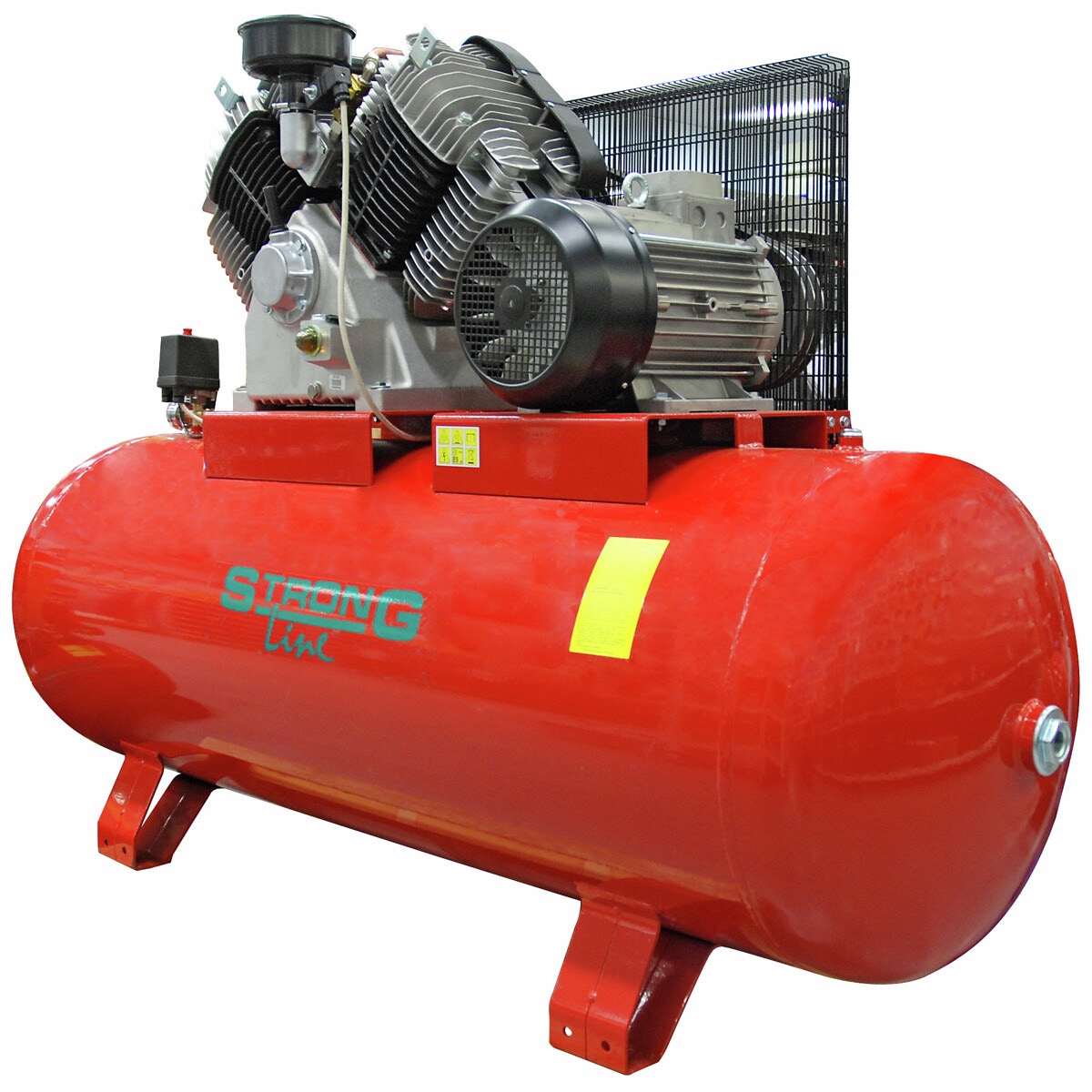

KOMPRESORS 3-V 20 ZS 2250L/500L

Description

motor 20 hv / 15 kW / 400 V | operating speed 1570 rpm | delivery 2250 l/min | tank 500 l | max. pressure 10 bar | 2-V-belt-drive | V-cylinder, oil-lubricated block | outlet connections: one from tank and two from pressure relief valve | gauges for tank and outlet pressure | star-delta starter | noise level 78 dB | dimensions: W600 x L1980 x H1700 mm | weight 450 kg

Attributes

Package length (cm): 195 | Package width (cm): 70 | Package height (cm): 145 | Gross weight (kg): 0.000000 | EAN: 6418914745797
