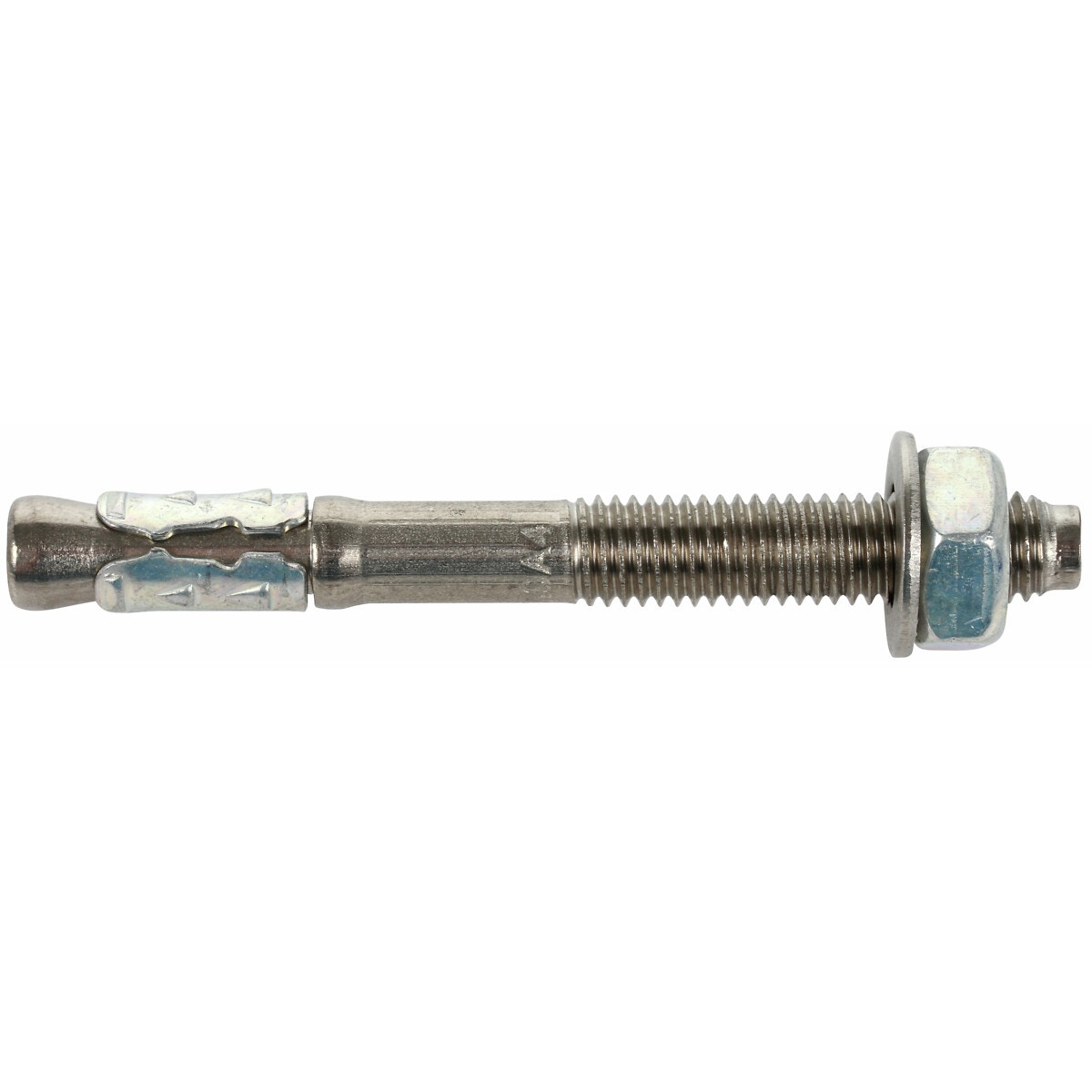

Klints enkurs m8x68 (4mm) 4gab a4 inox op.1

Description

size M8 x 68 mm | thread length 30 mm | fixing thickness max. (t fix) 4 mm | hole diameter (do) Ø 8 mm | hole depth min. (h1) 70 mm | nominal embedment depth (hnom) 54 mm | hole diameter of fixing element (df) Ø 9 mm | min. support thickness (h min) 100 mm | torque 20 Nm | wrench 13 mm | acid proof stainless steel A4-70/AISI316 | corrosivity categories according to ISO 9223: C1-C4-I | for cracked and uncracked concrete C20/25 – C50/60 (EN 206-1) and solid stone | for professional use | fire resistance F120 | 4 pcs / package

Attributes

Thread: M8 x 1,25 | Length (mm): 68 | Length (mm): 68.00 | Package length (cm): 5 | Package width (cm): 6.5 | Package height (cm): 1.5 | Gross weight (kg): 0.121000 | EAN: 6418914262249
