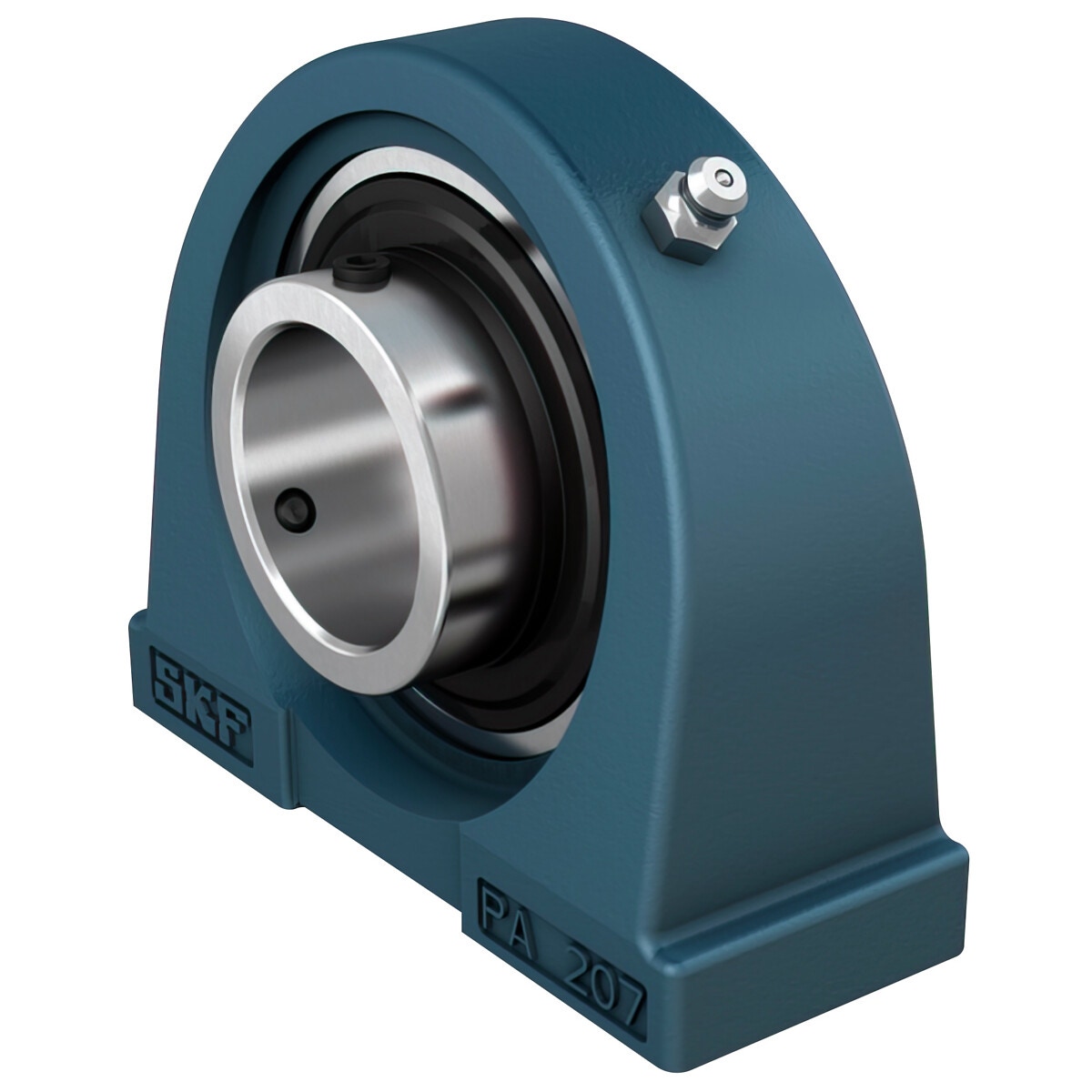

Īsās pamatnes spilvenu bloka lodīšu gultņu bloks 35 mm skf
81 €
✓ Pieejams
Description
bore diameter (d) 35 mm | inner ring shoulder diameter (d1) 46.1 mm | base width (A) 42 mm | top width (A1) 22 mm | inner ring width (B) 42.9 mm | distance from locking device side face to thread centre (B4) 6 mm | height of spherical seat centre (H) 47.6 mm | foot height (H1) 12.5 mm | overall height (H2) 93 mm | distance between attachment bolts (J) 80 mm | overall length (L) 110.5 mm | distance from locking device side face to raceway centre (s1) 25.4 mm | housing thread for the grease fitting (RG) 1/4-28 UNF | axial position of the housing thread (R1) 3.5 mm | angular position of the housing thread (Rα) 45 ° | diameter of head sphere of grease fitting (DN) 6.6 mm | hexagonal key size for the grease fitting (SWN) 7.94 mm | thread of the grease fitting (GN) 1/4- 28 UNF | basic dynamic load rating (C) 25.5 kN | basic static load rating (C0) 15.3 kN | fatigue load limit (Pu) 0,655 kN | limiting speed 4300 r/min
Attributes
Inner diameter Ø (mm): 35 | Inner diameter Ø (mm): 35.00 | Package length (cm): 11.2 | Package width (cm): 11.5 | Package height (cm): 6.9 | Gross weight (kg): 1.467000 | EAN: 7316579751889
