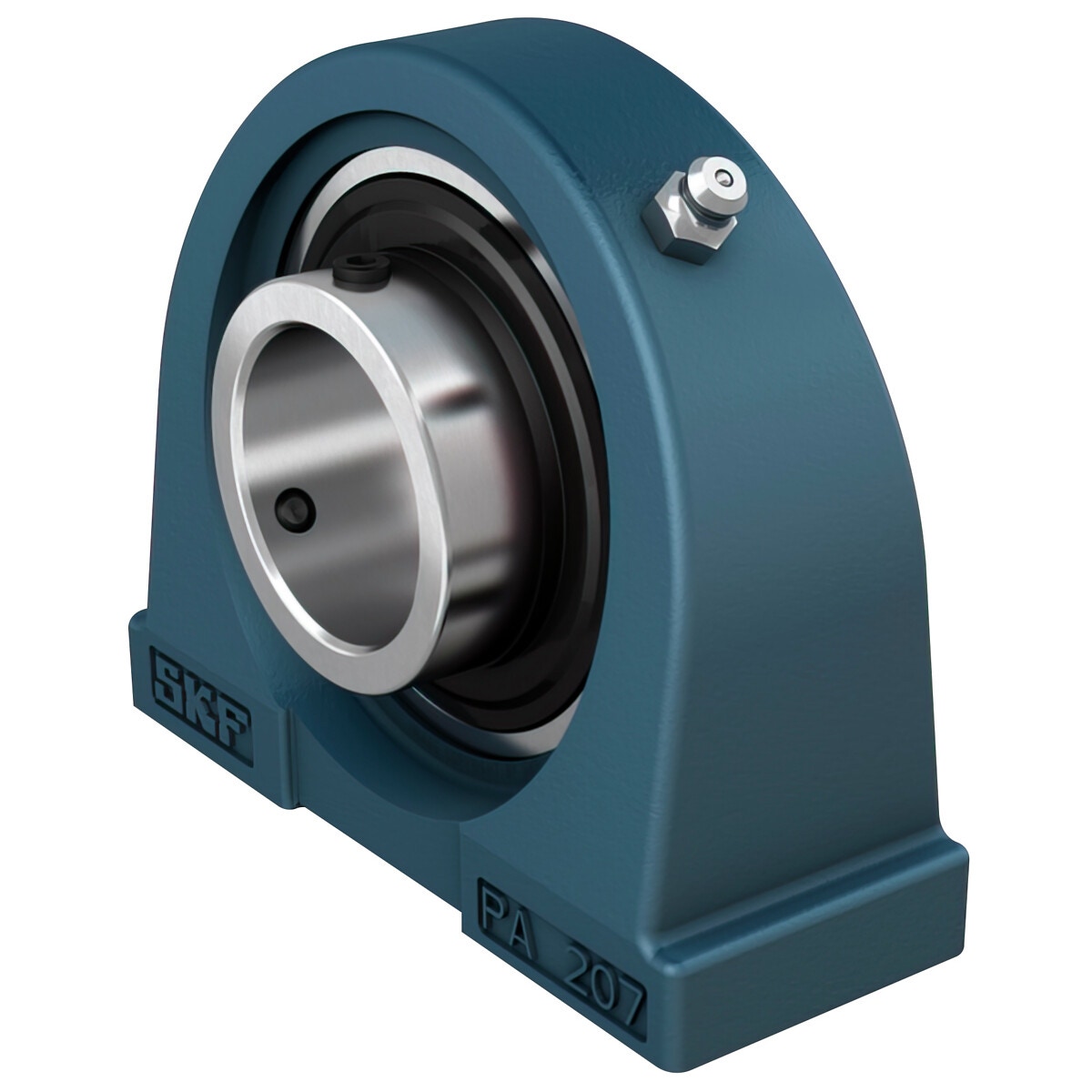

ĪSĀS PAMATNES SPILVENU BLOKA LODĪŠU GULTŅU BLOKS 25 MM SKF

Description

bore diameter (d) 25 mm | inner ring shoulder diameter (d1) 33.74 mm | base width (A) 40 mm | top width (A1) 21 mm | inner ring width (B) 34.1 mm | distance from locking device side face to thread centre (B4) 5 mm | height of spherical seat centre (H) 36.5 mm | foot height (H1) 12 mm | overall height (H2) 73 mm | distance between attachment bolts (J) 56 mm | overall length (L) 84 mm | distance from locking device side face to raceway centre (s1) 19.8 mm | housing thread for the grease fitting (RG) 1/4-28 UNF | axial position of the housing thread (R1) 1.5 mm | angular position of the housing thread (Rα) 45 ° | diameter of head sphere of grease fitting (DN) 6.6 mm | hexagonal key size for the grease fitting (SWN) 7.94 mm | thread of the grease fitting (GN) 1/4- 28 UNF | basic dynamic load rating (C) 14 kN | basic static static load rating (C0) 7.8 kN | fatigue load limit (Pu) 0.335 kN | limiting speed 5850 r/min

Attributes

Inner diameter Ø (mm): 25 | Inner diameter Ø (mm): 25.00 | Package length (cm): 8.2 | Package width (cm): 8.6 | Package height (cm): 5.4 | Gross weight (kg): 0.775000 | EAN: 7316579751865
