IEKŠĒJAIS IZVILKŠANAS PRETSTILBS

Description

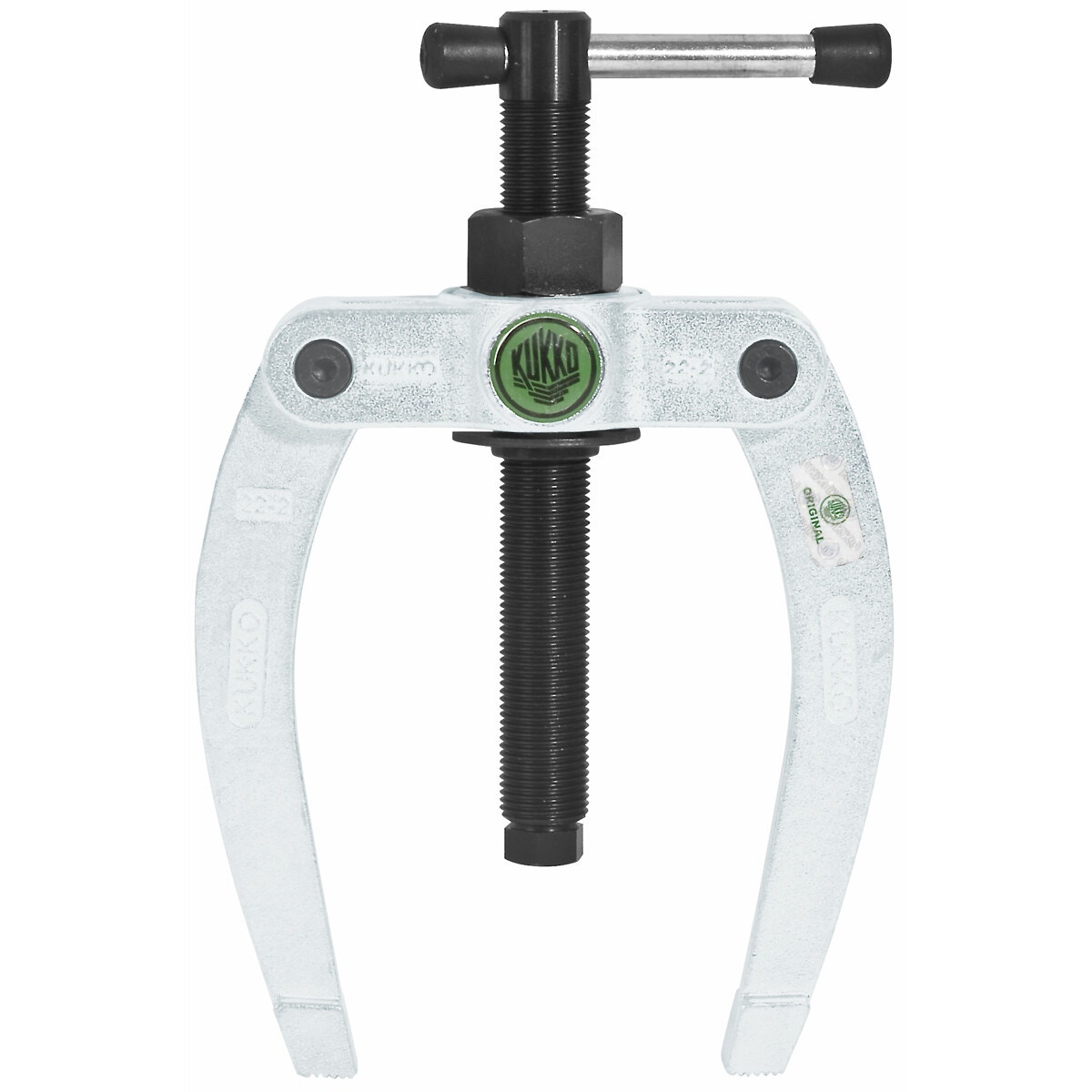

Kukko no. 22-2 | drop forged steel | suitable for internal extractors no. 21-6 – 21-8 and 21-5-E – 21-7-E | Push the type 21 internal extractor into the bore of the bearing. Tighten nut B to spread the jaws C and force the lips D in behind the rounded race edge. Place the type 22 counterstay on the bearing housing, and tighten the screw E down on the extractor screw A. Now, hold the handle G firmly and tighten the nut F to extract the bearing smoothly and evenly. Keep tightening the extractor nut B during the pulling process.

Attributes

Package length (cm): 21 | Package width (cm): 5 | Package height (cm): 14.1 | Gross weight (kg): 1.811000 | EAN: 4021176012303
