IEKRĀVĒJA SVARI PTE S2 RITEŅIEKRĀVĒJI

Description

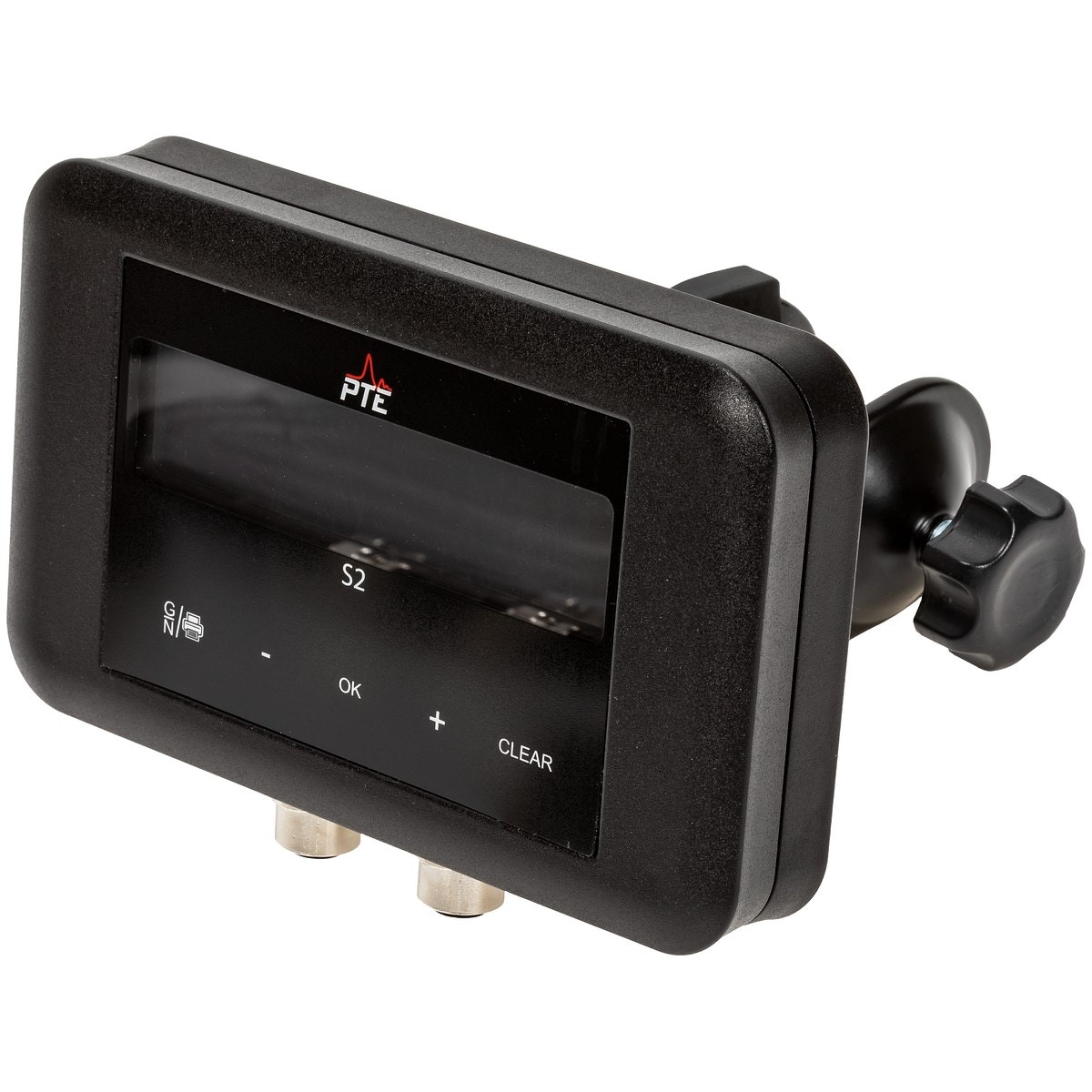

high-precision load scale for wheel loaders and telescopic handlers | 99.5% accuracy (pressure sensor measurement with an accuracy of 64 mbar), in practice, the accuracy limit factor include mechanical frictions in the machine and hydraulic leaks | very easy and quick installation, the pressure sensor is connected to the hydraulics with a 1/4" BSP thread and the cables have pre-fitted connectors | pack includes 2 pcs pressure sensors max. 250 bar | displays up to 99999 kg, backlit LCD display, IP40 | display dimensions 103 x 150 x 28 mm | option to use 1-9 calibration weights | easy-to-use FI/SE/EN interface, weight totalization, units kg/lb, tare feature, remote button support, bucket change function, easy calibration, etc. as standard | numerous accessory options | possibility to connect with a printer | 1000 memory slots can be divided into 100 different product groups | exact time clock for printouts | not approved for commercial use | designed and manufactured in Finland | PTE S2 display 8-30 V DC | display power cable | display mounting bracket | operating instructions + separate instructions for wheel loader scale | 2 x 250 bar pressure sensor | pressure sensor cable (4m) + branching set for two pressure sensors | printer connector cable + branching set for limit switches (5+1m) | 2 x inductive limit switch | the mounting bracket for limit switches must be made separately, e.g. from an L-profile

Attributes

Package length (cm): 33 | Package width (cm): 20.7 | Package height (cm): 13 | Gross weight (kg): 2.137000 | EAN: 6418914221659
