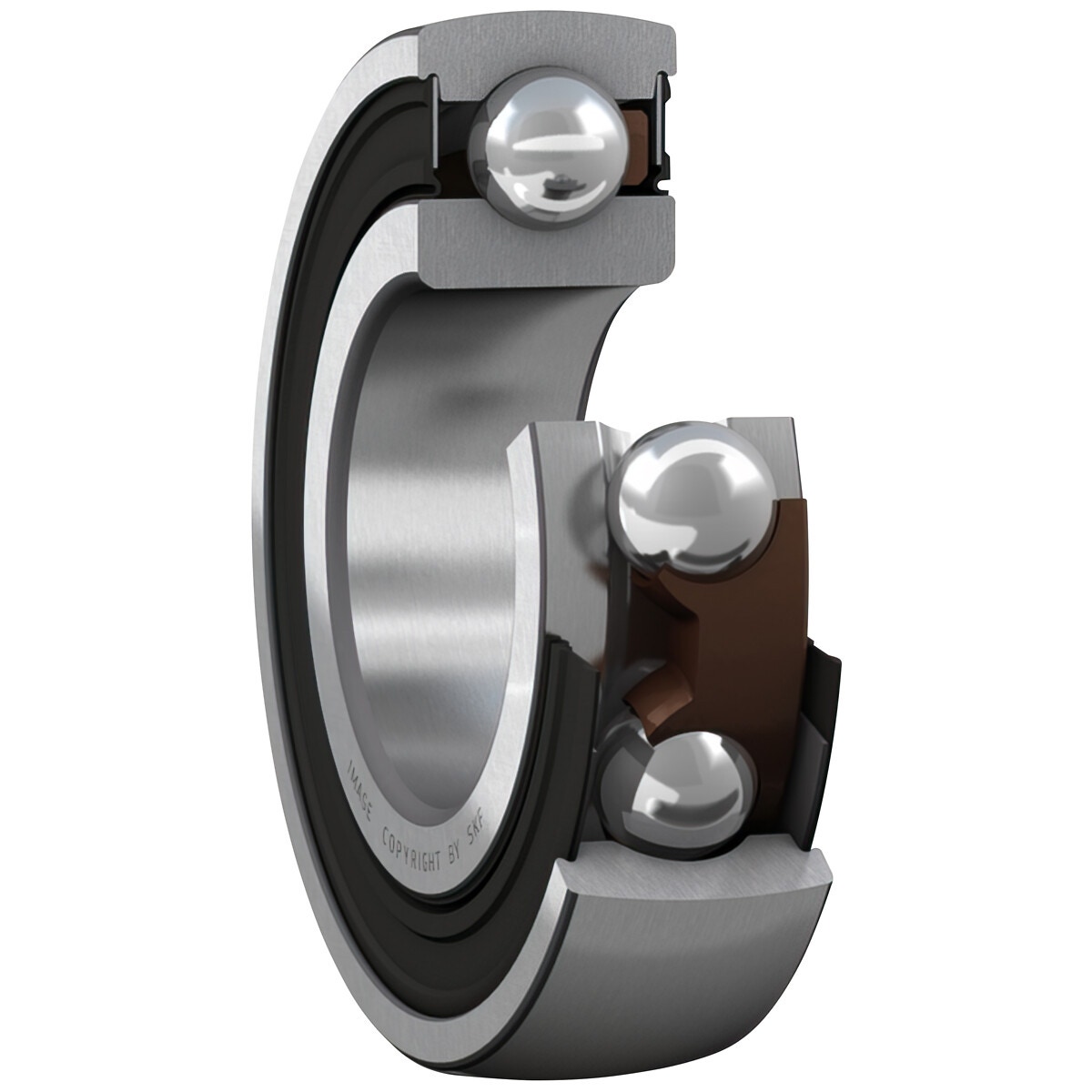

Iegremdējamais gultnis 40x90x23 skf
90 €
✓ Pieejams
Description
bore diameter (d) 40 mm | outer diameter (D) 90 mm | inner ring width (B) 23 mm | outer diameter, inner ring (d1) 56.11 mm | chamfer dimension (r1,2) min. 1.5 mm | basic dynamic load rating (C) 41 kN | basic static load rating (C0) 24 kN | fatigue load limit (Pu) 1 kN | limiting speed 5000 r/min | calculation factor (f0) 13
Attributes
Inner diameter Ø (mm): 40 | Inner diameter Ø (mm): 40.00 | Outer diameter Ø (mm): 90 | Outer diameter Ø (mm): 90.00 | Package length (cm): 9.2 | Package width (cm): 9.7 | Package height (cm): 2.6 | Gross weight (kg): 0.616000 | EAN: 7316577042989
