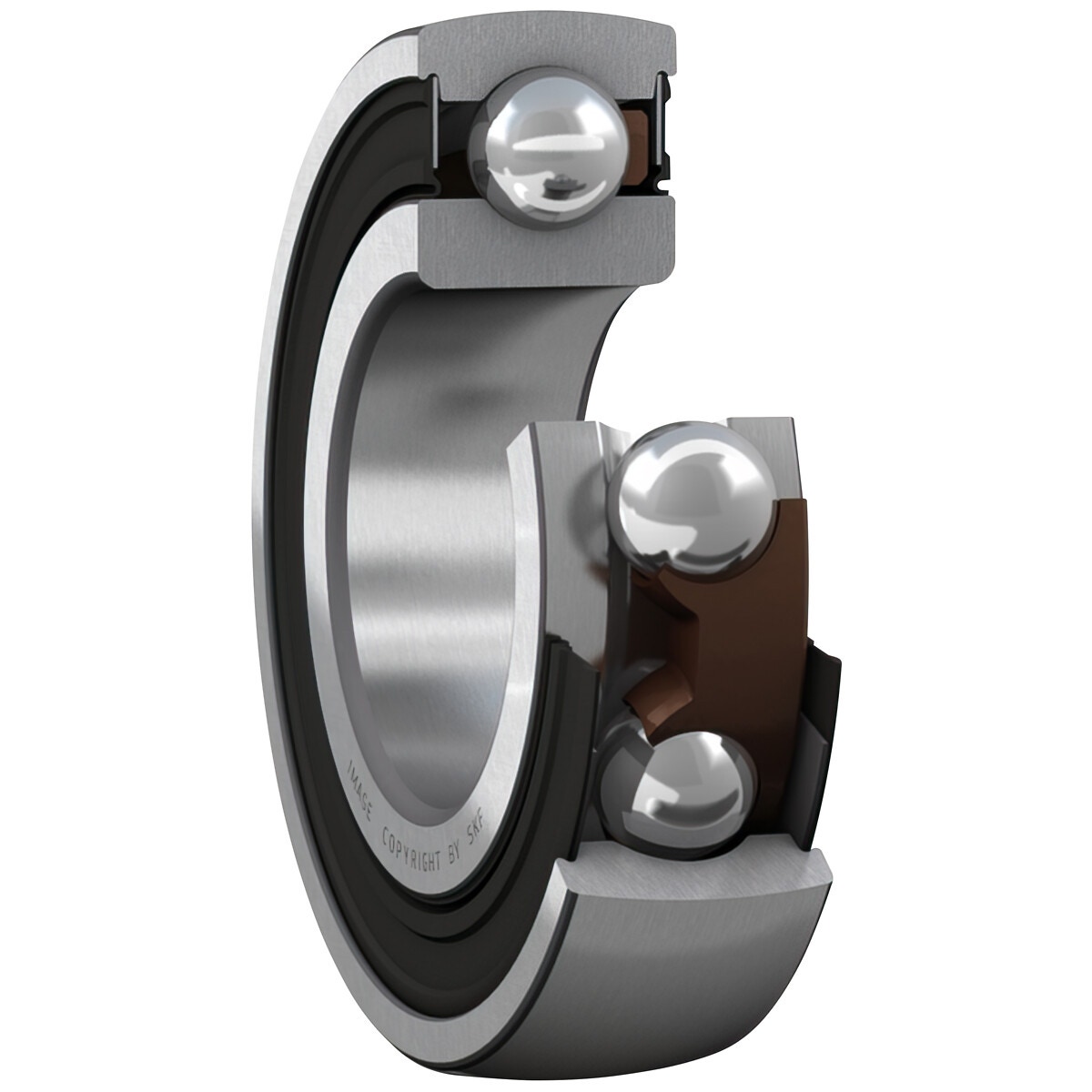

Iegremdējamais gultnis 40x80x18 skf
59 €
✓ Pieejams
Description
bore diameter (d) 40 mm | outer diameter (D) 80 mm | inner ring width (B) 18 mm | outer diameter, inner ring (d1) 52.6 mm | chamfer dimension (r1,2) min. 1.1 mm | basic dynamic load rating (C) 30.7 kN | basic static load rating (C0) 19 kN | fatigue load limit (Pu) 0,8 kN | limiting speed 5600 r/min | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 40 | Inner diameter Ø (mm): 40.00 | Outer diameter Ø (mm): 80 | Outer diameter Ø (mm): 80.00 | Package length (cm): 8.2 | Package width (cm): 8.6 | Package height (cm): 2.5 | Gross weight (kg): 0.362000 | EAN: 7316576625053
