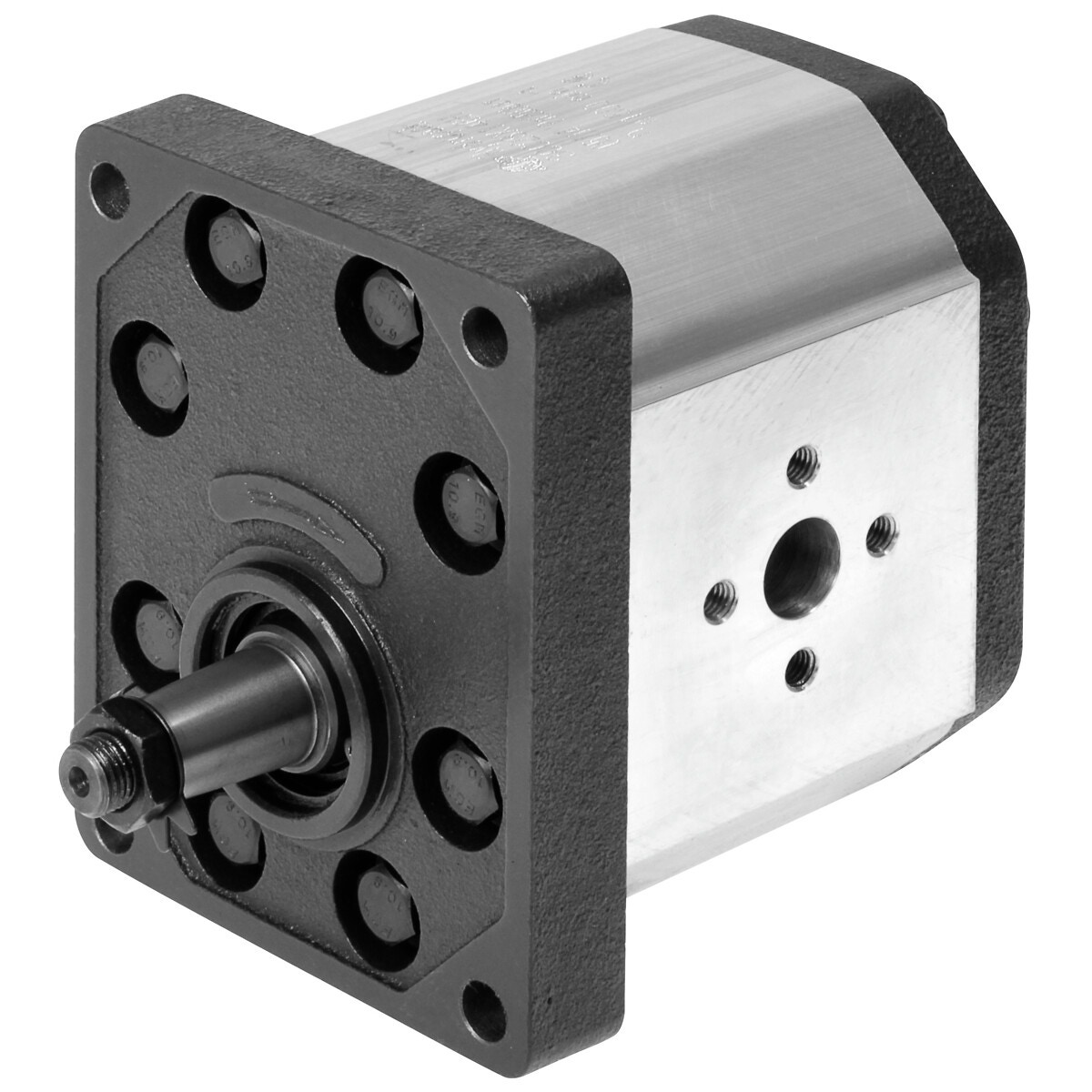

HIDRAULISKAIS SŪKNIS 55 3. GRUPAS ATLOKU PORTI
299 €
✓ Pieejams
Description
aluminium body | flange ports | tapered shaft 1:8 | counter clockwise rotation S (A) | rotational capacity 55 cm³/r | max. 1750 rpm | max. pressure 200 bar | flow 78,4 l/min (at 1500 rpm) | flow 91,4 l/min (max. rpm) | A 76,6 mm | B 157,9 mm | inlet E 51 mm / d M10 / F 27 mm | outlet E 40 mm / d M8 / F 19 mm
Attributes
Package length (cm): 13.5 | Package width (cm): 17 | Package height (cm): 21.5 | Gross weight (kg): 10.561000 | EAN: 6418914926967
