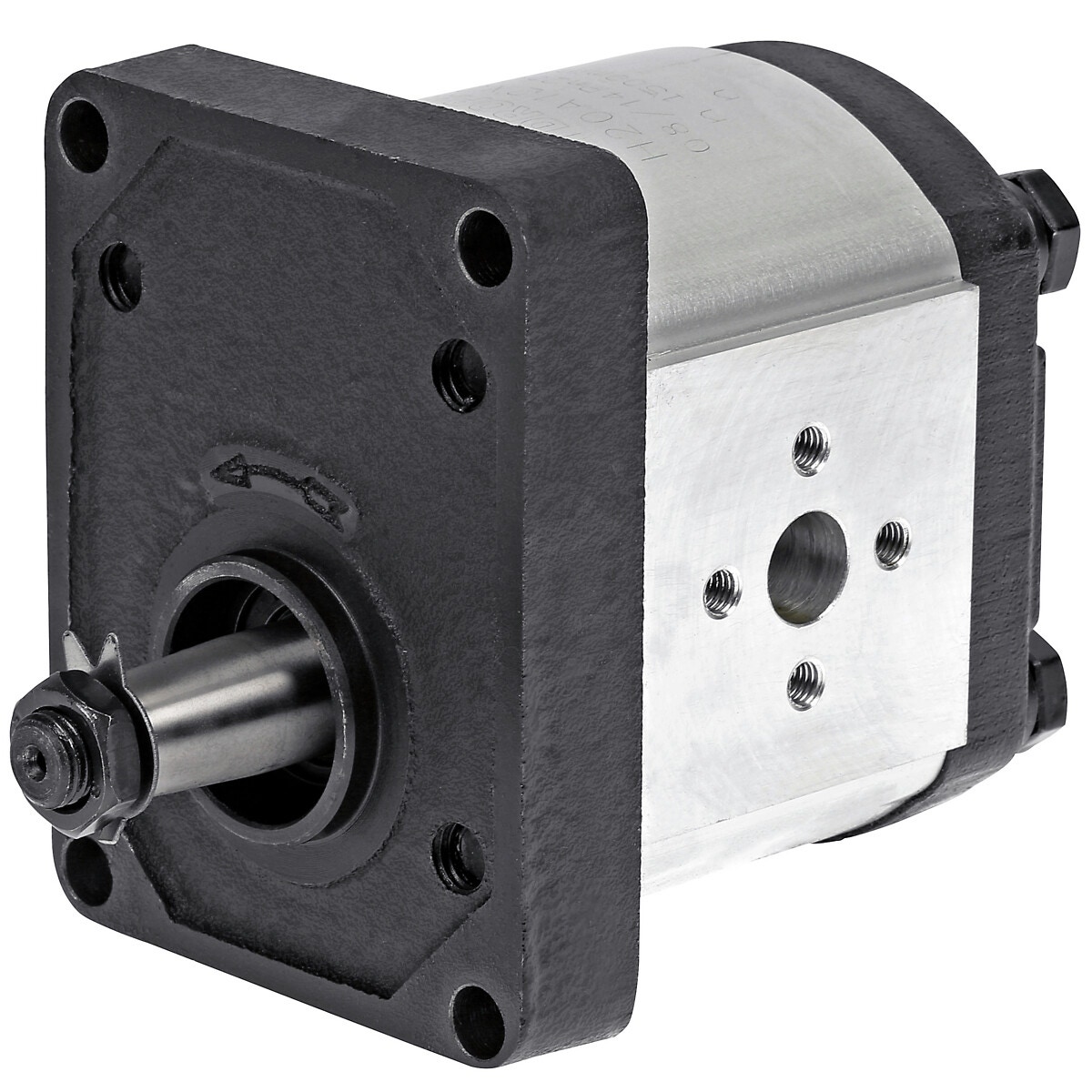

HIDRAULISKAIS SŪKNIS 14 2. GRUPAS ATLOKU PORTI

Description

aluminium body | flange ports | tapered shaft 1:8 | counter clockwise rotation S (A) | rotational capacity 14 cm³/r | max. 3500 rpm | max. pressure 250 bar | flow 19,95 l/min (at 1500 rpm) | flow 46,55 l/min (max. rpm) | A 50 mm | B 95,4 mm | inlet E 39,7 mm / F 19 mm / d M8 | outlet E 30,2 mm / F 14,2 mm / d M6

Attributes

Package length (cm): 9.5 | Package width (cm): 12 | Package height (cm): 17 | Gross weight (kg): 3.712000 | EAN: 6418914922846
