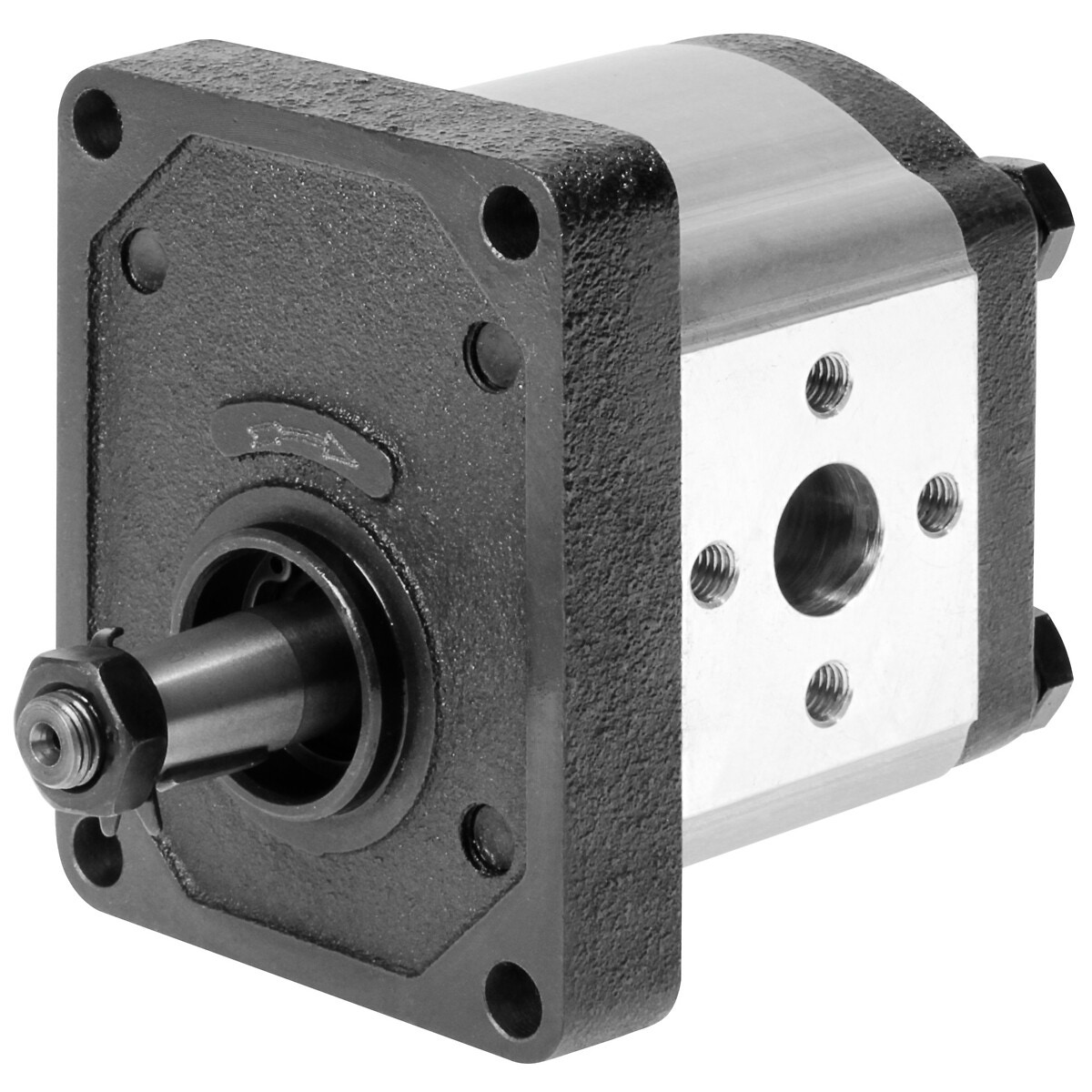

HIDRAULISKAIS SŪKNIS 12 2. GRUPAS ATLOKU PORTI
136,20 €
✓ Pieejams
Description
aluminium body | flange ports | tapered shaft 1:8 | clockwise rotation D (C) | rotational capacity 12 cm³/r | max. 3500 rpm | max. pressure 250 bar | flow 16,92 l/min (at 1500 rpm) | flow 39,48 l/min (max. rpm) | A 48,6 mm | B 92,3 mm | inlet E 39,7 mm / F 19 mm / d M8 | outlet E 30,2 mm / F 14,2 mm / d M6
Attributes
Package length (cm): 9.5 | Package width (cm): 12 | Package height (cm): 17 | Gross weight (kg): 3.629000 | EAN: 6418914926684
