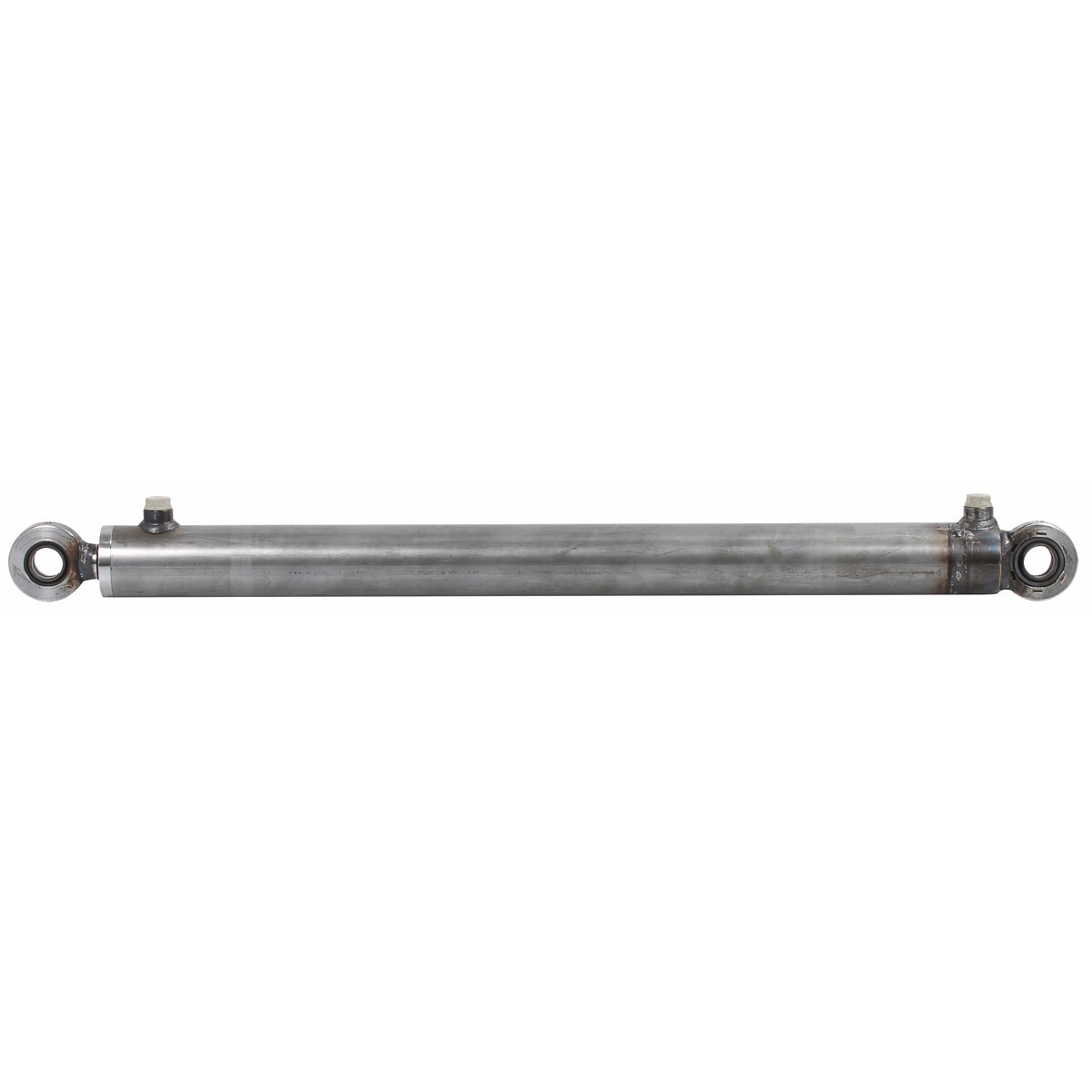

HIDRAULISKAIS DZINĒJS 40x25X350

Description

Agrilife cylinder series made in Finland with improved and reinforced construction | the end of the cylinder rod is threaded so the cylinder is easy to maintain | the rod is attached to piston with a glued Nyloc nut to minimize the possibility of detachment | double acting | unpainted | piston Ø 40 mm | rod Ø 25 mm | articulation bearing Ø 20 mm / width 16 mm | connection thread G 3/8" | stroke 350 mm | installation dimension 535 mm | A 185 mm, B 59 mm, C 50 mm, D 20 mm, E 55 mm | operating pressure 300 bar

Attributes

Thread: G 3/8" -19 | Package length (cm): 59 | Package width (cm): 5 | Package height (cm): 7 | Gross weight (kg): 5.330000 | EAN: 6418914076280
