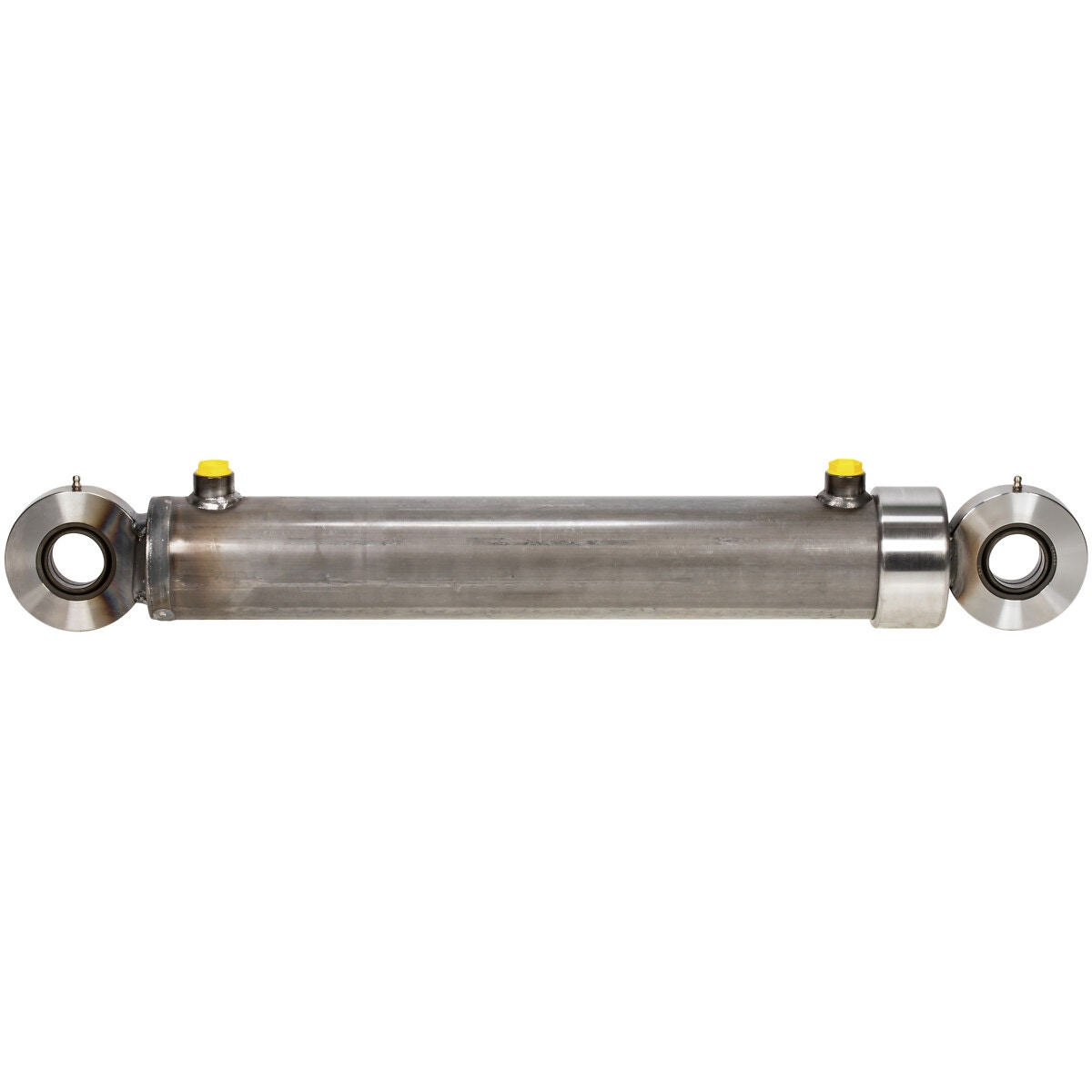

HIDRAULISKAIS CILINDRS 80X50X250

Description

Agrilife cylinder series made in Finland with improved and reinforced construction | the end of the cylinder rod is threaded so the cylinder is easy to maintain | the rod is attached to piston with a glued Nyloc nut to minimize the possibility of detachment | double acting | unpainted | piston Ø 80 mm | rod Ø 50 mm | articulation bearing 40 mm | connection thread G 1/2" | stroke 250 mm | installation dimension 530 mm | A 280 mm, B 104 mm, C Ø 90 mm, D Ø 40 mm, E Ø 105 mm | operating pressure 300 bar

Attributes

Thread: G 1/2" -14 | Package length (cm): 63.5 | Package width (cm): 9 | Package height (cm): 11 | Gross weight (kg): 17.100000 | EAN: 6418914118003
