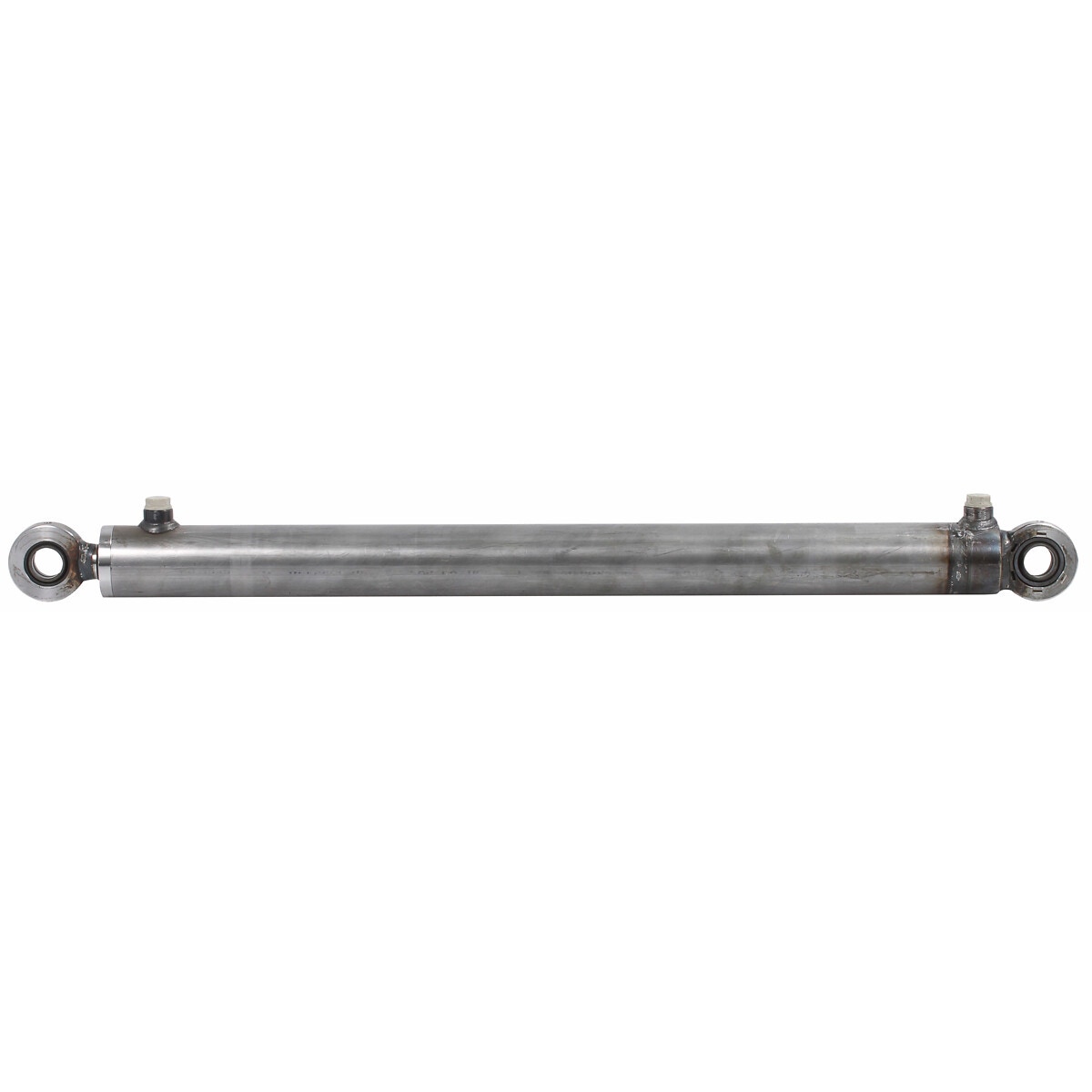

HIDRAULISKAIS CILINDRS 50X30X600

Description

Agrilife cylinder series made in Finland with improved and reinforced construction | the end of the cylinder rod is threaded so the cylinder is easy to maintain | the rod is attached to piston with a glued Nyloc nut to minimize the possibility of detachment | double acting | unpainted | piston Ø 50 mm | rod Ø 30 mm | articulation bearing Ø 25 mm / width 20 mm | connection thread G 3/8" | stroke 600 mm | installation dimension 810 mm | A 210 mm, B 59 mm, C 60 mm, D 25 mm, E 65 mm | operating pressure 300 bar

Attributes

Thread: G 3/8" -19 | Package length (cm): 87.5 | Package width (cm): 6.5 | Package height (cm): 6.5 | Gross weight (kg): 10.700000 | EAN: 6418914973367
