HIDRAULISKAIS CILINDRS 23TON 65/41 1-AKT.

Description

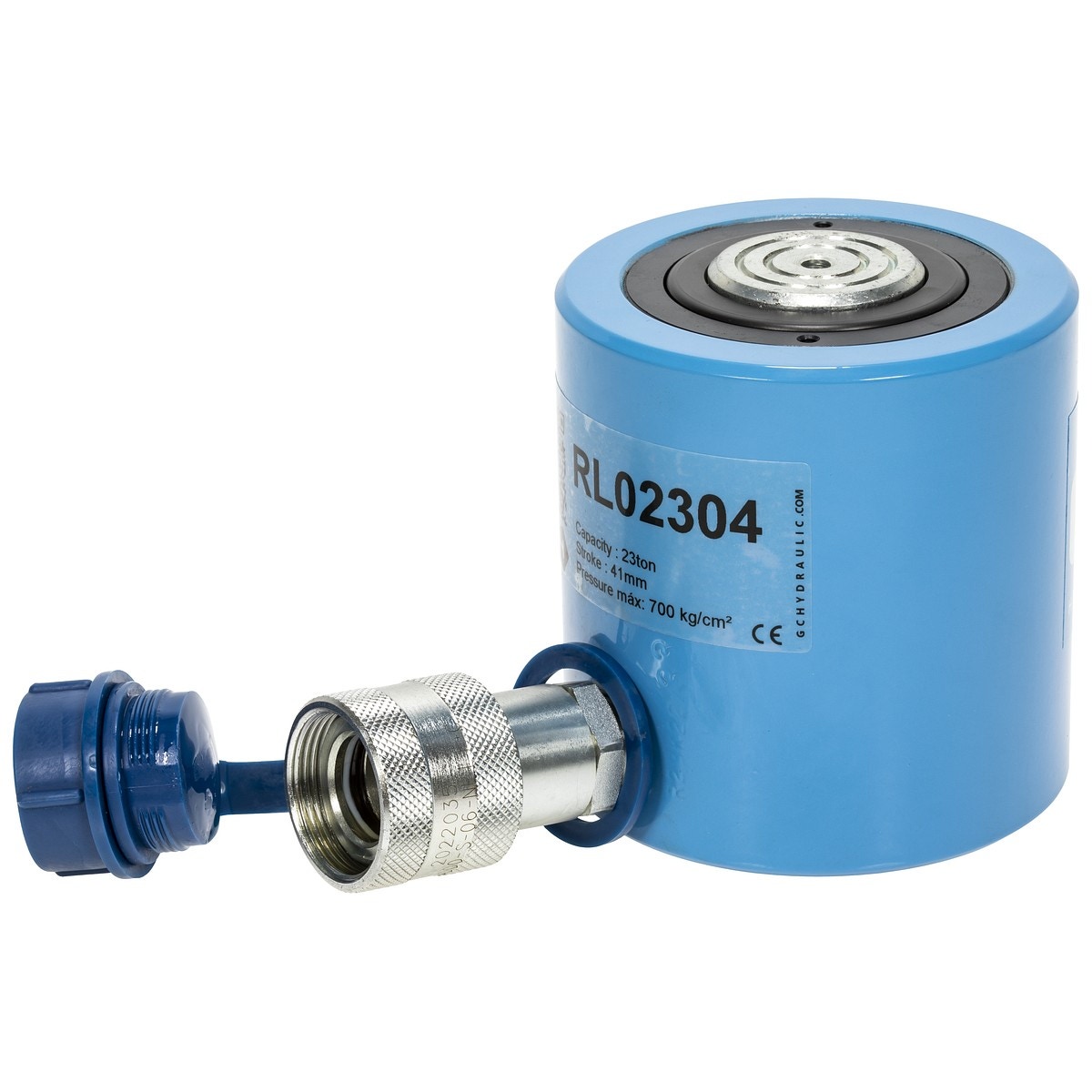

high-quality hydraulic cylinders for professional use by GC-Hydraulics | wide range of different lifting and pulling cylinders and accessories | RL-series cylinder suitable for a wide range of lifting work | the cylinder is made very low to fit in tight spaces | short stroke | internal threads at the bottom of the cylinder for secure anchoring | single acting | with spring return | works in all positions | cylinder capacity 23.2 ton | press force 227.8 kN | stroke 41 mm | A 99 mm, B 140 mm, D 94 mm, E 65 mm, F 54 mm | oil volume 136 cm³ | weight 4.8 kg

Attributes

Package length (cm): 24.5 | Package width (cm): 12.5 | Package height (cm): 11.5 | Gross weight (kg): 4.998000 | EAN: 6418914213944
