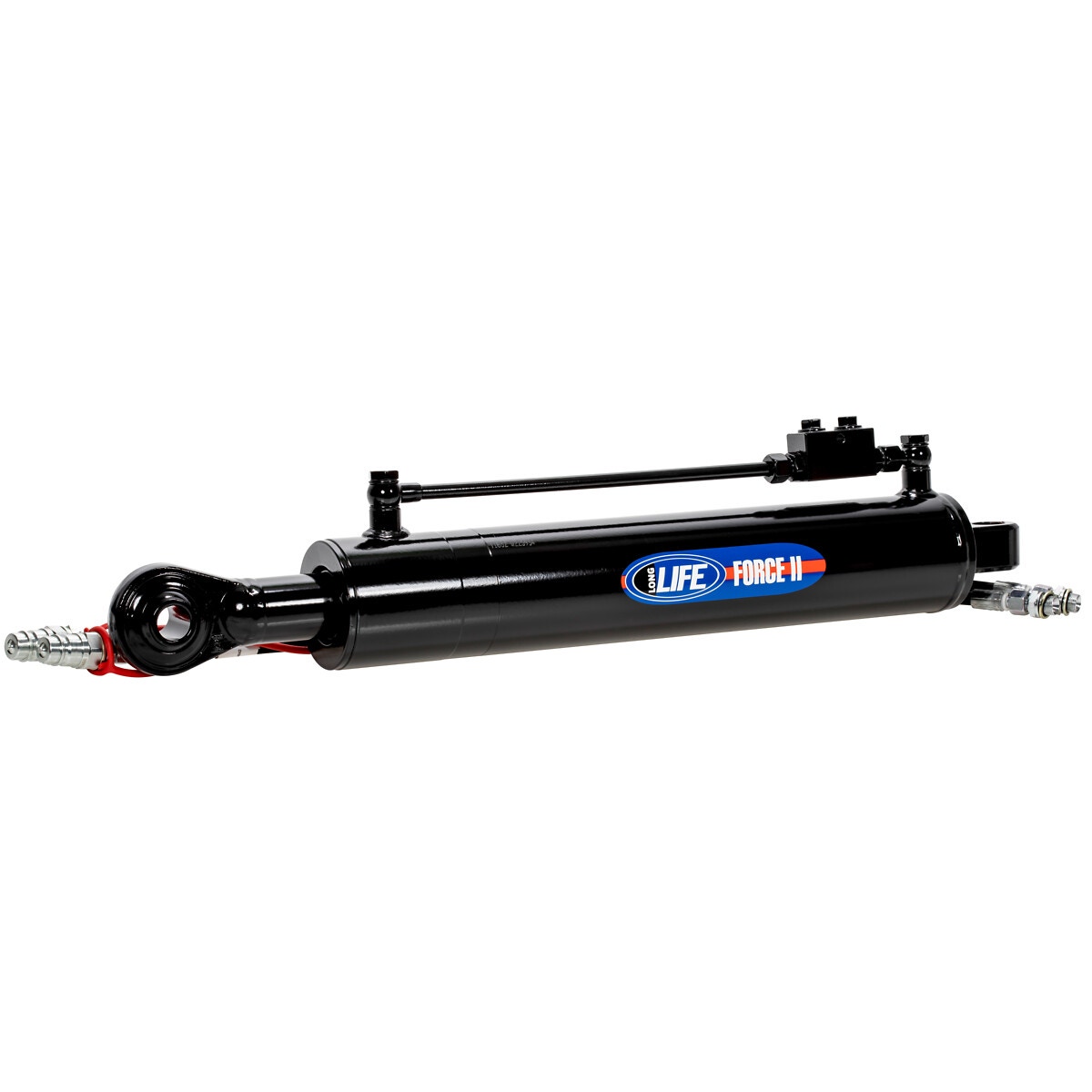

Hidrauliskais augšējais savienojums 90/50/455 yoke-cat2

Description

hydraulic top link specially designed for use with sanders | the long stroke of the top link allows for a steeper turning of the sander, which in turn facilitates loading | sturdy piston rod 50 mm | piston Ø 90 mm | installation dimension 745 mm + knuckle | stroke 455 mm | max. operating pressure 210 bar | pushing capacity 13600 kg (210 bar) | lifting capacity 9400 kg (210 bar) | includes check valve and 850 mm long 1/4” hoses with quick connectors | knucle end not included

Attributes

Package length (cm): 16 | Package width (cm): 81 | Package height (cm): 18 | Gross weight (kg): 24.220000 | EAN: 6418914212442
