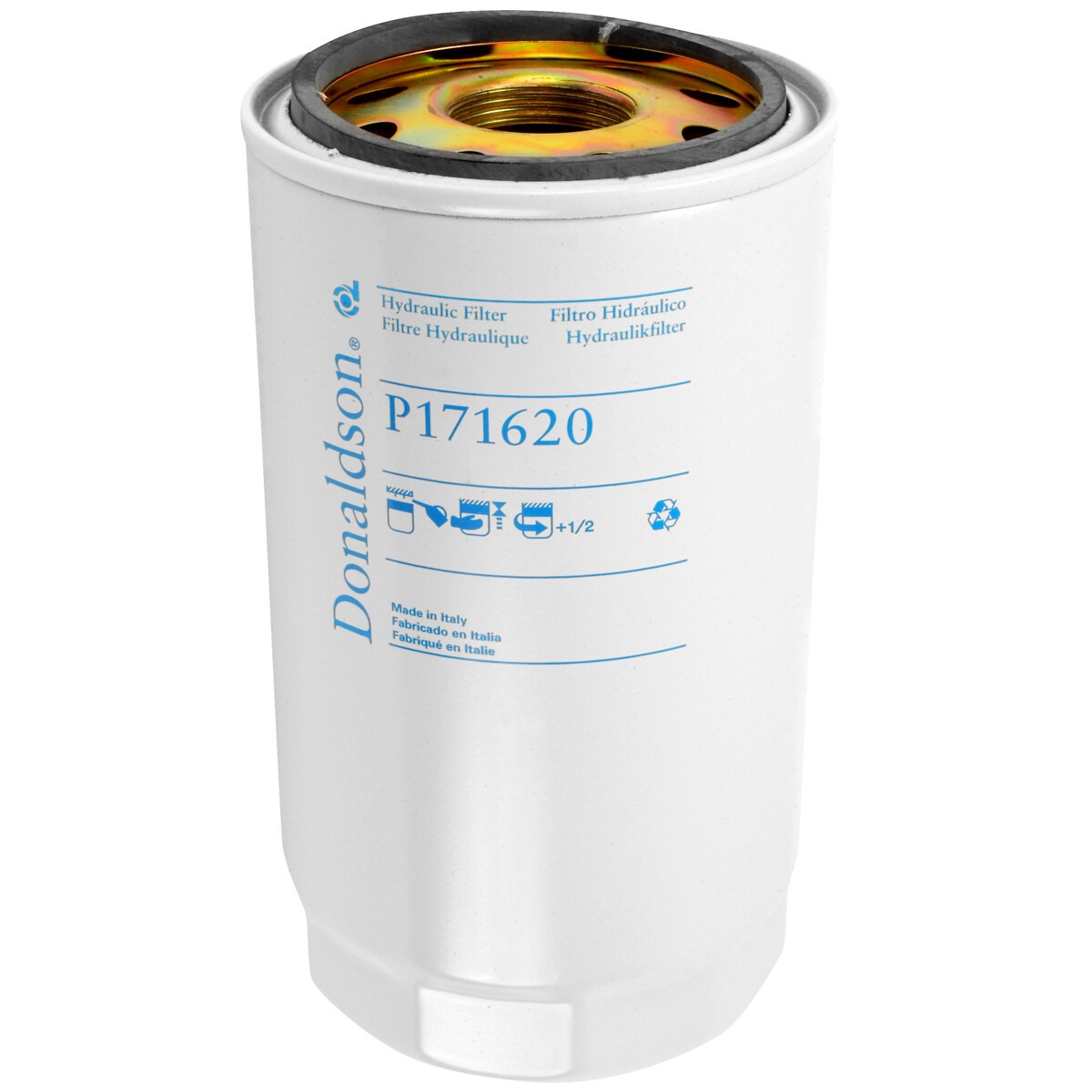

HIDRAULISKAIS ATGRIEZENISKAIS FILTRS KOMPLEKTĀ 1 1/4″

Description

thread G 1 1/4"-11 | length 236 mm | outer diameter Ø 128 mm | max. flow 160 l/min | 10 micron normal paper | filter efficiency Beta 2: 10 micron | operating pressure 10 bar (1000 kPa) | static pressure testing 15 bar (1500 kPa) | intergrated bypass valve 1.5 bar (150 kPa) according to ISO3968 | operating temperature -20…+100 °C | compatibility with hydraulic liquids according to ISO2943 | flow rate and pressure loss according to ISO3968, oil kinematic viscosity 30 cSt in 40 °C and density 0.875 kg/dm³ | threads according to ISO228/1 | DFP176846

Attributes

Spare part type: Filters | Thread: G 1 1/4" -11 | Length (mm): 236 | Outer diameter Ø (mm): 128 | Package length (cm): 13.9 | Package width (cm): 13.9 | Package height (cm): 23.5 | Gross weight (kg): 1.468000 | EAN: 742330112069
