Hidrauliskā šļūtene r15-1 420bar 4 spirāles everzaļš

Description

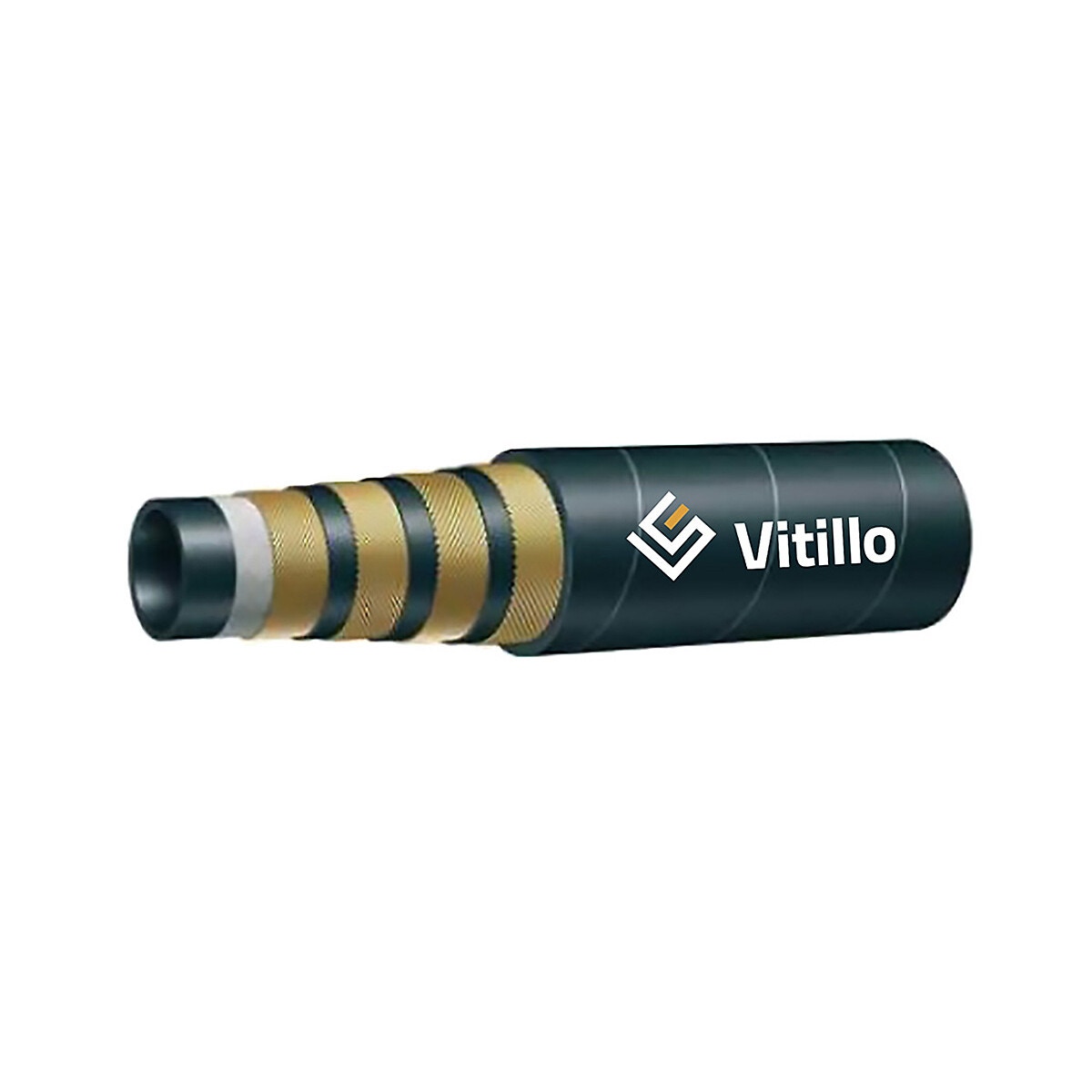

Vitillo Evergreen R15 hydraulic hose | SAE 100 R15 / ISO 3862 R15 | reinforcement 4 high tensile steel spirals | inner surface is oil resistant synthetic rubber | outer surface is black synthetic rubber with high resistance to abrasion, to flame, to oils and to weather conditions (MSHA approved) | operating temperature -40…+120°C | applications: for very high pressure hydraulic applications | nominal size -16 | hose DN 25 | inner Ø 1" | inner Ø 25.4 mm | outer Ø 38,2 mm | operating pressure 420 bar | explosion pressure 1680 bar | bending radius 267 mm | weight 2,1 kg/m

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (mm): 25.00 | Hose inner Ø (inch): 1" | Package length (cm): 100 | Package width (cm): 3.8 | Package height (cm): 3.8 | Gross weight (kg): 1.300000 | EAN: 6418914969919
