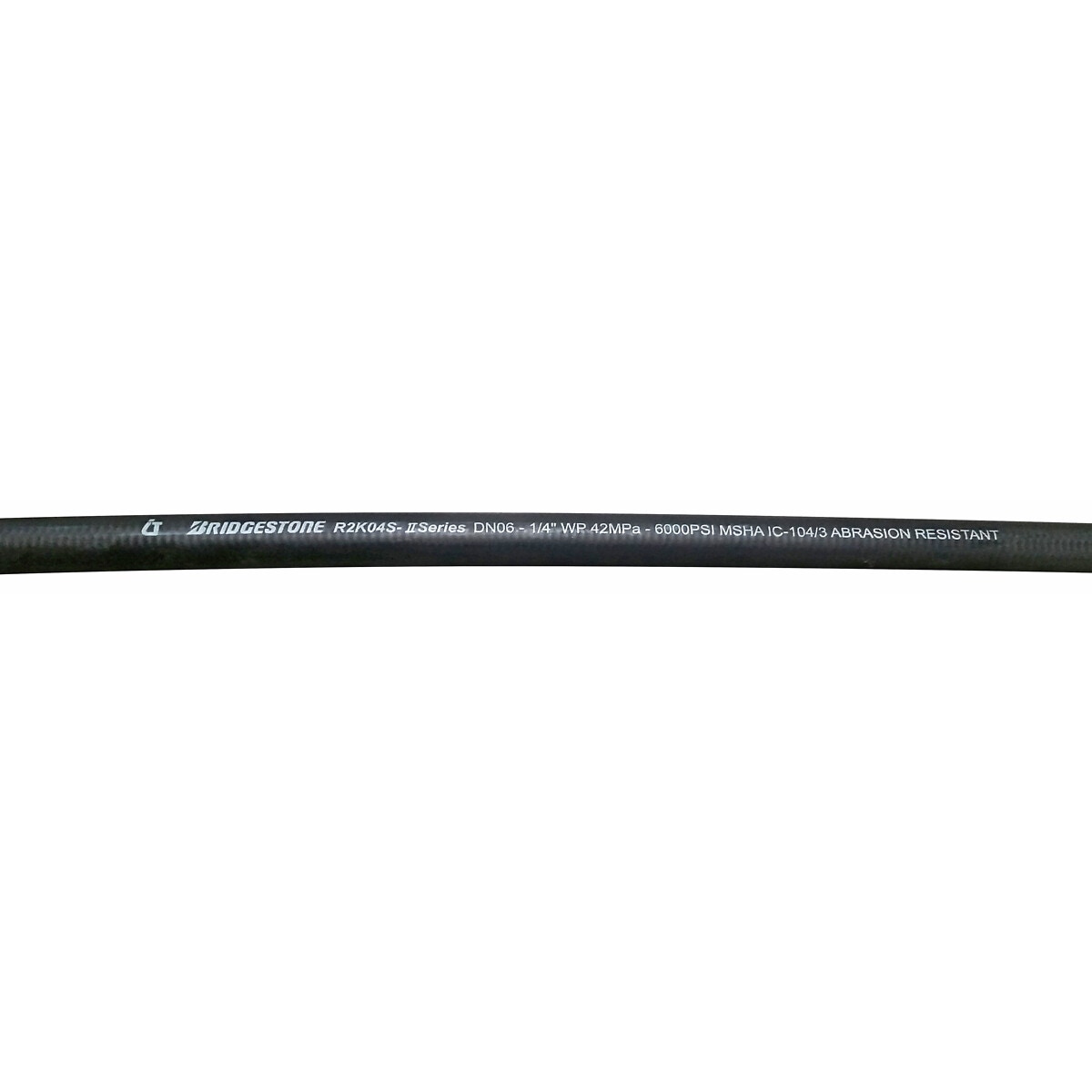

Hidrauliskā šļūtene 2sc-1/4 420bar bridgestone

Description

Bridgestone R2K | EN 857 2SC / DIN 20022-2SC | reinforcement 2 high tensile steel braid | tube oil resistant synthetic rubber | cover weather and oil resistant synthetic rubber (MSHA approved) | operating temperature -40…+100 °C, temporarily +120 °C | nominal size -04 | hose DN 6 | inner Ø 1/4" | inner Ø 6.4 mm | outer Ø 14,9 mm | operating pressure 420 bar | explosion pressure 1680 bar | bending radius 50 mm | weight 0.30 kg/m | P390004, swaging diameter 18.6 mm

Attributes

Hose inner Ø (mm): 6 | Hose inner Ø (mm): 6.00 | Hose inner Ø (inch): 1/4" | Package length (cm): 100 | Package width (cm): 1.5 | Package height (cm): 1.5 | Gross weight (kg): 0.320000 | EAN: 6418914896116
