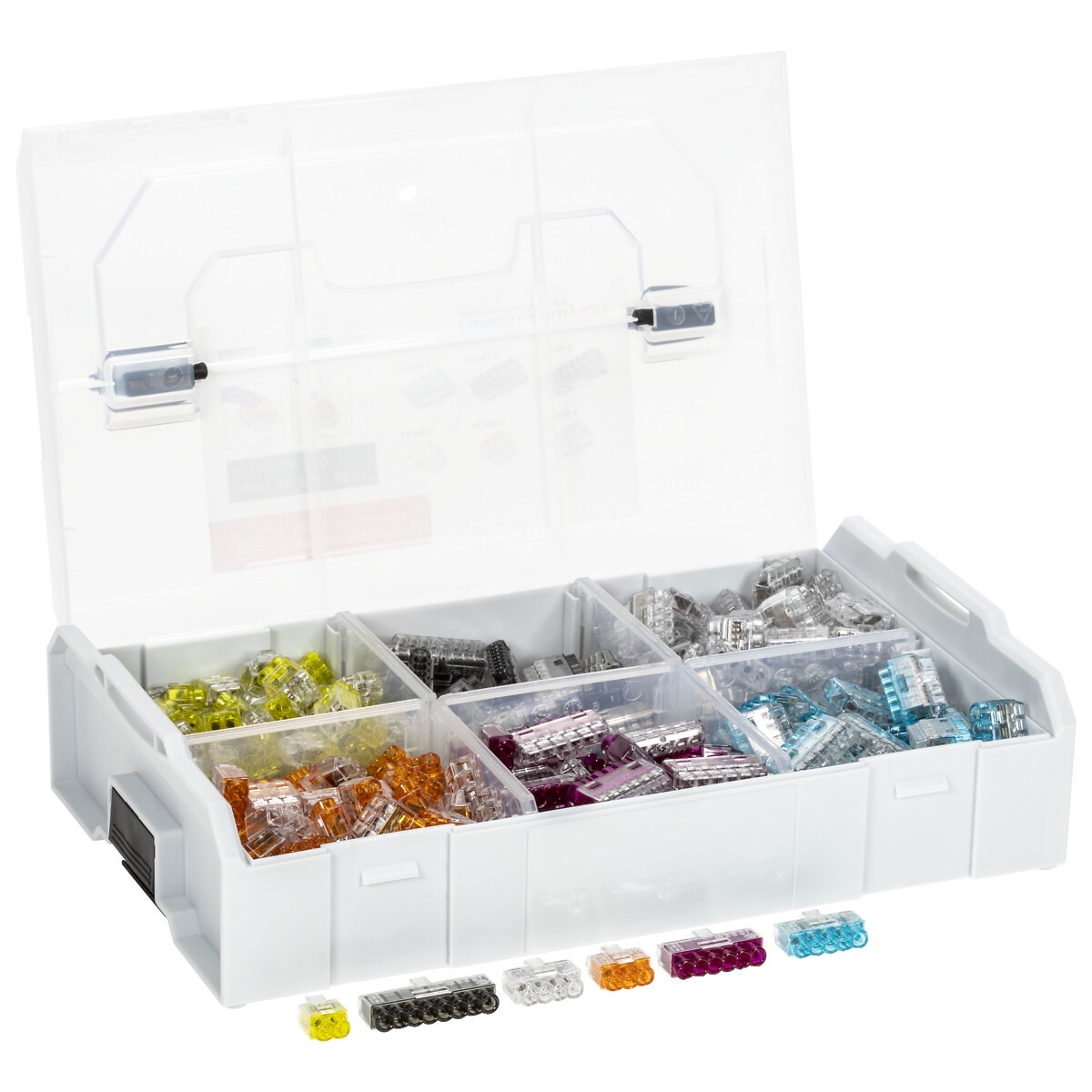

Helacon vadu savienotāju komplekts ML/MK, 350 gab.
179 €
✓ Pieejams
Description
HelaCon Plus Mini wire connectors for 0.5 to 2.5 mm² for solid and 1.0 to 2.5 mm² for stranded wires | use in all electrical installations, junction boxes, control panels and alarm systems | space saving design | dubble spring technology provides for a low insertion force and a reliable connection | correct installation can be visually checked through transparent housing | different colour codes for easy identification of size | separate installation hole and double springs for each wire | material polycarbonate | halogen-free | flammability rating UL94 V0 | temperature range -30…+85 °C | 2006/65/EC, ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, DIN EN 60998-2-2:2005-03, EN 60998-2-2:2004, ENEC, NF EN 60695-2-10 (2013), NF EN 60695-2-11 (2014) | 100 pcs 2 conductors | 80 pcs 3 conductors | 60 pcs 4 conductors | 50 pcs 5 conductors | 40 pcs 6 conductors | 20 pcs 8 conductors
Attributes
Package length (cm): 15.5 | Package width (cm): 26 | Package height (cm): 6.1 | Gross weight (kg): 1.030000 | EAN: 4031026556994
