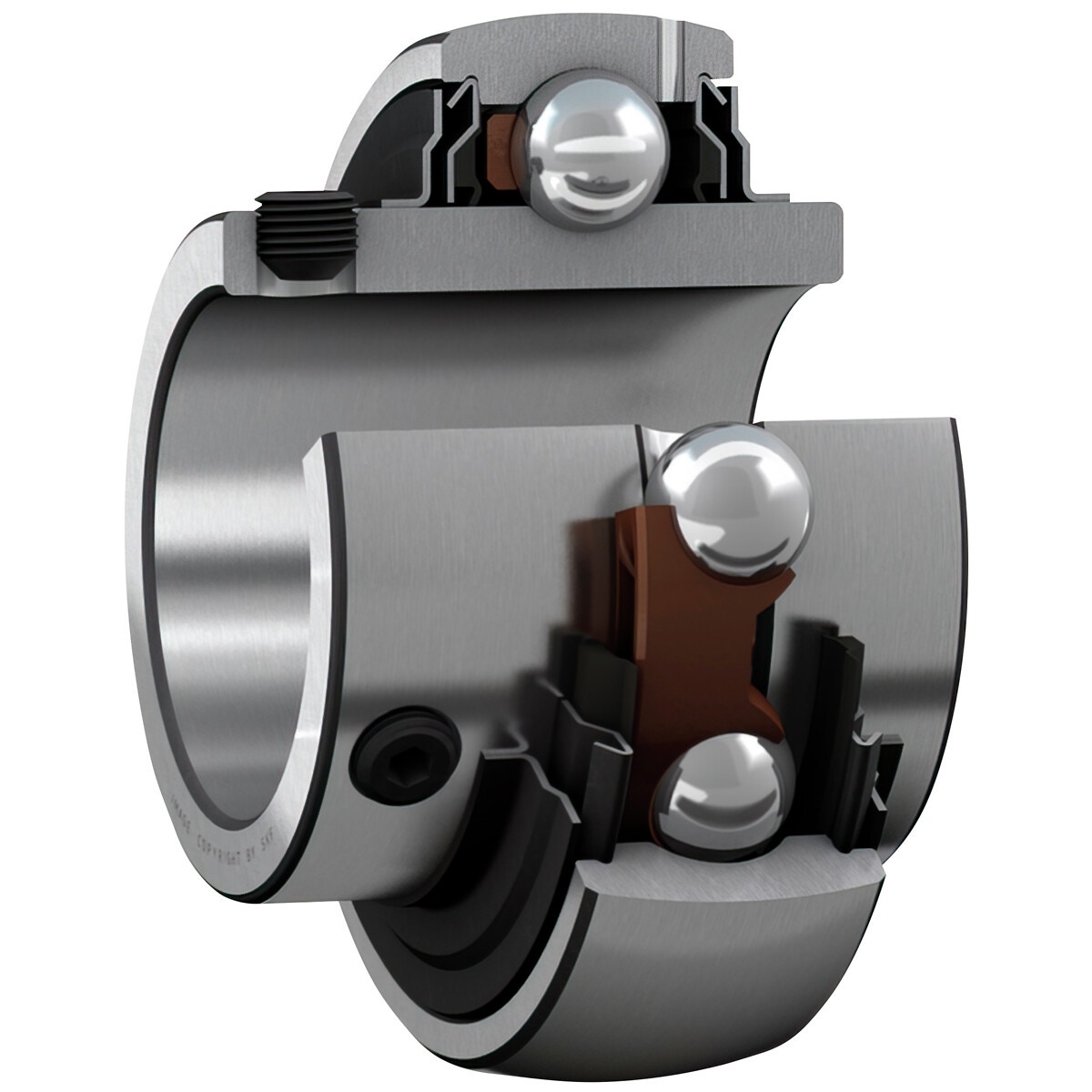

Gultņu priekš ucf 206/h, ucfl 206/h, ucp 206/h, ucfc
50 €
✓ Pieejams
Description
bore diameter (d) 30 mm | outer diameter (D) 62 mm | inner ring width (B) 38.1 mm | outer ring width (C) 18 mm | outer diameter, inner ring (d1) 39.7 mm | distance from locking device side face to thread centre (B4) 5 mm | chamfer dimension (r1,2) min. 0.6 mm | distance from locking device side face to raceway centre (s1) 22.2 mm | basic dynamic load rating (C) 19.5 kN | basic static load rating (C0) 11.2 kN | fatigue load limit (Pu) 0,475 kN | limiting speed 6300 r/min | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 30 | Inner diameter Ø (mm): 30.00 | Outer diameter Ø (mm): 62 | Outer diameter Ø (mm): 62.00 | Package length (cm): 6.4 | Package width (cm): 6.6 | Package height (cm): 4.3 | Gross weight (kg): 0.310000 | EAN: 7316577027542
