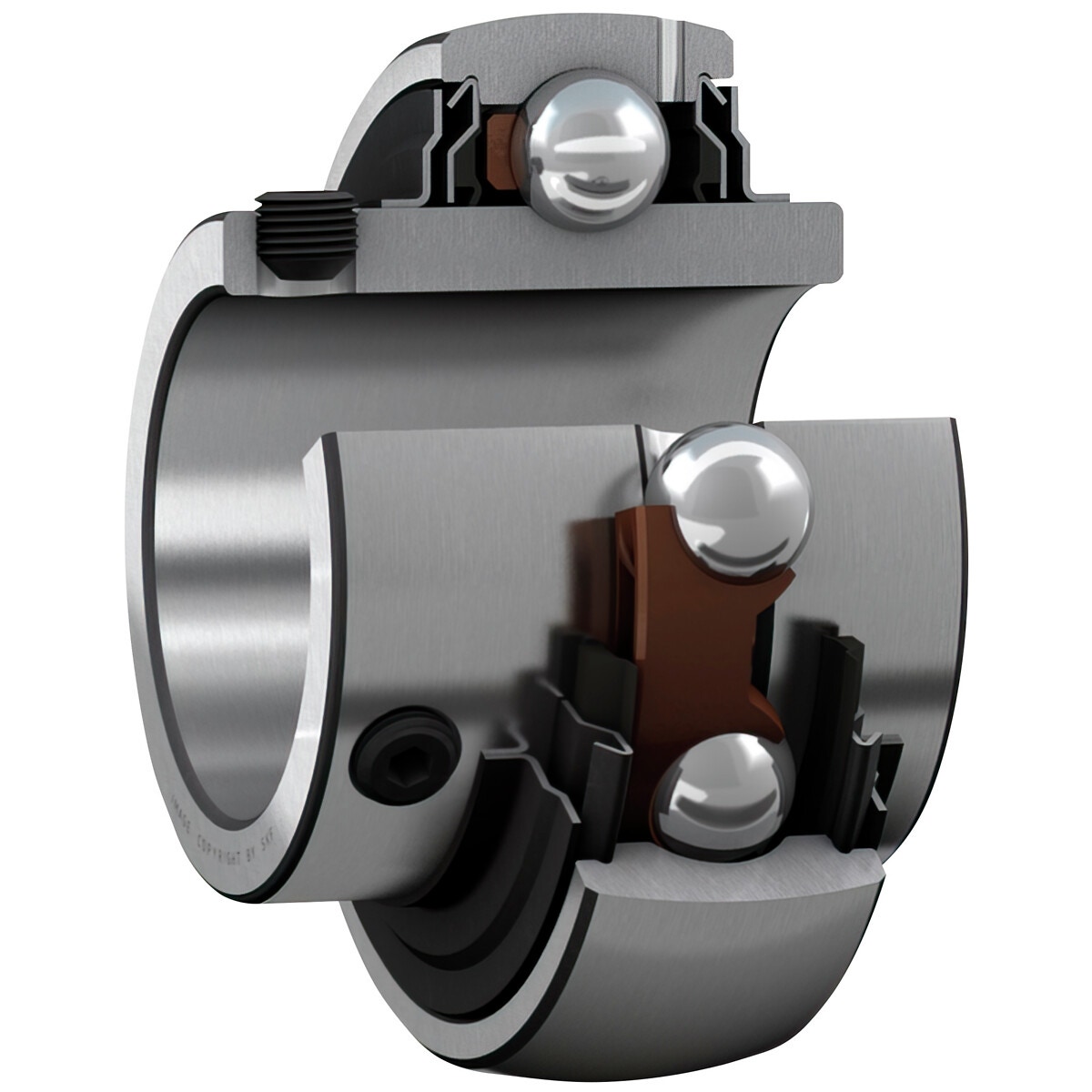

Gultņu priekš ucf 205/h, ucfl 205/h, ucpa 205/h, ucp 205/h, ucp
42 €
✓ Pieejams
Description
bore diameter (d) 25 mm | outer diameter (D) 52 mm | inner ring width (B) 34.1 mm | outer ring width (C) 15 mm | outer diameter, inner ring (d1) 33.74 mm | distance from locking device side face to thread centre (B4) 5 mm | chamfer dimension (r1,2) min. 0.6 mm | distance from locking device side face to raceway centre (s1) 19.8 mm | basic dynamic load rating (C) 14 kN | basic static load rating (C0) 7.8 kN | fatigue load limit (Pu) 0,335 kN | limiting speed 7000 r/min | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 25 | Inner diameter Ø (mm): 25.00 | Outer diameter Ø (mm): 52 | Outer diameter Ø (mm): 52.00 | Package length (cm): 5.3 | Package width (cm): 5.5 | Package height (cm): 3.8 | Gross weight (kg): 0.196000 | EAN: 7316577030061
