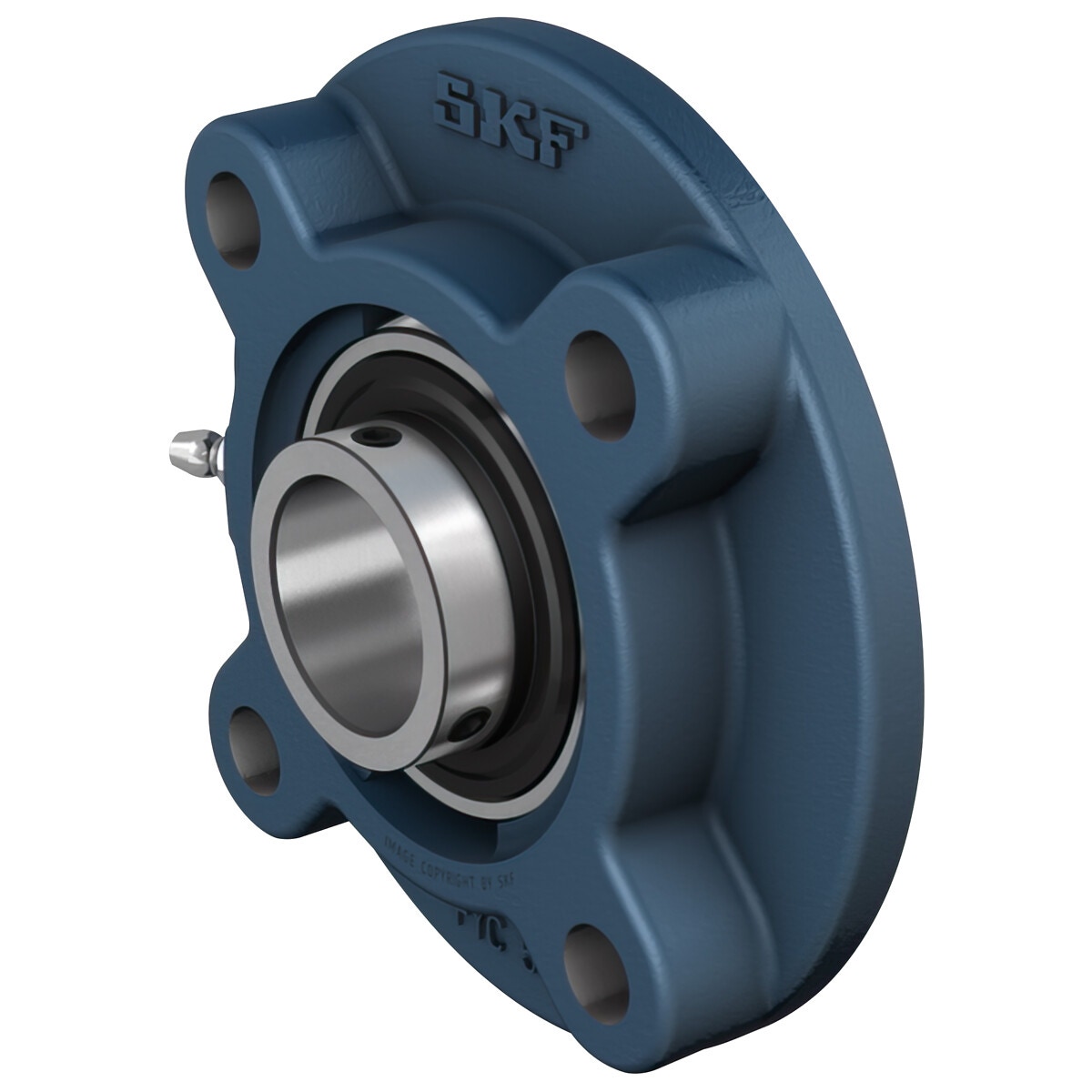

GULTŅU BLOKS 45 MM APKAKLE SKF

Description

bore diameter (d) 45 mm | outer diameter, inner ring (d1) 56.8 mm | housing width (A) 37.5 mm | flange width (A1) 14 mm | height of spherical seat centre (A3) 12 mm | inner ring width (B) 49.2 mm | distance from locking device side face to thread centre (B4) 8 mm | external diameter (Db) 106.1 mm | centering diameter (Dc) 105 mm | distance between attachment bolts (J) 132 mm | width of attachment bolt hole (J1) 93.3 mm | overall width (L) 160 mm | length of attachment bolt hole (N) 16 mm | distance from locking device side face to raceway centre (s1) 30.2 mm | overall unit width (T) 40.2 mm | housing thread for the grease fitting (RG) 1/4-28 UNF | axial position of the housing thread (R1) 21 mm | diameter of head sphere of grease fitting (DN) 6.5 mm | hexagonal key size for the grease fitting (SWN) 7 mm | thread of the grease fitting (GN) 1/4-28 SAE-LT | basic dynamic load rating (C) 33.2 kN | basic static static load rating (C0) 21.6 kN | fatigue load limit (Pu) 0.915 kN | limiting speed 4300 r/min

Attributes

Inner diameter Ø (mm): 45 | Inner diameter Ø (mm): 45.00 | Package length (cm): 17.4 | Package width (cm): 18 | Package height (cm): 7.2 | Gross weight (kg): 2.743000 | EAN: 7316570516449
