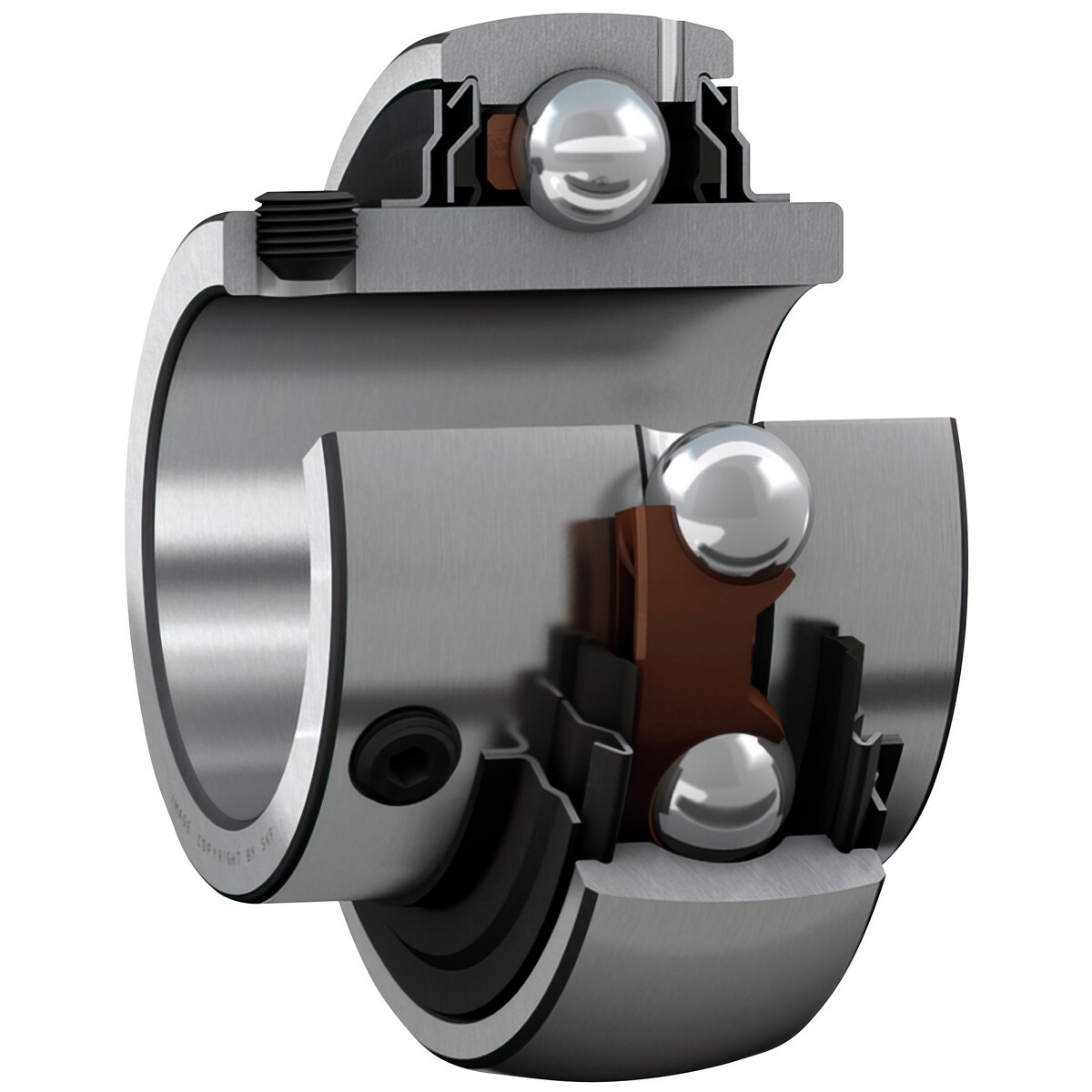

Gultņi priekš ucf 211/h, ucp 211/h skf
106 €
✓ Pieejams
Description
bore diameter (d) 55 mm | outer diameter (D) 100 mm | inner ring width (B) 55.6 mm | outer ring width (C) 25 mm | outer diameter, inner ring (d1) 69.06 mm | distance from locking device side face to thread centre (B4) 9 mm | chamfer dimension (r1,2) min. 1 mm | distance from locking device side face to raceway centre (s1) 33.4 mm | basic dynamic load rating (C) 43.6 kN | basic static load rating (C0) 29 kN | fatigue load limit (Pu) 1.25 kN | limiting speed 3600 r/min | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 55 | Inner diameter Ø (mm): 55.00 | Outer diameter Ø (mm): 100 | Outer diameter Ø (mm): 100.00 | Package length (cm): 10.3 | Package width (cm): 10.6 | Package height (cm): 6.4 | Gross weight (kg): 1.051000 | EAN: 7316577032218
