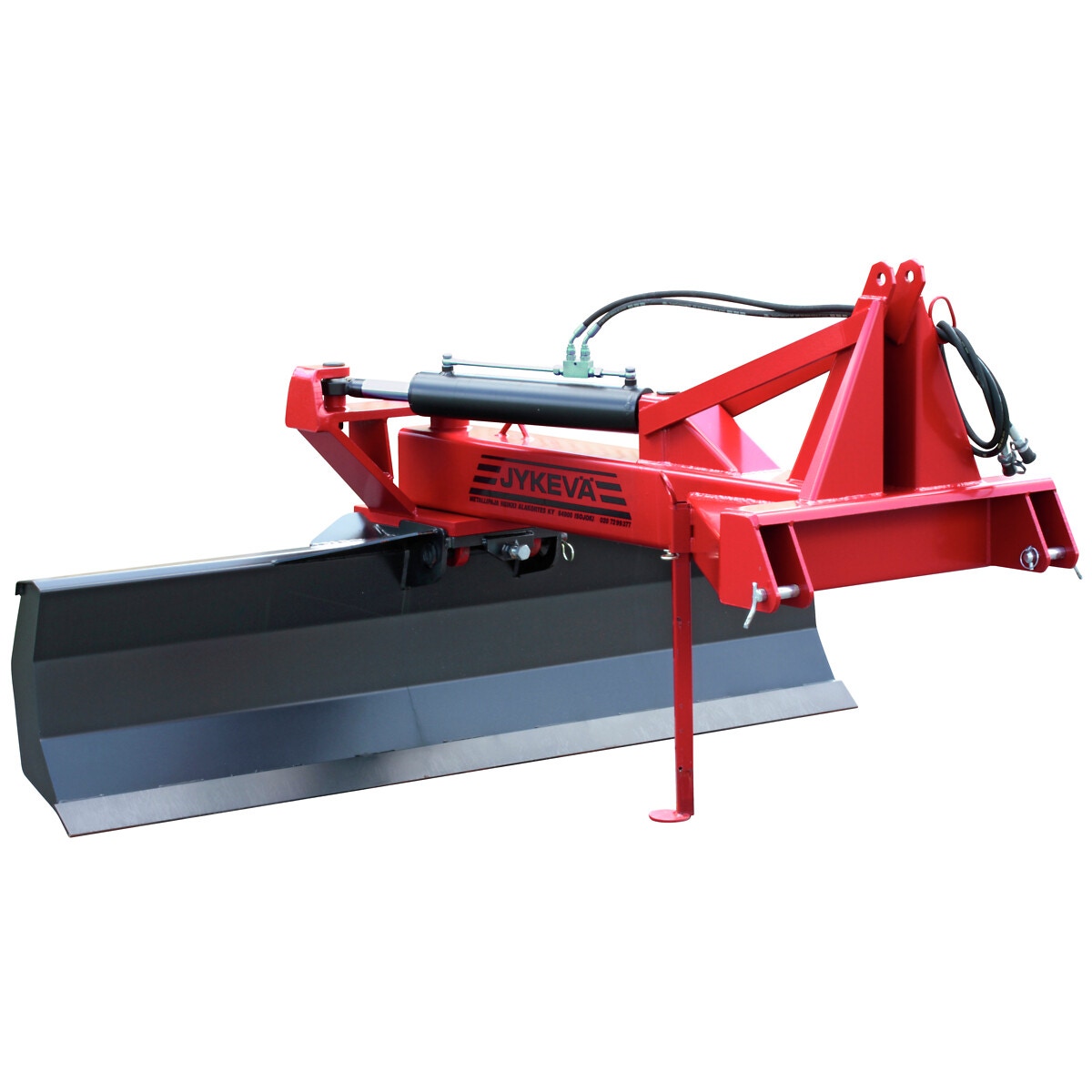

Graidera asmens 250x60cm hidrauliskais asmens h10

Description

the board has a very rigid housing construction | quick mounting, attaching other accessories is quick and easy | working width 250 cm | board height 600 mm | body beam size 200 x 200 x 8 mm | beam length 1700 mm | thickness 5-6 mm | reversible blade: hydraulic | rotary actuator 80/45 mm, tube 7,5 mm | rotary actuator lock valve: yes | the axis of rotation 80 mm | reversible beam: no | blade 10 x 100 mm smooth | weight 540 kg | recommended for 70-100 hp tractors | body material S355 | support wheel set JYV01, installation kit JYV01K is required | drain plow JYV07, replaces the board

Attributes

Package length (cm): 0 | Package width (cm): 0 | Package height (cm): 0 | Gross weight (kg): 540.000000 | EAN: 6418914834118
