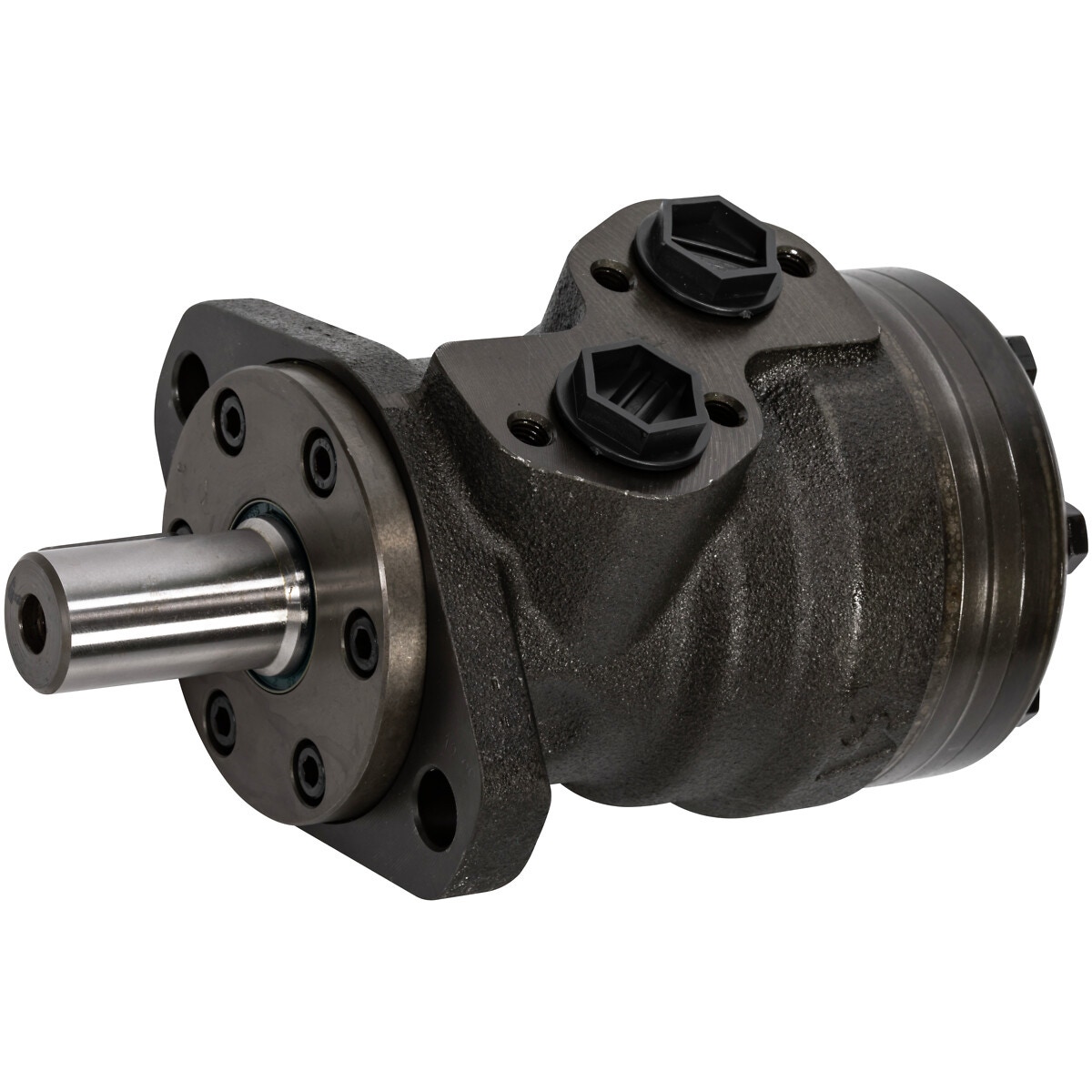

GEROTORMOTOR HMR 80

Description

25 mm straight shaft, parallel key A8x7x32 DIN6885 | main ports G 1/2" | drain port G 1/4" | Danfoss OMR exchangeable | combines high performance with compact size | applications: for example agricultural machinery, sand spreaders, hydraulic saws, slurry pumps | displacement 80.3 cm³/r | max. speed continuous 750 / intermittent 940 rpm | max. torque continuous 200 / intermittent 270 Nm | max. output continuous 12.5 / intermittent 15 kW | max. pressure continuous 175 / intermittent 200 / peak 225 bar | max. differential pressure continuous 70 / intermittent 100 / peak 210 bar | max. oil flow continuous 60 / intermittent 75 l/min | A 143 mm | C 51,3 mm | weight 6.9 kg

Attributes

Shaft: 25 mm straight shaft | Thread: G 1/2" -14 | Package length (cm): 28.2 | Package width (cm): 12.6 | Package height (cm): 14.7 | Gross weight (kg): 7.392000 | EAN: 6418914190283
